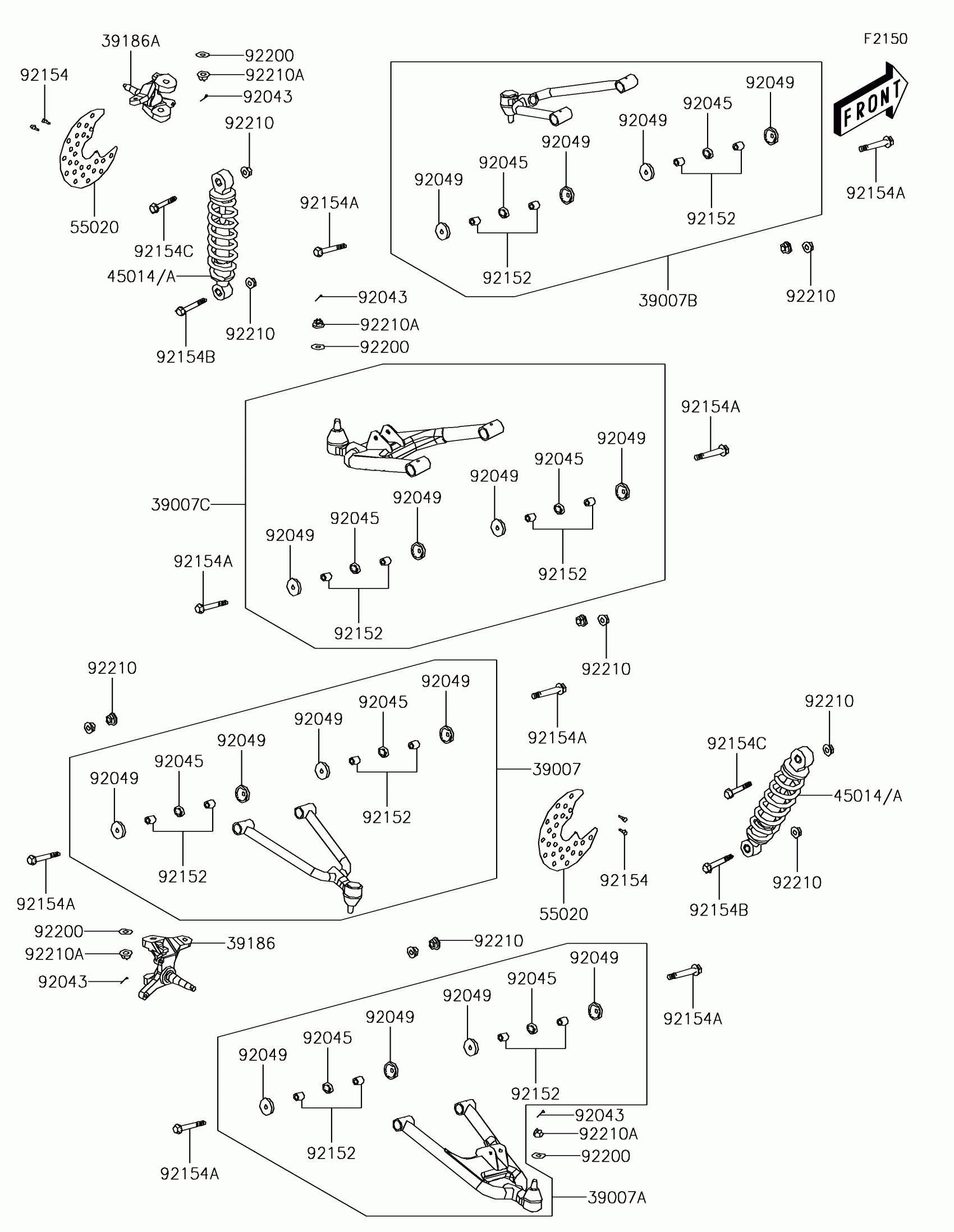

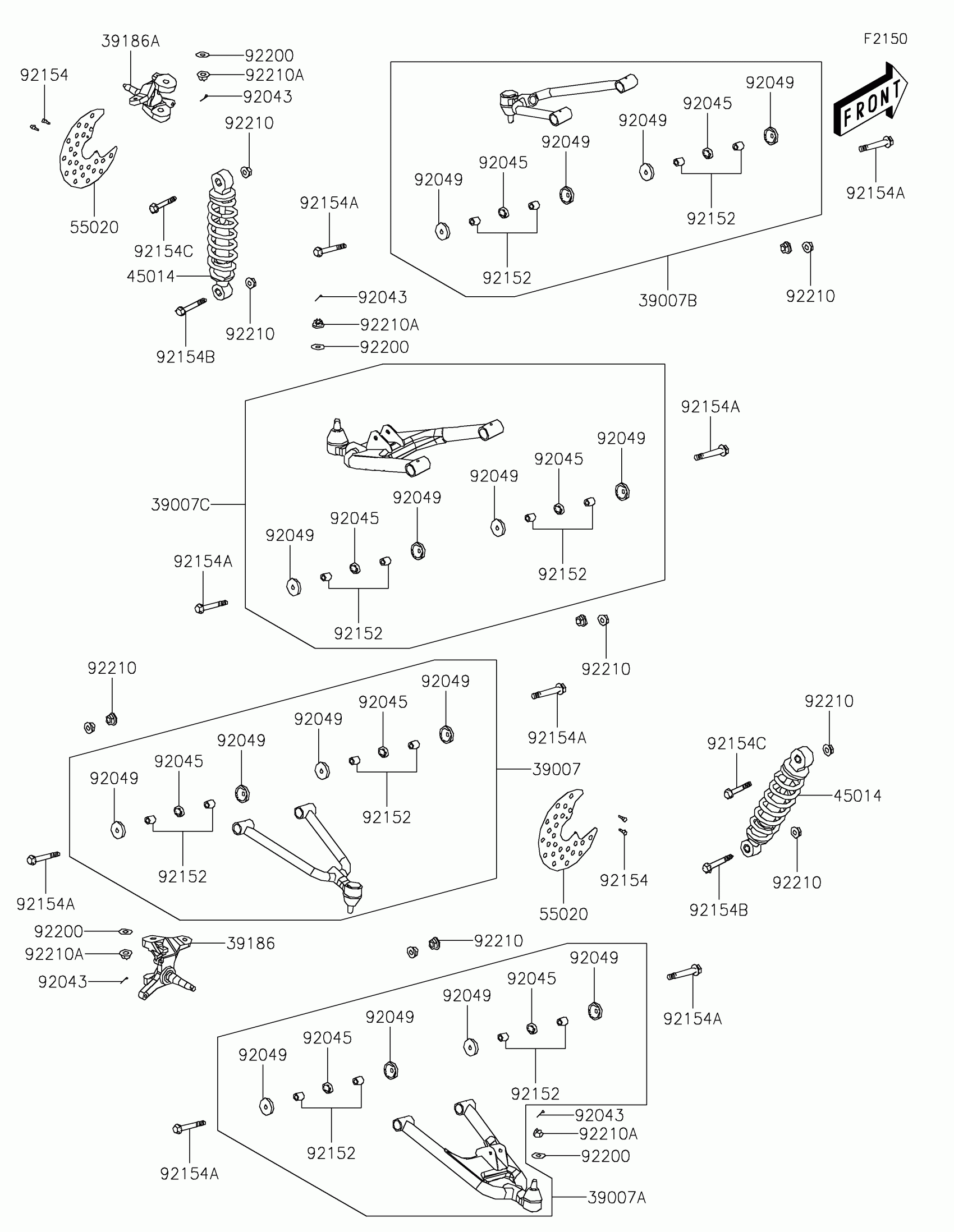

Kawasaki BRUTE FORCE® 300 Suspension Diagram

Description

Price

39007

ARM-SUSP,FR,UPP,RH,BLACK

39007-Y003-945

$154.36

39007A

ARM-SUSP,FR,LWR,RH,BLACK

39007-Y004-945

$183.13

39007B

ARM-SUSP,FR,UPP,LH,BLACK

39007-Y005-945

$154.36

39007C

ARM-SUSP,FR,LWR,LH,BLACK

39007-Y006-945

$196.27

39186

KNUCKLE,RH

39186-Y003

$154.36

39186A

KNUCKLE,LH

39186-Y004

$154.36

45014A

SHOCKABSORBER,FR,GREEN

45014-Y004-966

$239.66

55020

GUARD,BRAKE DISK

55020-Y007

$8.92

92043

PIN,3X25

92043-Y009

$0.78

92045

BEARING-BALL,6000

92045-Y026

$13.32

92049

SEAL-OIL,SEAL-OIL,18X26X4

92049-Y018

$3.39

92152

COLLAR

92152-Y023

$6.87

92154

BOLT,FLANGE,6X10

92154-Y038

$0.93

92154A

BOLT,FLANGE,10X57

92154-Y039

$2.95

92154B

BOLT,FLANGE,10X50

92154-Y040

$5.61

92154C

BOLT,FLANGE,10X40

92154-Y041

$5.61

92200

WASHER,12X26X2.3

92200-Y046

$4.44

92210

NUT,10MM

92210-Y009

$2.51

92210A

NUT,12MM

92210-Y023

$3.54
