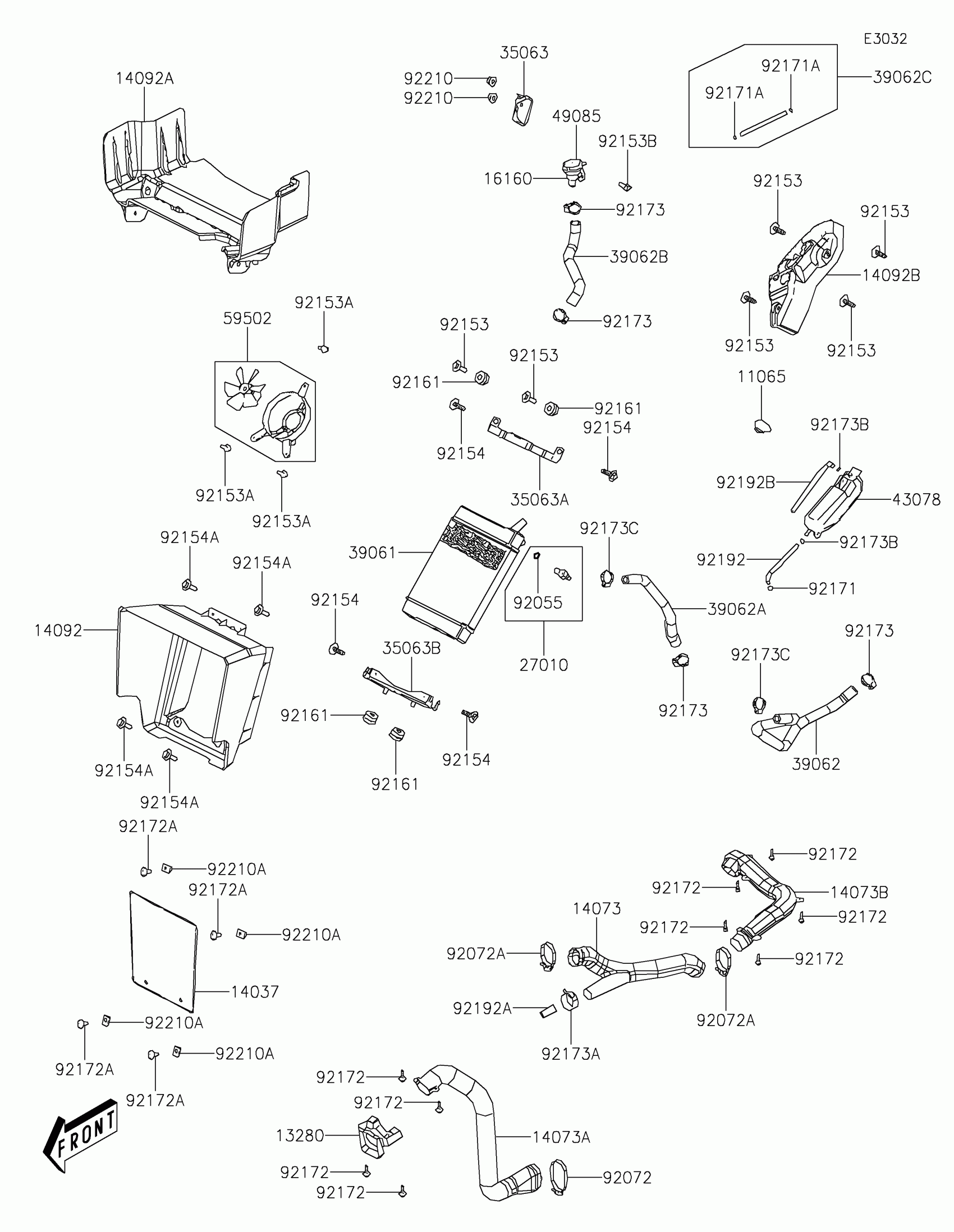

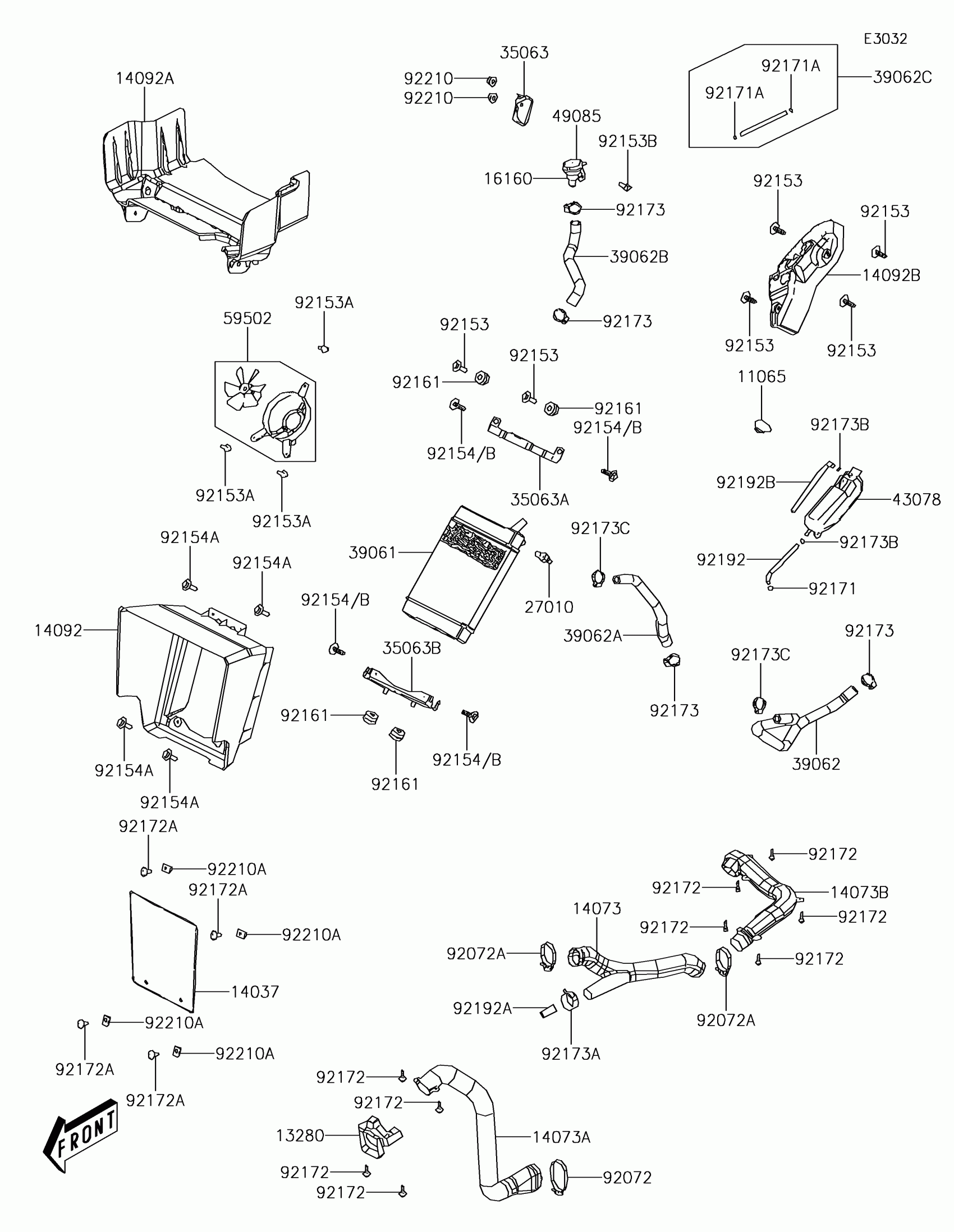

Kawasaki BRUTE FORCE® 300 Radiator Diagram

#

Description
Price

11065

CAP,RESERVE TANK

11065-Y021

$2.85

13280

HOLDER,DUCT

13280-Y017

$13.14

14037

SCREEN

14037-Y003

$29.38

14073

DUCT

14073-Y004

$30.77

14073A

DUCT

14073-Y005

$56.57

14073B

DUCT

14073-Y006

$31.19

14092

COVER,RADIATOR,S.BLACK

14092-Y019-933

$41.97

14092A

COVER,RADIATOR,S.BLACK

14092-Y020-933

$19.85

14092B

COVER,MASTER CYLINDER

14092-Y021

$13.53

16160

BODY,PRESSURE CAP

16160-Y003

$27.88

27010

SWITCH,THERMOSTAT

27010-Y007

$58.13

35063

STAY,CAP-ASSY

35063-Y014

$6.39

35063A

STAY,RADIATOR,UPP

35063-Y015

$25.07

35063B

STAY,RADIATOR,LWR

35063-Y016

$29.18

39061

RADIATOR-ASSY

39061-Y001

$164.69

39062

HOSE-COOLING

39062-Y002

$18.22

39062A

HOSE-COOLING

39062-Y003

$22.68

39062B

HOSE-COOLING

39062-Y004

$13.92

39062C

HOSE-COOLING

39062-Y005

$7.29

43078

RESERVOIR,TANK

43078-Y002

$47.95

49085

CAP-ASSY-PRESSURE

49085-Y001

$26.12

59502

FAN-ASSY

59502-Y001

$126.91

92072

BAND

92072-Y009

$3.98

92072A

BAND

92072-Y010

$5.61

92153

BOLT,6X16

92153-Y018

$1.00

92153A

BOLT,6X20

92153-Y019

$1.00

92153B

BOLT,FLANGE,6X12

92153-Y023

$0.78

92154

BOLT,6X12

92154-Y032

$1.14

92154A

BOLT,5X12

92154-Y049

$3.27

92161

DAMPER

92161-Y006

$1.24

92171

CLAMP

92171-Y011

$0.68

92171A

CLAMP

92171-Y017

$0.67

92172

SCREW,TAPPING,5X16

92172-Y020

$1.23

92172A

SCREW,4MM

92172-Y049

$1.61

92173

CLAMP

92173-Y005

$3.27

92173A

CLAMP

92173-Y024

$8.44

92173B

CLAMP

92173-Y025

$1.92

92173C

CLAMP

92173-Y026

$1.49

92192

TUBE

92192-Y018

$37.97

92192A

TUBE,DRAIN

92192-Y019

$6.39

92192B

TUBE,DRAIN

92192-Y023

$19.85

92210

NUT,6MM

92210-Y026

$1.24

92210A

NUT,4MM

92210-Y054

$3.27
