2016 Kawasaki Brute Force® 300 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2016 Kawasaki Brute Force® 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

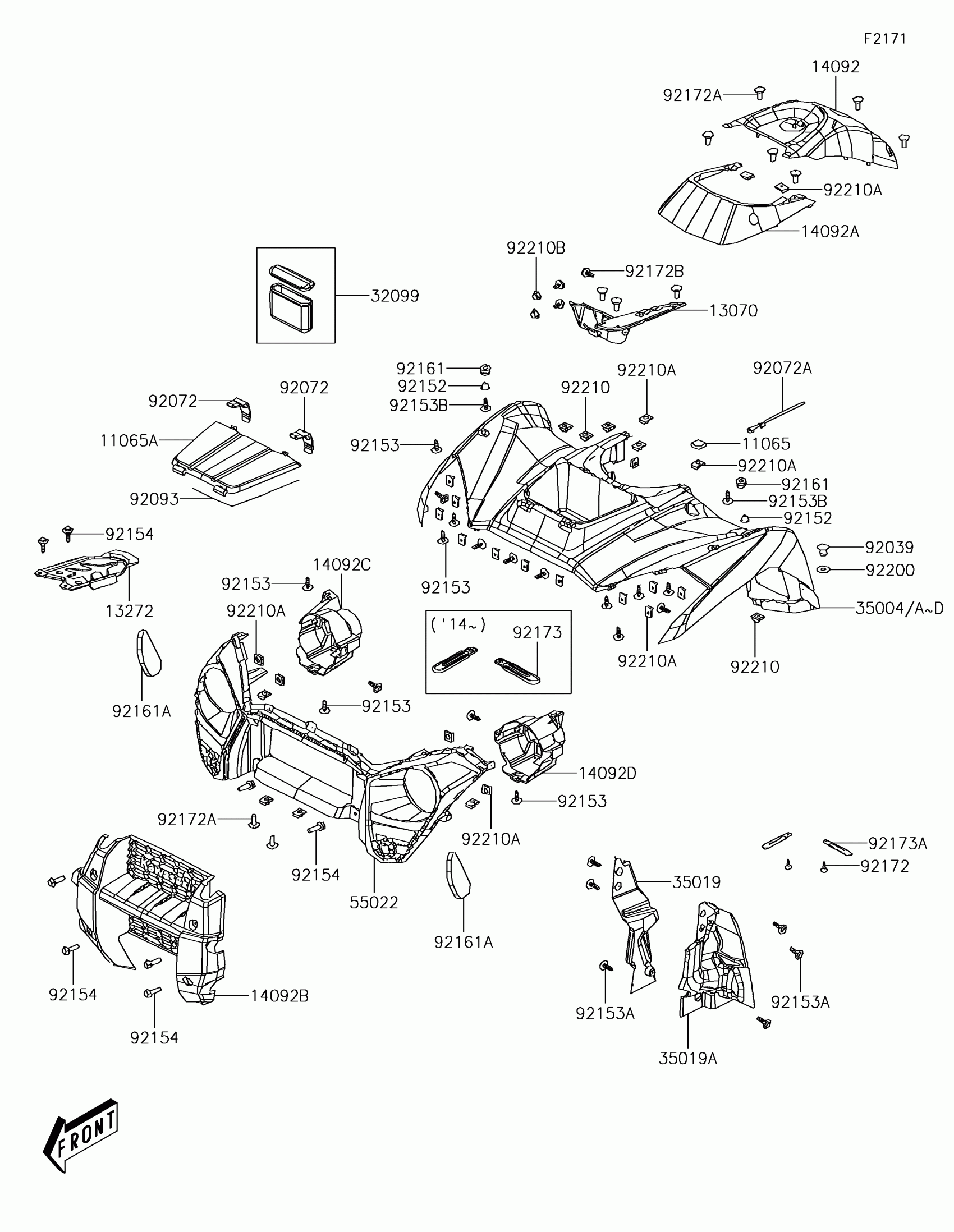

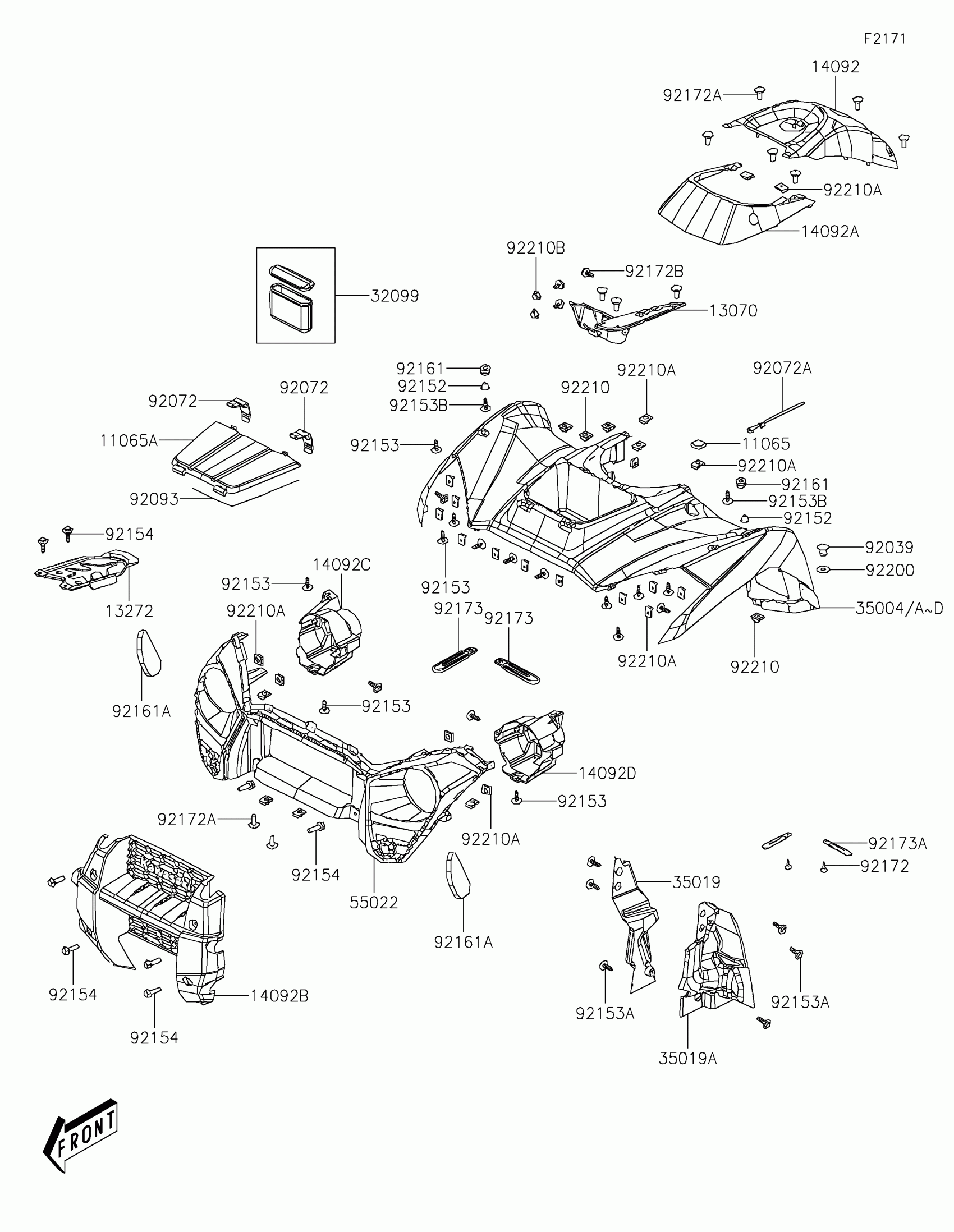

2016 Kawasaki Brute Force® 300 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,TOOL BOX

11065-Y009

1
Out of stock

11065A

CAP,STORAGE BOX,S.BLACK

11065-Y010-933

1
Out of stock

13070

GUIDE,COVER SHIFT LEVER,BLACK

13070-Y003-933

1
Out of stock

13272

PLATE,S.BLACK

13272-Y010-933

1

$10.80

In stock

14092

COVER,S.BLACK

14092-Y008-933

1
Out of stock

14092A

COVER,FRONT FENDER,S.BLACK

14092-Y009-933

1
Out of stock

14092B

COVER,FRONT BUMPER,S.BLACK

14092-Y010-933

1
Out of stock

14092C

COVER,RIGHT HEAD LAMP,S.BLACK

14092-Y011-933

1
Out of stock

14092D

COVER,LEFT HEAD LAMP,S.BLACK

14092-Y012-933

1
Out of stock

32099

CASE,OWNERS MANUAL

32099-Y006

1
Out of stock

35004

FENDER-FRONT,B.WHITE

35004-Y002-932

1
Out of stock

35004A

FENDER-FRONT,S.BLACK

35004-Y002-933

1
Out of stock

35019

FLAP,RH,S.BLACK

35019-Y001-933

1
Out of stock

35019A

FLAP,LH,S.BLACK

35019-Y002-933

1
Out of stock

55022

COVER-HEAD LAMP,S.BLACK

55022-Y001-933

1
Out of stock

92039

RIVET,3.2X9.8

92039-Y001

1
Out of stock

92072

BAND,CAP STORAGE BOX

92072-Y006

1
Out of stock

92072A

BAND

92072-Y007

1
Out of stock

92093

SEAL

92093-Y012

1
Out of stock

92152

COLLAR

92152-Y018

1
Out of stock

92153

BOLT,5X16

92153-Y013

1
Out of stock

92153A

BOLT,6X16

92153-Y018

1
Out of stock

92153B

BOLT,6X20

92153-Y019

1
Out of stock

92154

BOLT,FLANGE,6MM

92154-Y023

1
Out of stock

92161

DAMPER

92161-Y011

1

$1.92

In stock

92161A

1

$1.49

In stock

92172

SCREW,4X12

92172-Y019

1
Out of stock

92172A

SCREW,5X16

92172-Y039

1
Out of stock

92172B

SCREW,6X20

92172-Y041

1
Out of stock

92173

CLAMP

92173-Y004

1
Out of stock

92173A

CLAMP,2X70

92173-Y011

1
Out of stock

92200

WASHER,3MM

92200-Y017

1
Out of stock

92210

NUT,6MM

92210-Y011

1
Out of stock

92210A

NUT,5MM

92210-Y016

1
Out of stock

92210B

NUT

92210-Y031

1
Out of stock
