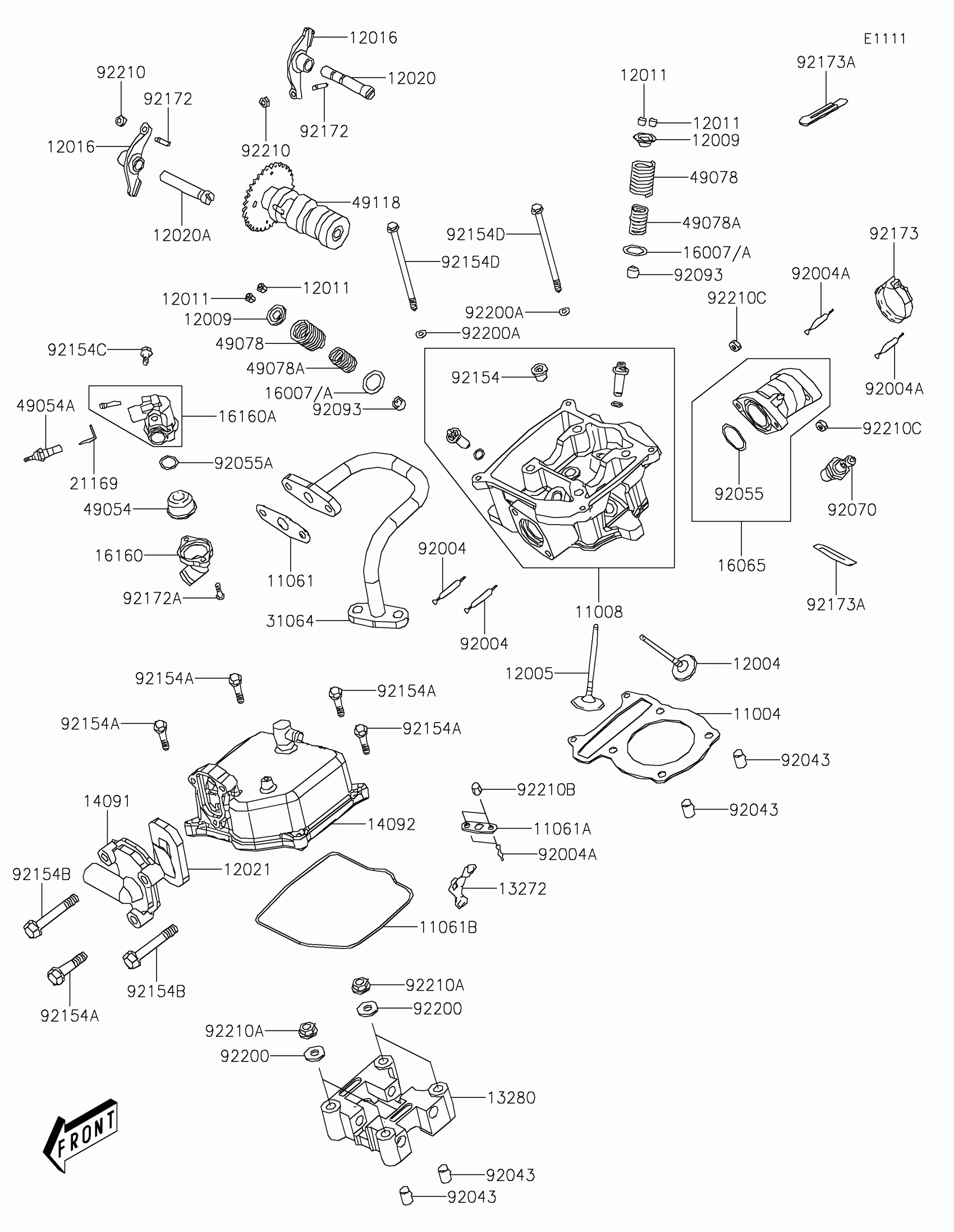

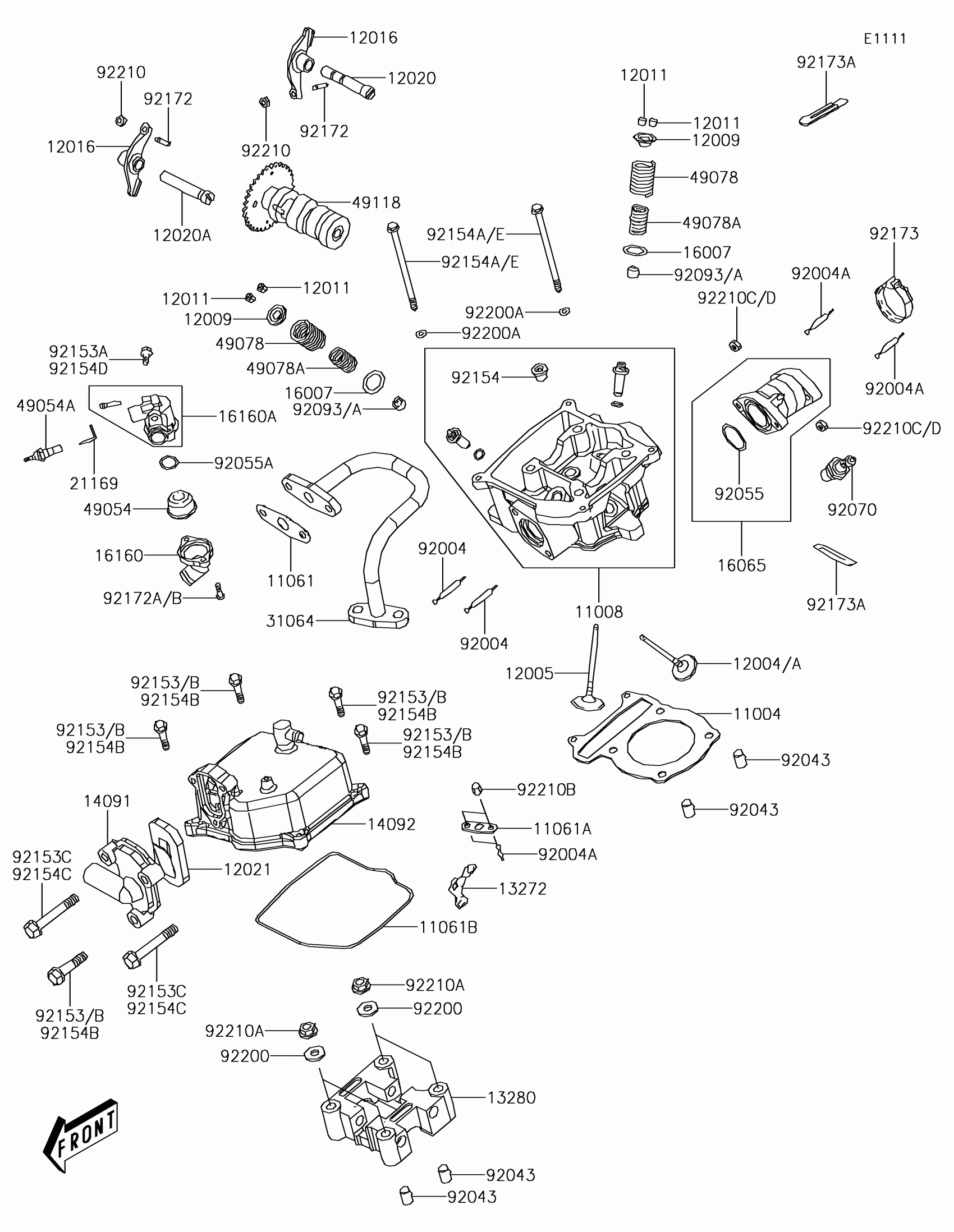

Kawasaki BRUTE FORCE® 300 Cylinder Head Diagram

#

Description
Price

11004

GASKET-HEAD

11004-Y003

$43.38

11008

HEAD-COMP-CYLINDER

11008-Y005

$352.61

11061

GASKET

11061-Y018

$1.23

11061A

GASKET

11061-Y020

$4.15

11061B

GASKET,CYLINDER HEAD COVER

11061-Y026

$33.26

12004A

VALVE-INTAKE

12004-Y005

$34.96

12005

VALVE-EXHAUST

12005-Y003

$51.83

12009

RETAINER-VALVE SPRING

12009-Y001

$4.27

12011

COLLET

12011-Y001

$6.14

12016

ARM-ROCKER

12016-Y003

$82.23

12020

SHAFT-ROCKER,IN

12020-Y005

$16.66

12020A

SHAFT-ROCKER,EX

12020-Y006

$12.37

12021

VALVE-ASSY-REED

12021-Y002

$25.10

13272

PLATE,STOPPER

13272-Y005

$23.10

13280

HOLDER,CAM SHAFT

13280-Y013

$45.38

14091

COVER,REED VALVE

14091-Y015

$5.25

14092

COVER,CYLINDER HEAD

14092-Y006

$107.04

16007

SEAT-SPRING

16007-Y001

$5.61

16065

HOLDER-CARBURETOR

16065-Y001

$58.10

16160

BODY,THERMOSTAT,LWR

16160-Y001

$23.10

16160A

BODY,THERMOSTAT,UPP

16160-Y002

$26.31

21169

TERMINAL,EARTH

21169-Y001

$3.27

31064

PIPE-COMP

31064-Y004

$29.18

49054

THERMOSTAT

49054-Y001

$53.49

49054A

THERMOSTAT

49054-Y002

$27.04

49078

SPRING-ENGINE VALVE,OUTER

49078-Y004

$4.65

49078A

SPRING-ENGINE VALVE,INNER

49078-Y005

$3.61

49118

CAMSHAFT-COMP

49118-Y003

$101.70

92004

STUD,8X40

92004-Y010

$3.27

92004A

STUD,6X28

92004-Y011

$1.32

92043

PIN,10X16

92043-Y013

$1.00

92055

RING-O,38.5X2

92055-Y014

$3.76

92055A

RING-O,17.8X1.9

92055-Y021

$1.32

92070

PLUG-SPARK,DPR 7EA-9(NGK)

92070-Y003

$2.63

92093A

SEAL

92093-Y025

$5.23

92154

BOLT,SEALING,12MM

92154-Y009

$5.19

92154B

BOLT,FLANGE,6X25

92154-Y130

$0.63

92154C

BOLT,FLANGE,6X40

92154-Y131

$1.08

92154D

BOLT,FLANGE,6X18

92154-Y132

$2.14

92154E

BOLT,FLANGE,6X110

92154-Y133

$4.44

92172

SCREW

92172-Y003

$3.98

92172B

SCREW,5X16

92172-Y067

$1.84

92173

CLAMP

92173-Y003

$4.61

92173A

CLAMP

92173-Y004

$1.92

92200

WASHER,8MM

92200-Y009

$1.11

92200A

WASHER,6MM

92200-Y024

$0.93

92210

NUT

92210-Y004

$1.11

92210A

NUT,8MM

92210-Y028

$0.68

92210B

NUT,6MM

92210-Y035

$2.07

92210D

NUT,HEX,6MM

92210-Y074

$2.14
