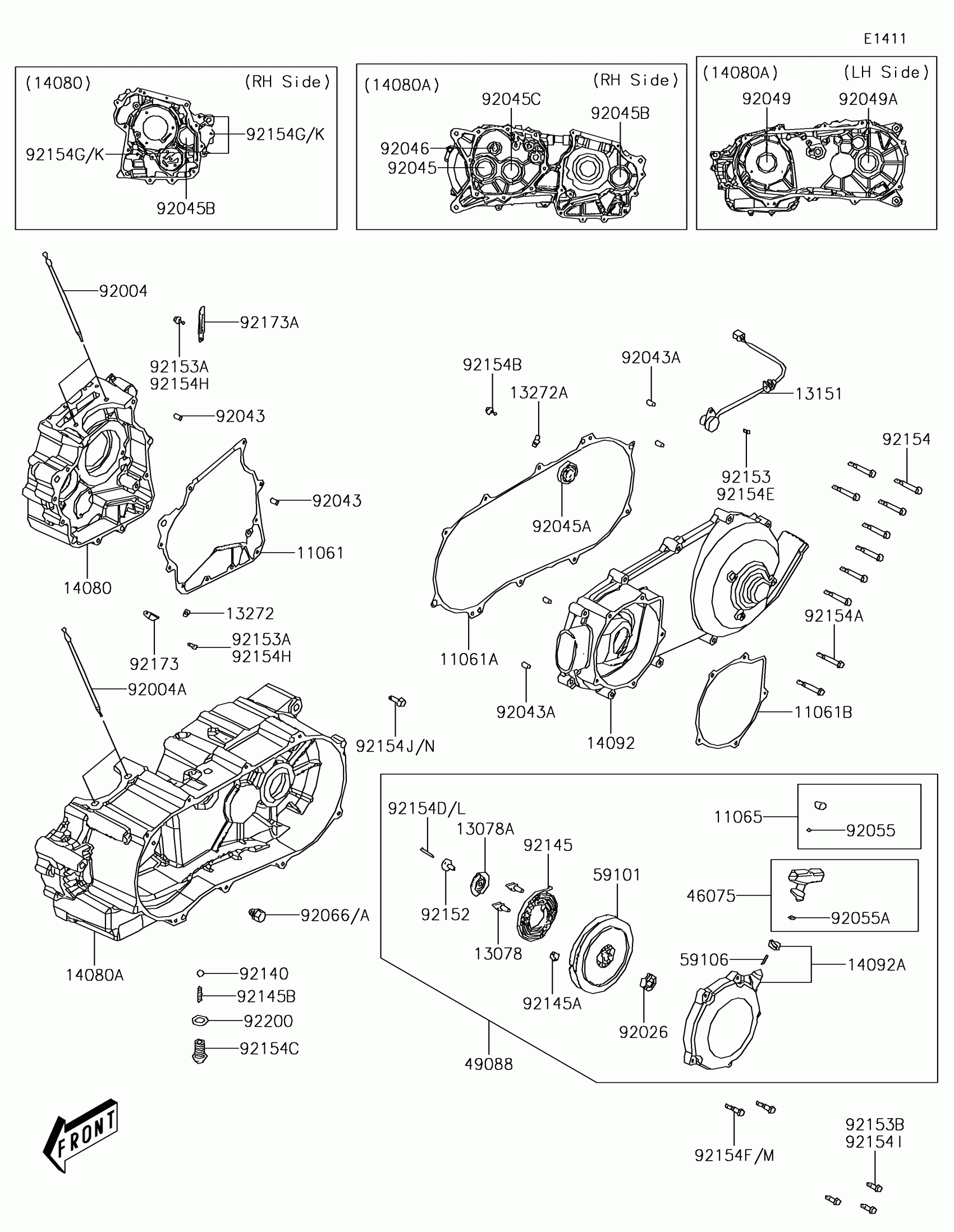

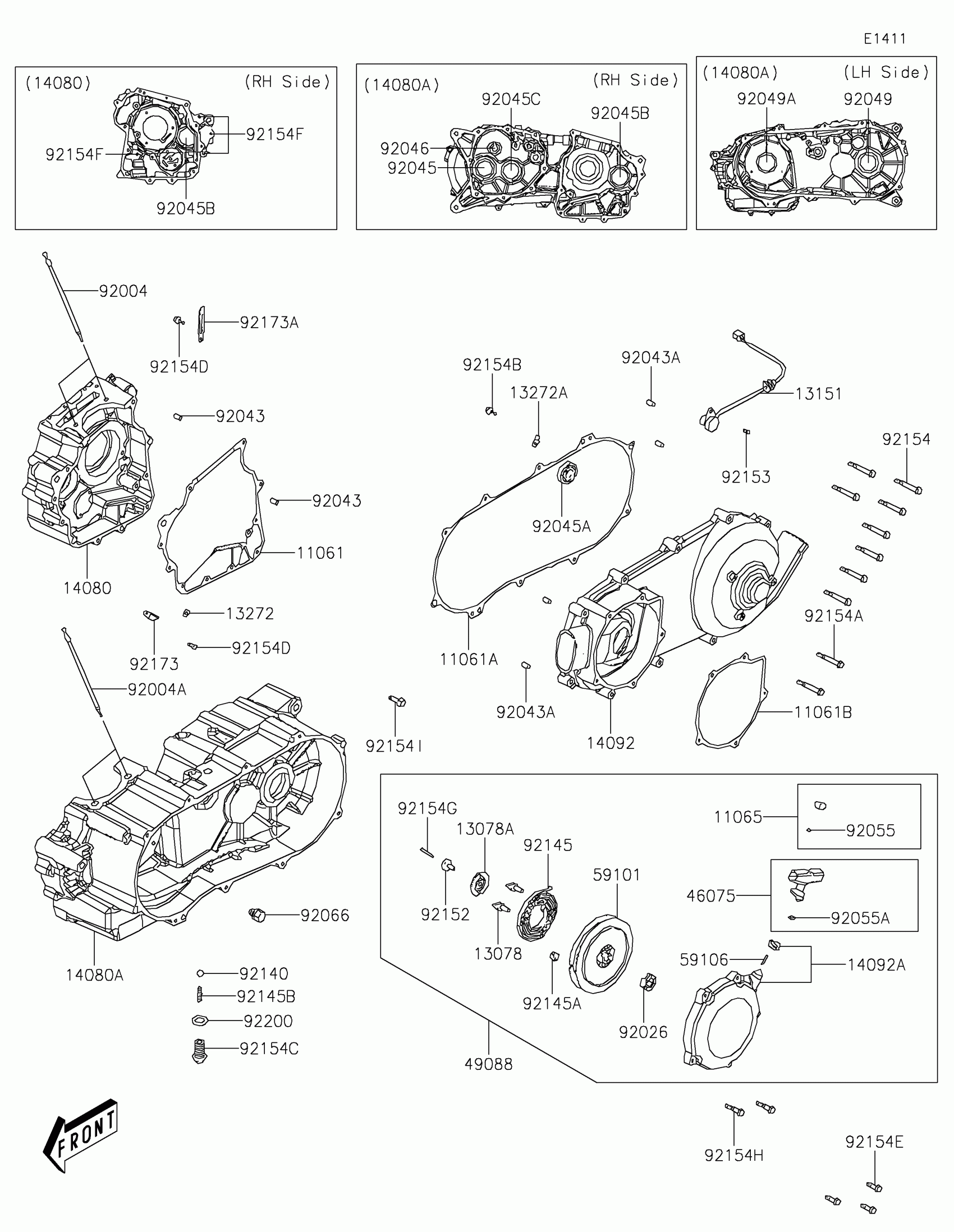

Kawasaki BRUTE FORCE® 300 Crankcase Diagram

#

Description
Price

11061

GASKET,CRANK CASE

11061-Y023

$12.59

11061A

GASKET,CRANK CASE COVER,LH

11061-Y024

$38.14

11061B

GASKET,RECOIL STARTER

11061-Y025

$7.10

11065

CAP

11065-Y011

$20.80

13078

RATCHET

13078-Y003

$5.98

13078A

RATCHET

13078-Y004

$4.03

13151

SWITCH-COMP

13151-Y001

$65.97

13272

PLATE

13272-Y003

$1.14

13272A

PLATE

13272-Y004

$2.31

14080

CRANKCASE,RH

14080-Y005

$211.52

14080A

CRANKCASE,LH

14080-Y006

$337.05

14092

COVER,CRANK CASE,LH

14092-Y004

$121.71

14092A

COVER,RECOIL STARTER

14092-Y005

$76.51

46075

GRIP

46075-Y003

$11.17

49088

STARTER-RECOIL

49088-Y001

$106.39

59101

REEL

59101-Y001

$27.14

59106

ROPE

59106-Y001

$6.75

92004

STUD

92004-Y008

$7.88

92004A

STUD

92004-Y009

$9.05

92026

SPACER

92026-Y010

$5.03

92043

PIN,8X14

92043-Y012

$1.36

92043A

PIN,10X16

92043-Y013

$1.00

92045

BEARING-BALL,6305

92045-Y013

$31.39

92045A

BEARING-BALL,6005LLU

92045-Y014

$33.37

92045B

BEARING-BALL,6205

92045-Y015

$17.44

92045C

BEARING-BALL,6304

92045-Y016

$24.88

92046

BEARING-NEEDLE

92046-Y004

$22.92

92049

SEAL-OIL,27X42X7

92049-Y009

$11.00

92049A

SEAL-OIL,25X40X8

92049-Y010

Unavailable

92055

RING-O,17.8X2.4

92055-Y019

$1.92

92055A

RING-O,16.7X3.2

92055-Y034

$2.71

92066A

PLUG,DRAIN

92066-Y014

$11.76

92140

BALL,STEEL 12

92140-Y001

$1.32

92145

SPRING

92145-Y022

$15.29

92145A

SPRING

92145-Y023

$4.03

92145B

SPRING

92145-Y024

$1.32

92152

COLLAR

92152-Y015

$5.61

92153

BOLT,FLANGE,6X10

92153-Y045

$0.95

92154

BOLT,FLANGED,6X28

92154-Y001

$0.81

92154A

BOLT,FLANGED,6X40

92154-Y002

$0.93

92154B

BOLT,SOCKET,6X10

92154-Y003

Unavailable

92154C

BOLT,14X21

92154-Y004

$5.03

92154H

BOLT,FLANGE,6X12

92154-Y035

$1.32

92154I

BOLT,FLANGE,6X25

92154-Y066

$1.71

92154K

BOLT,FLANGED,6X50

92154-Y126

$2.05

92154L

BOLT,HEX,5X25

92154-Y127

$2.14

92154M

BOLT,FLANGE,6X32

92154-Y128

$1.84

92154N

BOLT,SOCKET,6X10

92154-Y129

$4.44

92173

CLAMP

92173-Y001

$1.92

92173A

CLAMP

92173-Y002

$1.92

92200

WASHER

92200-Y023

$1.14
