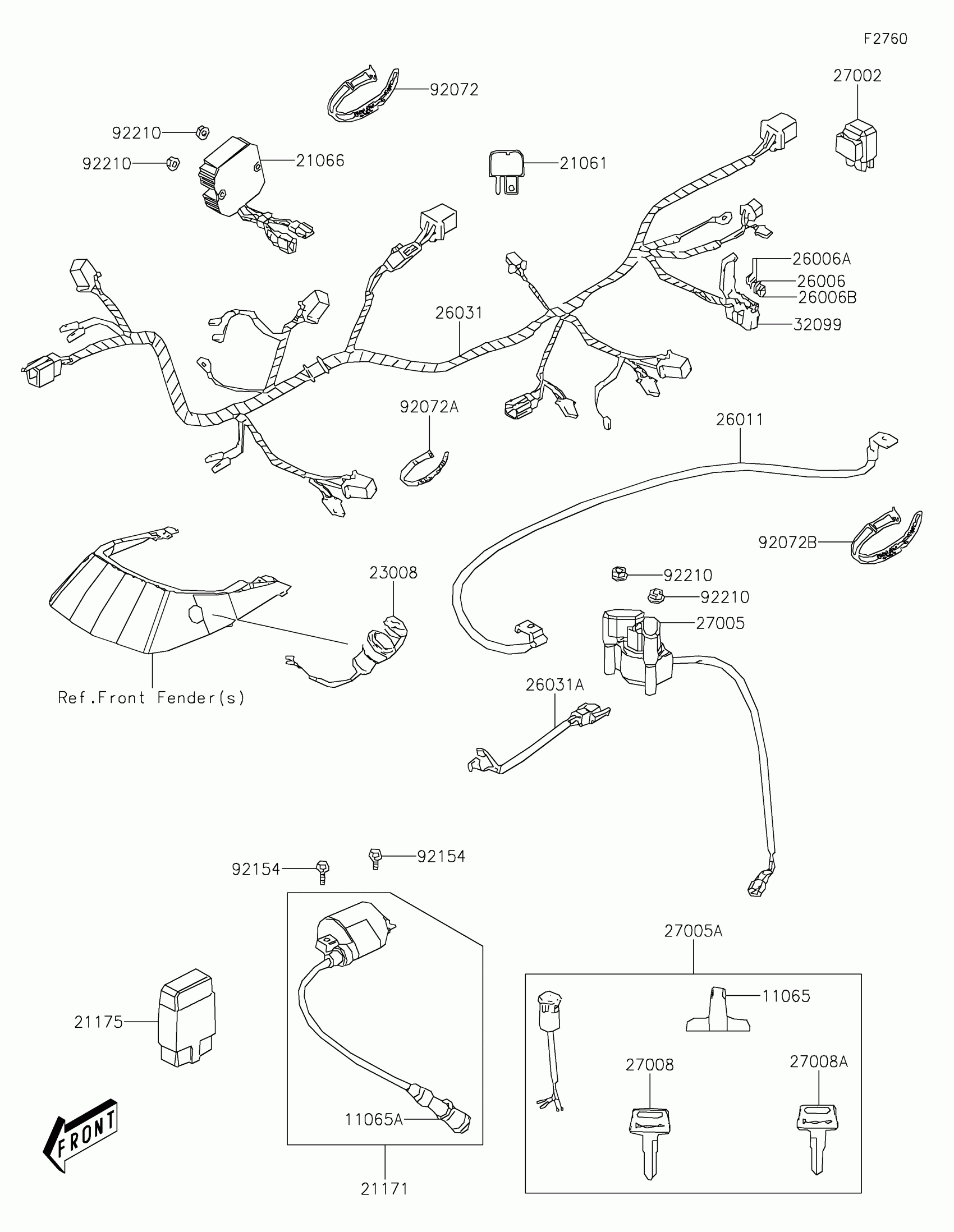

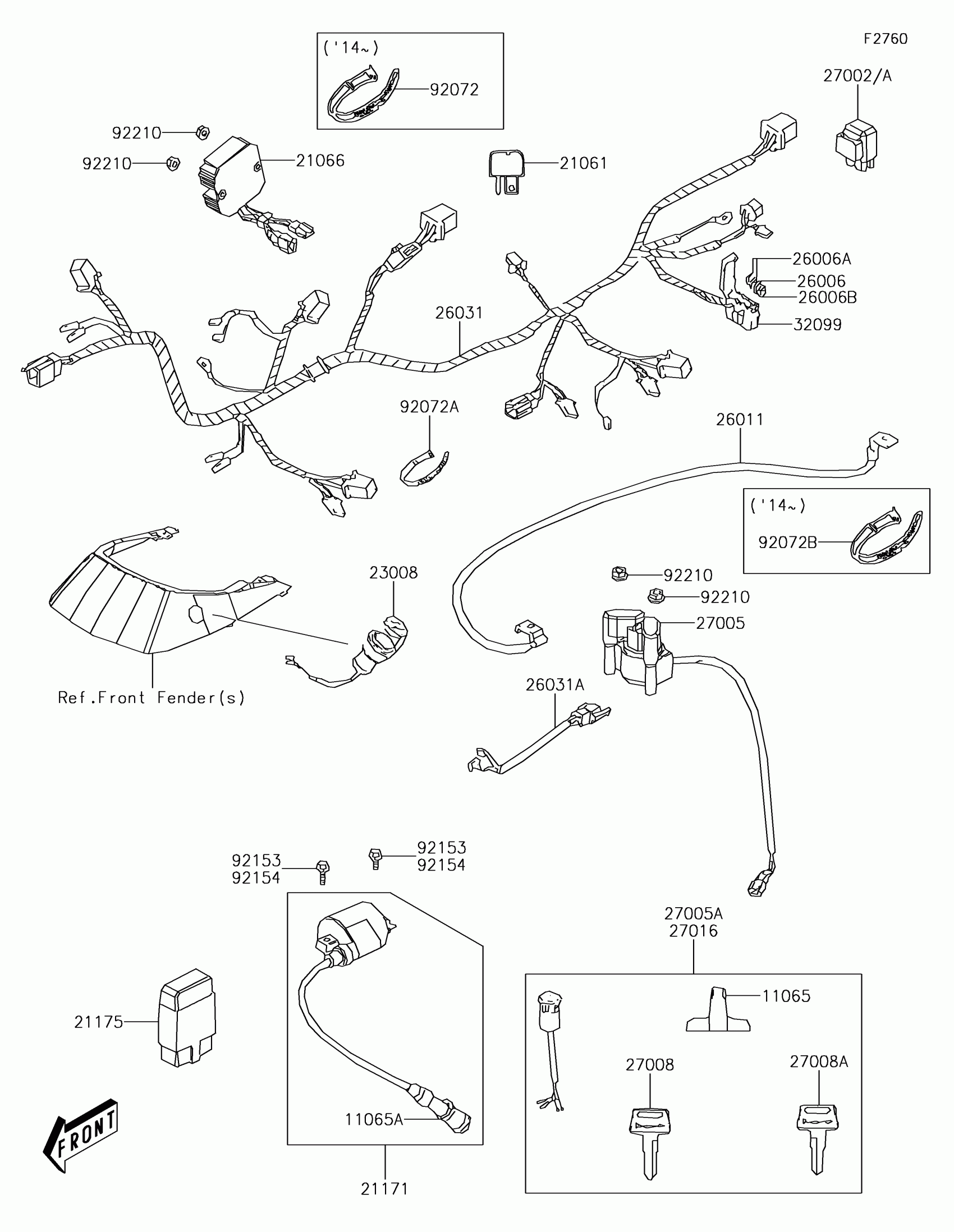

Kawasaki BRUTE FORCE® 300 Chassis Electrical Equipment Diagram

Description

Price

11065

CAP,KEY

11065-Y007

$3.81

11065A

CAP

11065-Y018

$19.27

21061

RECTIFIER,DIODE

21061-Y001

$14.29

21066

REGULATOR-VOLTAGE

21066-Y002

$113.56

21171

COIL-ASSY-IGNITION

21171-Y001

$71.82

21175

CONTROL UNIT-ELECTRONIC

21175-Y001

$194.30

23008

SOCKET-ASSY,DC12V

23008-Y006

$26.12

26006

FUSE,BLADE,10A

26006-Y002

$2.71

26006A

FUSE,BLADE,15A

26006-Y003

$2.71

26006B

FUSE,BLADE,30A

26006-Y004

$2.71

26011

WIRE-LEAD,BATTERY

26011-Y003

$19.45

26031

HARNESS,MAIN

26031-Y005

$258.64

26031A

HARNESS,SUB

26031-Y006

$6.39

27002A

RELAY-ASSY,LIGHT

27002-Y004

$31.19

27005

SWITCH,RELAY

27005-Y003

$49.77

27005A

SWITCH-ASSY-IGNITION

27005-Y005

$53.49

27008

KEY-LOCK,BLANK

27008-Y003

$12.78

27008A

KEY-LOCK,BLANK

27008-Y004

$15.88

32099

CASE,FUSE

32099-Y005

$10.80

92072

BAND

92072-Y003

$1.61

92072A

BAND

92072-Y008

$1.14

92072B

BAND

92072-Y011

$1.07

92154

BOLT,FLANGE,6X16

92154-Y134

$1.84

92210

NUT,6MM

92210-Y027

$0.80
