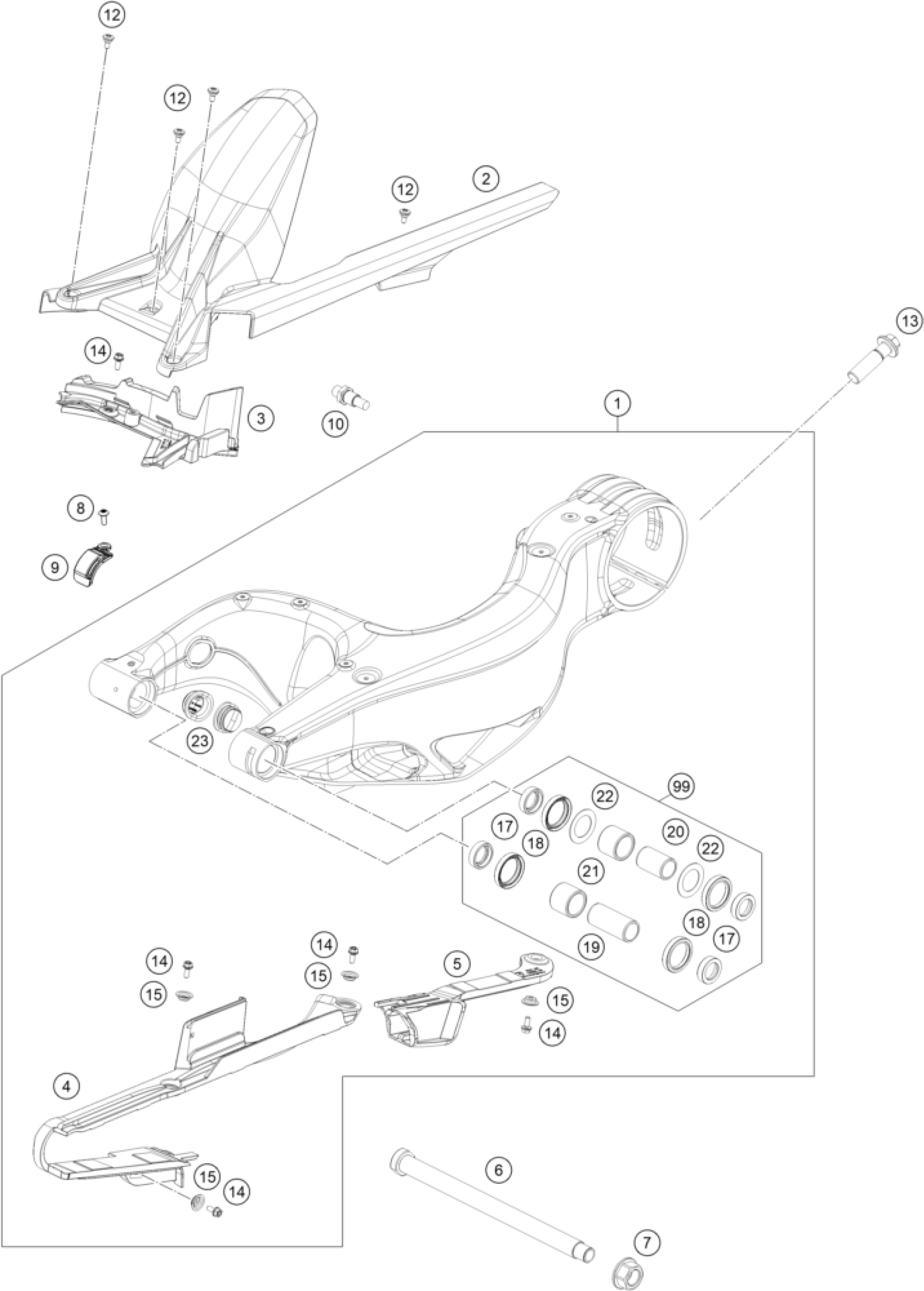

KTM BRABUS 1300 R, black gold 2023 SWING ARM Diagram

#

Description

Price

1

Swingarm cmpl. SD-R 20

6170403004433

Unavailable

2

Splash protection, carbon

61704950000

Unavailable

3

Brake line guide

61704042000

Unavailable

4

Front chain slider

61704060000

Unavailable

5

Rear chain slider

61704070000

Unavailable

6

Swingarm pivot

69004037344

Unavailable

7

Collar nut M19X1.5 SW=27MM

60004038200

Unavailable

8

Oval head screw M5x14 TX25

58605083014

Unavailable

9

MAGNET HOLDER

60416061000

Unavailable

10

BOLT BRAKE SADDLE BRACKET

76004142000

Unavailable

12

special screw M5x12

69008021160

Unavailable

13

HH collar screw M16X1.5X55

61310021000

Unavailable

14

HH collar screw M5x12 TX30

0025050126

Unavailable

15

BUSH FOR CHAINSLIDER GUARD 02

46104066050

Unavailable

17

Radial shaft seal 30X40X7

0760304073

Unavailable

18

Bucket f. shaft seal ring 03

60004034000

Unavailable

19

Inner ring JR 20X25X56.5

69004032000

Unavailable

20

INNER RING JR20X25X38,5 03

60004032000

Unavailable

21

NEEDLE BUSH HK2526B 03

60004031000

Unavailable

22

Stop disk 03

60004033000

Unavailable

23

Locking cap swingarm

61304041100

Unavailable

99

swingarm rep. kit

69004230010

Unavailable
