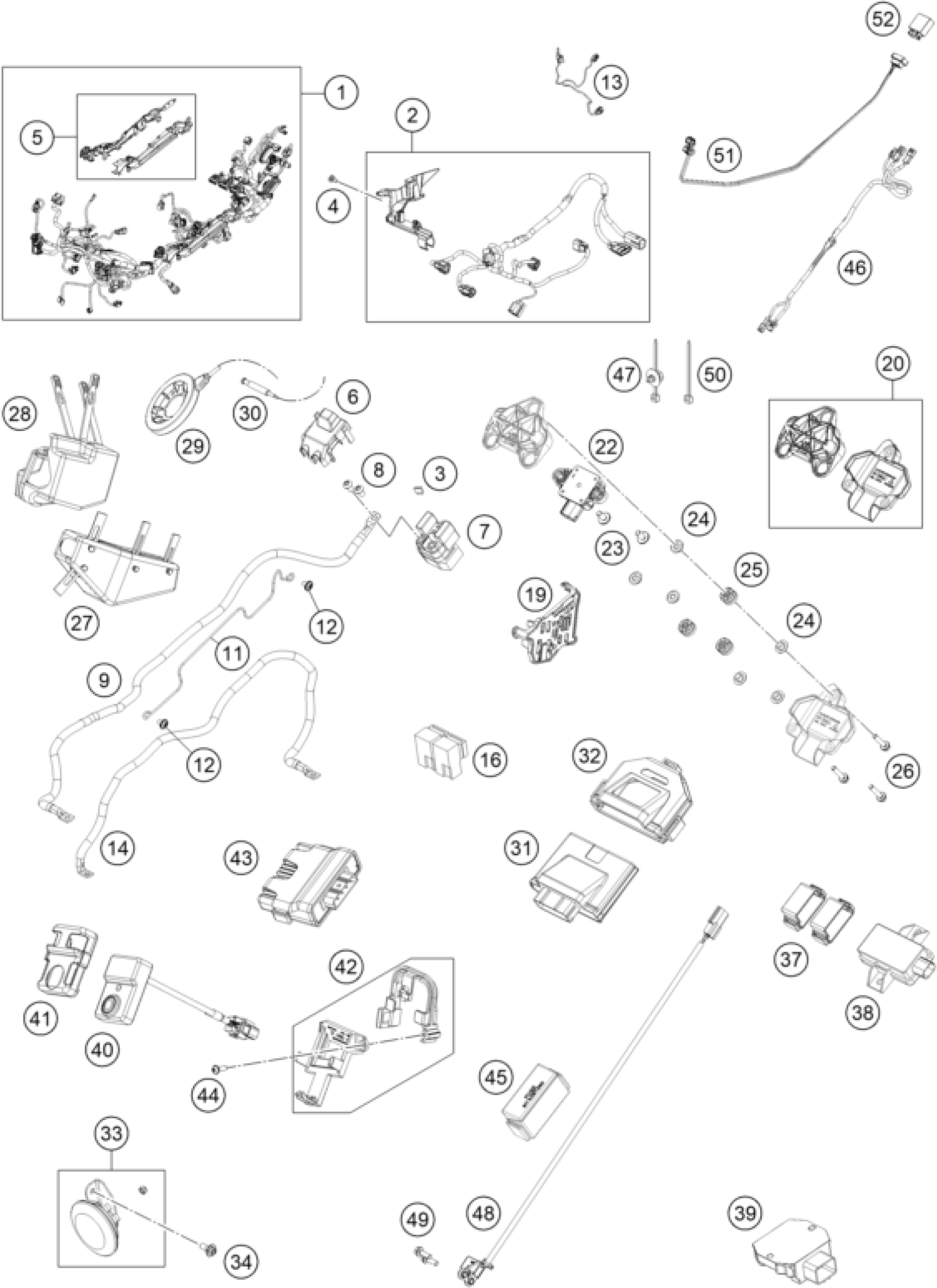

KTM BRABUS 1300 R, black 2022 WIRING HARNESS Diagram

#

Description

Price

1

Main wiring harness cmpl.

A64111075033

Unavailable

2

Engine wiring harness cpl.

61711085033

Unavailable

3

Plug-in fuse, big 30A

58011109130

Unavailable

4

special screw M5x12

69008021160

Unavailable

5

Cable channel, rear part

61711047000

Unavailable

6

Cover flap, starter relay

64111058110

Unavailable

7

Starter relay

76211058000

Unavailable

8

Oval head screw ISK ISO7380 M6

0738060101

Unavailable

9

Starter cable

61711059000

Unavailable

11

Cable bracket

61711010010

Unavailable

12

Oval head screw ISR M5x8-A2-07

073802050085

Unavailable

13

Wiring harness topfeeder

61711086000

Unavailable

14

Earth wire

61711097000

Unavailable

16

RELAY CM1A-R-12V-H80 07

61111057000

Unavailable

19

Connector support frame

61711083050

Unavailable

20

Coverage lean angle sensor SD-

61742190000

Unavailable

22

Angle sensor

61542090000

Unavailable

23

HH collar screw M6x15 TX30

0024060156

Unavailable

24

Tachometer support bush

60714069050

Unavailable

25

DAMP. COMPONENT SPEEDOMETER

61314069051

Unavailable

26

HH collar screw M5x25 TX30

0025050256S

Unavailable

27

Plugbox rubber

61711003050

Unavailable

28

Connector box 2

61711003060

Unavailable

29

Antenna keyless

69011168000

Unavailable

30

Temperatur sensor

61111018100

Unavailable

31

Control unit MCU 3.0

60711033000

Unavailable

32

Rubber band

60711033050

Unavailable

33

Direct current horn complete

64111060033

Unavailable

34

HH collar screw M6x15 TX30

0024060156

Unavailable

38

RECEIVER AIR PRESSURE SENSOR

60312032000

Unavailable

39

VOLTAGE REGULATOR

60311034000

Unavailable

40

Connectivity unit

79114086100

Unavailable

41

Rubber support, CCU

79114086050

Unavailable

42

Fixation-Set Connectivity Box

61711046030

Unavailable

43

Control unit semi-active chass

61916031000

Unavailable

44

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

45

Fuse Box

61711087050

Unavailable

46

Wiring harness, rear part SD-R

61711076000

Unavailable

47

Plug-in cable tie for M5

61711094000

Unavailable

48

Suspension travel sensor

61916062000

Unavailable

49

HH Collar Screw M5x16 ISA30 SS

0025050166S

Unavailable

50

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

51

front light harness

61711A79000

Unavailable

52

star device

61714A39000

Unavailable

37

Rubber band TPMS

61711032050

Unavailable
