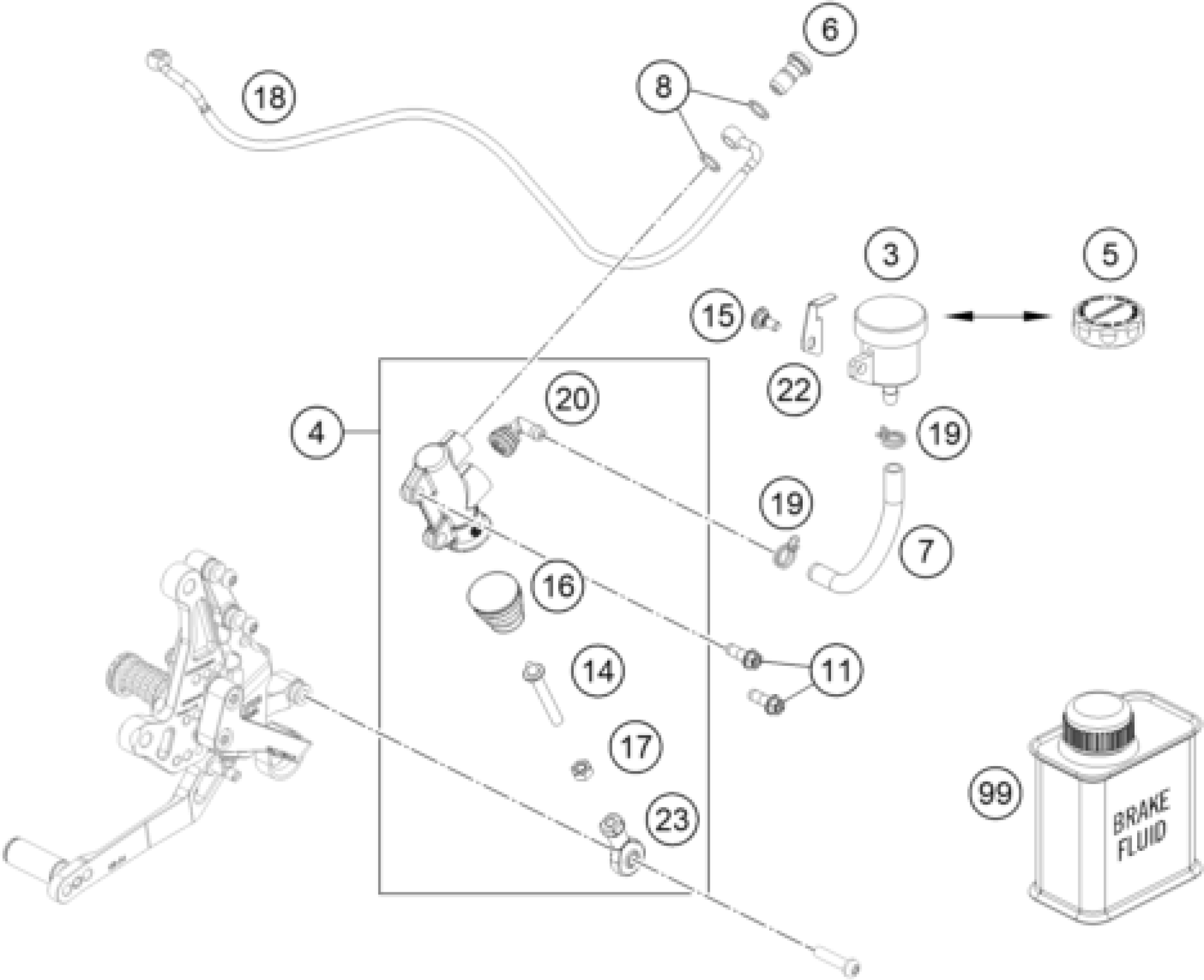

KTM BRABUS 1300 R, black 2022 REAR BRAKE CONTROL Diagram

#

Description

Price

3

Brake fluid reservoir cmpl.

61713069044

Unavailable

4

Rear master cylinder

61713060000C1

Unavailable

6

banjo bolt M10x1x19.5

62113020100

Unavailable

7

Hose reservoir 6x1,5

57313072001

Unavailable

8

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

11

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

14

PUSH ROD CPL.

60313056044

Unavailable

15

Screw, reservoir

69013099150

Unavailable

16

RUBBER SLEEVE

54513151000

Unavailable

17

STOP NUT DIN6926 M8 SS

0926080003

Unavailable

18

Brake line rear master cylinde

61742002000

Unavailable

19

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

20

ANGLE PIECE

54513155000

Unavailable

22

Lock washer, brake fluid reser

61713069020

Unavailable

23

SWIVEL HEAD M6 FOOT BRAKE LEV.

54603069000

Unavailable

99

Brake fluid DOT5.1 0,25L

00062030000

Unavailable

5

Rear master cylinder cover

61713A62000

Unavailable
