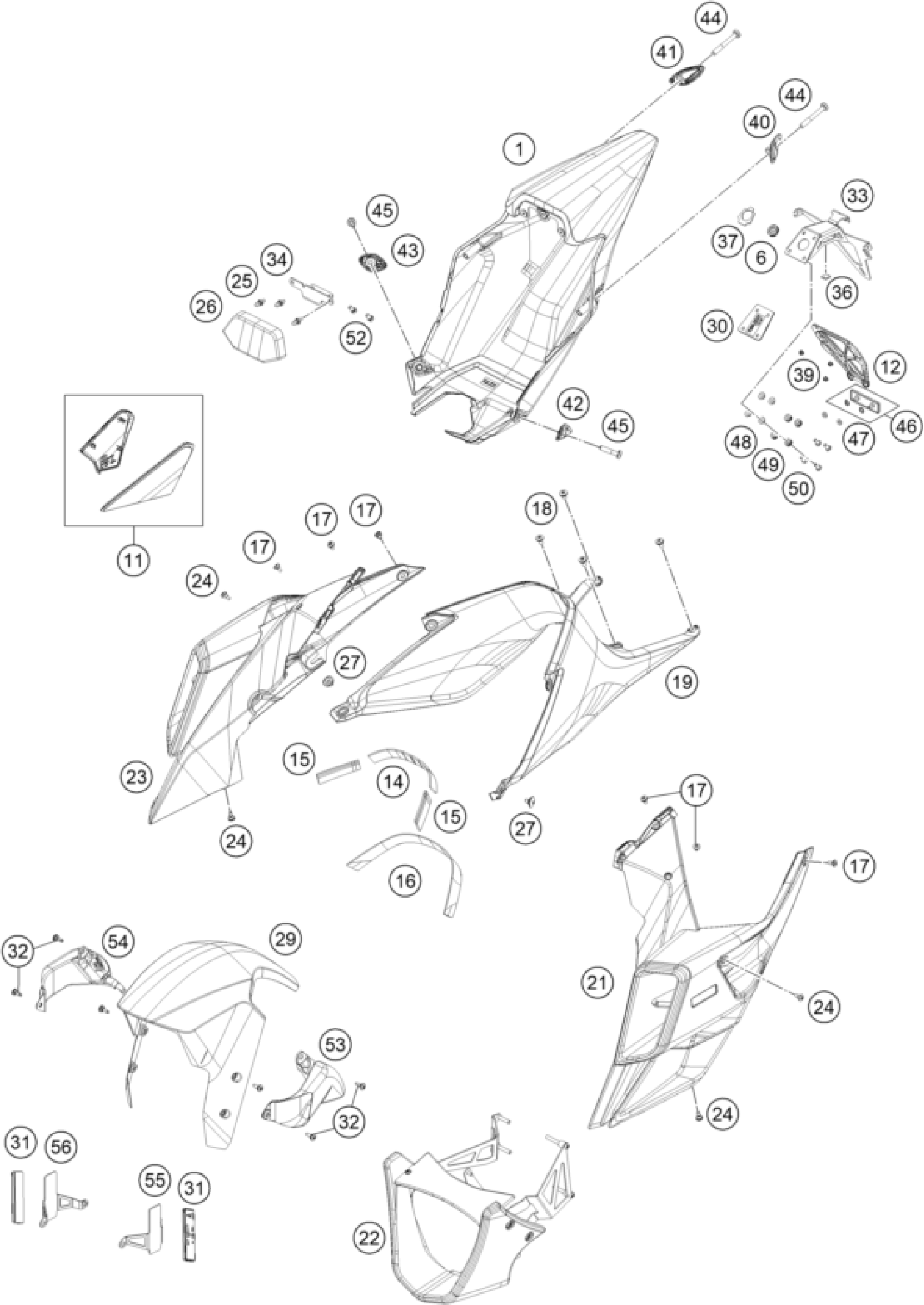

KTM BRABUS 1300 R, black 2022 MASK, FENDERS Diagram

#

Description

Price

1

Tail Brabus black with Sticker

61708A19044

Unavailable

6

Rubber grommet, standby gas se

60006001023

Unavailable

12

Bracket for reflector

64112181100

Unavailable

17

special screw M5x12

69008021160

Unavailable

18

special screw M6x14

69008021040

Unavailable

19

Fuel tank fairing, rear, carbo

61708949000

Unavailable

21

side spoiler left

61708A50044

Unavailable

23

side spoiler right

61708A51044

Unavailable

24

Special screw, M5x14

69008021260

Unavailable

25

Quick lock pin M5

0940000700900

Unavailable

26

Support pad SD-RR

61708919010

Unavailable

27

SCREW FOR SEAT M6X11,5/8

58407011100

Unavailable

29

Fender carbon cmpl.

61708910000

Unavailable

30

Cover, carbon license plate di

61708019070

Unavailable

31

SIDE REFLECTOR YELLOW "CEV"

60012080100

Unavailable

32

Special screw, M5x14

69008021260

Unavailable

33

License plate holder support S

61708115000C1

Unavailable

34

Bracket, throttle cable

61707050040

Unavailable

36

Adhesive Cable Mount Clip

90508902010

Unavailable

37

Seal licence plate holder supp

61708115040

Unavailable

39

flanged hex nut EN 1661 M5

06923050003

Unavailable

40

Mounting flange top left black

61703002054C1

Unavailable

41

Mounting flange top right blac

61703002055C1

Unavailable

42

Fastening plate, bottom left

61703902064C1

Unavailable

43

Fastening plate, bottom right

61703902065C1

Unavailable

44

Hex screw w.intern.Torx w.coll

0035080606S

Unavailable

45

AH collar screw M8x30 ISA45

0035080306S

Unavailable

46

Rear reflector red

58412080400

Unavailable

47

RUBBER 14X6.5X2.3MM

60408061050

Unavailable

48

SPACER BUSHING

60305083082

Unavailable

49

Rubber grommet

0650001301000

Unavailable

50

Roundhead screw, M5x14 TX25

58605083114

Unavailable

52

HH collar screw M6x10 TX30

0025060106

Unavailable

53

Brake cooling channel, left

61713932000

Unavailable

54

Brake cooling channel, right c

61713933000

Unavailable

55

Bracket, side reflector left

61712082010C1

Unavailable

56

Bracket, side reflector right

61712082020C1

Unavailable

14

Cellular rubber 25x180x3

0660002518000

Unavailable

15

Cellular rubber 25x80x3

0660002508000

Unavailable

16

Cellular rubber 30x360x2

0660003036000

Unavailable

22

belly pan complete

61708A20044

Unavailable

11

Side Cover Set SD-R 20

61708044000

Unavailable
