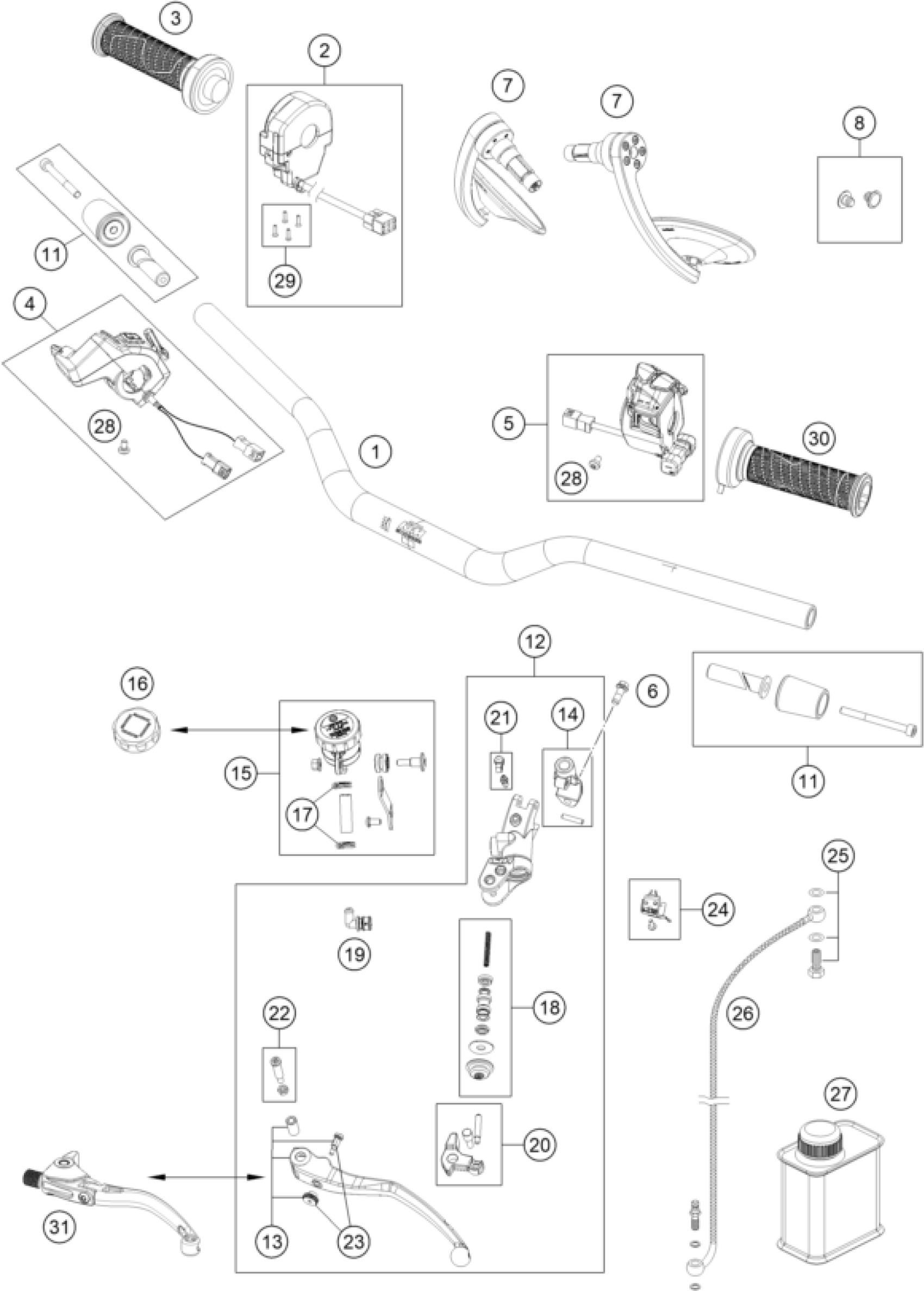

KTM BRABUS 1300 R, black 2022 HANDLEBAR, CONTROLS Diagram

#

Description

Price

1

Handlebar Dk=28.5mm

61702001000C1

Unavailable

2

E-Throttle w/o grip

60711912000

Unavailable

3

Handle gripheater R

60702112000

Unavailable

4

Start / Emergency stop switch,

61711074100

Unavailable

5

Combination steering switch, l

61711070100

Unavailable

6

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

7

handlebar end mirror le.+ri.

61712A40000

Unavailable

8

cover caps

61712A44050

Unavailable

11

Handlebar weight with silent b

61702104000C1

Unavailable

12

MASTER CYLINDER CPL.

6130203014430

Unavailable

13

CLUTCH LEVER CPL.

6130203100030

Unavailable

14

CLAMP MIRROR W. TENSION PIN

6130204400030

Unavailable

15

Reservoir cpl. with bracket

61702055044

Unavailable

17

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

18

REP. SET PISTON D=12MM 2007

59413008000

Unavailable

19

ANGLE PIECE CPL. (DOT)

61002051144

Unavailable

20

ROCKER CPL. 05

61002056000

Unavailable

21

BLEEDER SCREW WITH CAP

61002054000

Unavailable

22

LEVER SCREW SHORT CPL. 09

50302038200

Unavailable

23

ADJUSTING SCREW CPL.

61002043000

Unavailable

24

CLUTCH SWITCH ATV

83111049000

Unavailable

25

HOLLOW SCREW + COPPER GASKET

59032062000

Unavailable

26

CLUTCH PIPE

61032063100

Unavailable

27

Brake fluid DOT5.1 0,25L

00062030000

Unavailable

28

PAN HEAD SCREW M5X10 TX25

073800501002

Unavailable

29

SCREW SET START-STOP SWITCH

76011073110

Unavailable

30

Handle Gripheater

60702139100

Unavailable

16

clutch reservior cover

61702A33000

Unavailable

31

foldable clutch lever

61702A31044

Unavailable
