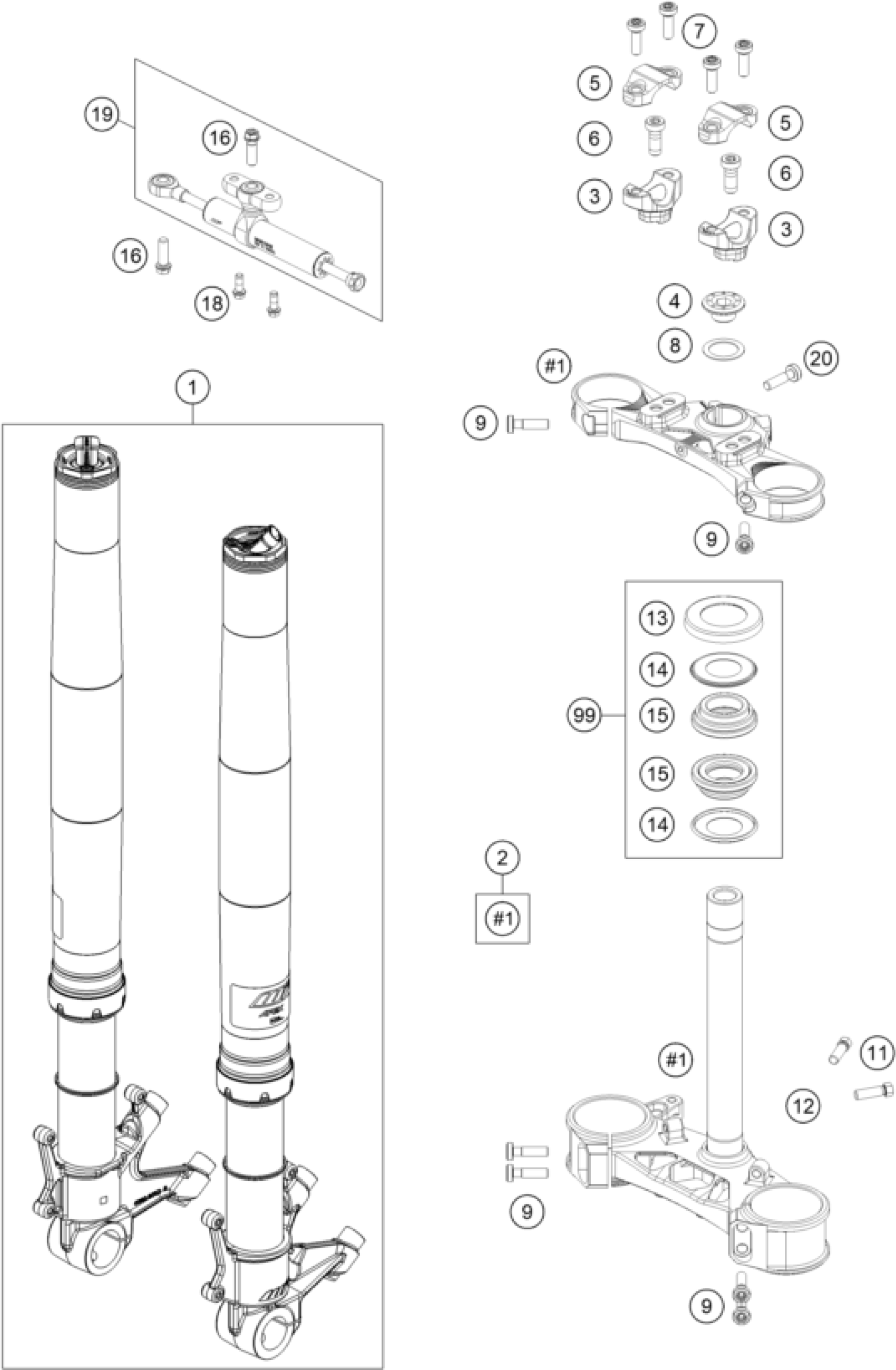

KTM BRABUS 1300 R, black 2022 FRONT FORK, TRIPLE CLAMP Diagram

#

Description

Price

1

Fork KTM 1290 Super Duke R 22

0641C122V407000

Unavailable

2

triple clamp cpl.

61701A99032C1

Unavailable

3

Handlebar mount h=32

61701039032C1

Unavailable

4

Steering head screw M20x1,5 WS

61701036000C1

Unavailable

5

Handlebar clamp

6160103800030S

Unavailable

6

AH collar screw M10x25 ISA45

0032100256S

Unavailable

7

AH collar screw M8x25 ISA45

0035080256

Unavailable

8

Shim ring DIN0988-25X35X1

0988253510

Unavailable

9

AH collar screw M8x30 ISA45

0035080306

Unavailable

11

SPECIAL SCREW M8X26 WS=10

59001037000

Unavailable

12

Hexagon nut DIN934 M8

0934080003

Unavailable

13

PROT. RING STEER. HEAD BEARING

69001086100

Unavailable

14

Stearing head gasket

69001084100

Unavailable

15

STEERINGHEAD KPL.17

69001181000

Unavailable

16

HH COLLAR SCREW M8X25 TX40

0025080256S

Unavailable

18

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

19

steering damper KTM 1290 SD R

16181T01E

Unavailable

20

AH collar screw M8x30 ISA45

0035080306S

Unavailable

99

Stearing head rep. Kit

69001181010

Unavailable
