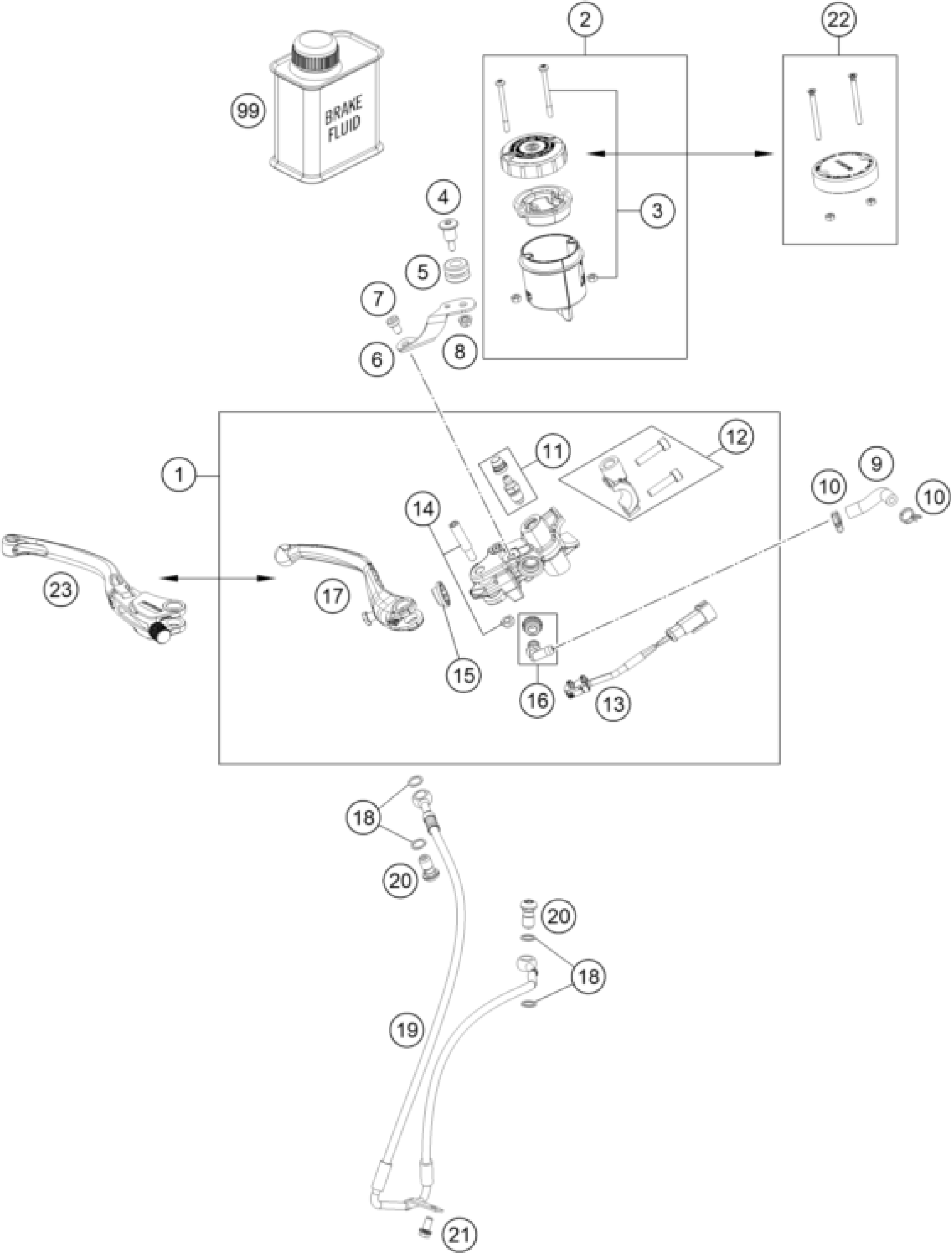

KTM BRABUS 1300 R, black 2022 FRONT BRAKE CONTROL Diagram

#

Description

Price

1

Hand brake cylinder PR16/19

6131300110030

Unavailable

2

BRAKE FLUID RESERV. BLACK CPL.

61313029000

Unavailable

3

SCREW + NUT F. RESERVOIR

61013009203

Unavailable

4

SCREW RET.PANEL-RESERVOIR

61013013050

Unavailable

5

RUBBER BUSH 05

61013013000

Unavailable

6

SUPPORT BRAKE FLUID RES. FRONT

6101300900130

Unavailable

7

SCREW RET.PANEL-BRAKE CYLINDER

61013021000

Unavailable

8

NUT FOR RESERVOIR

61013009004

Unavailable

9

HOSE FOR RESERVOIR 6X1,5

69013069001

Unavailable

10

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

11

BLEEDER SCREW WITH CAP

60013020000

Unavailable

12

CLAMP CPL. 16

76013005100

Unavailable

13

BRAKE LIGHT SWITCH FRONT

61311050000

Unavailable

14

LEVER SCREW CPL. 05

61013006000

Unavailable

15

RUBBER CUP 05

61013008000

Unavailable

16

ANGLE PIECE

54513155000

Unavailable

17

HAND BRAKE LEVER LOOSE BLACK

6101300200030

Unavailable

18

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

19

Brake line brake cylinder/modu

61742001000

Unavailable

20

banjo bolt M10x1x19.5

62113020100

Unavailable

21

HH collar screw M6x12 TX30

0025060126

Unavailable

99

Brake fluid DOT5.1 0,25L

00062030000

Unavailable

22

brake fluid reservoir

61713A09000

Unavailable

23

foldable brake lever

61713A02044

Unavailable
