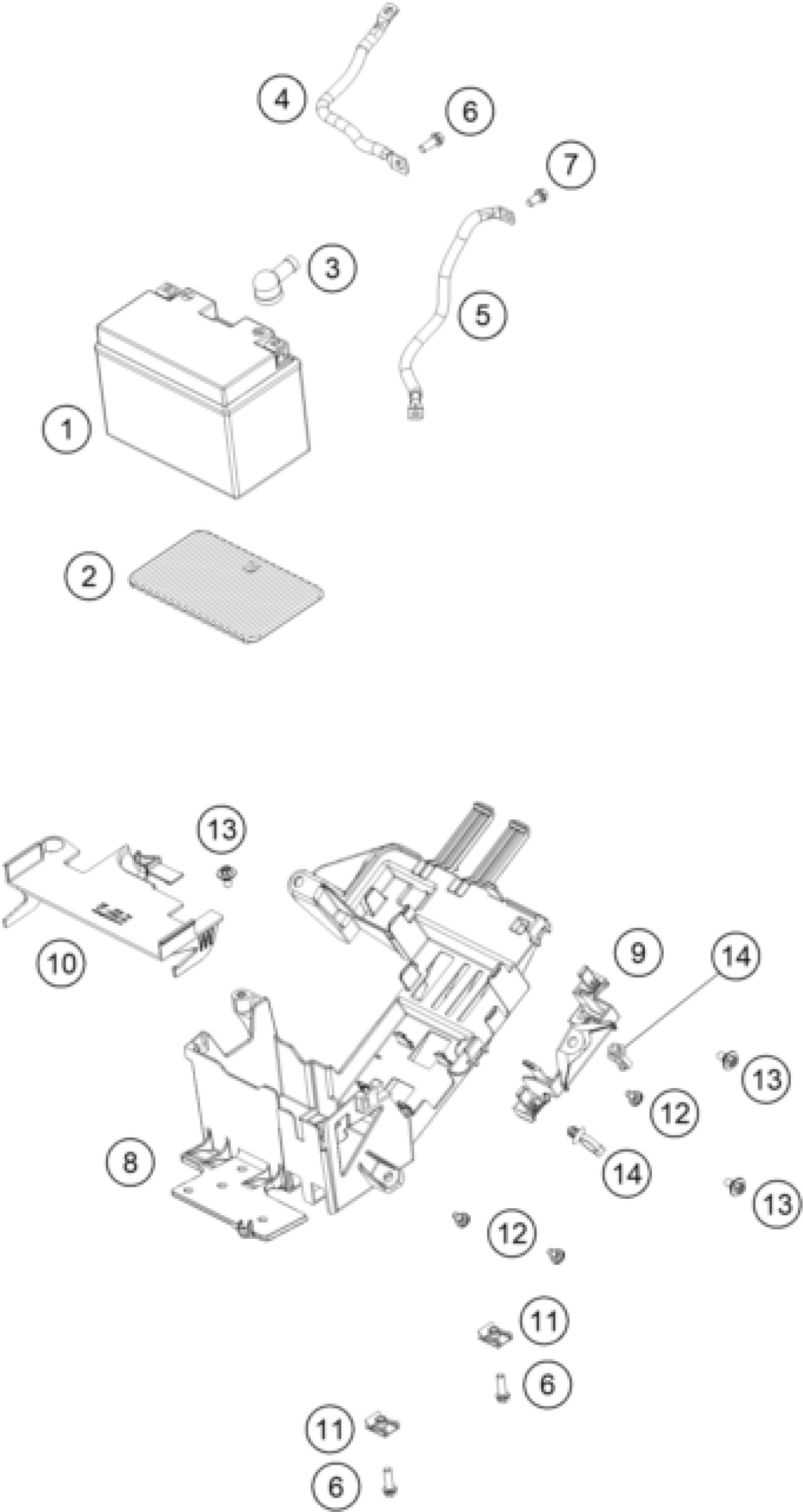

KTM BRABUS 1300 R, black 2022 BATTERY Diagram

#

Description

Price

4

Battery cable

61711059050

Unavailable

5

Ground wire bat. Frame

61711098000

Unavailable

6

HH collar screw M6x16 TX30

0025060166

Unavailable

7

HH collar screw M6x10 TX30

0025060106

Unavailable

1

Battery 12V/96Wh

61711053100

Unavailable

3

Rubber grommet, starter port 0

60040009000

Unavailable

2

RUBBER PLATE FOR BATTERY

61311053050

Unavailable

8

Electrics carrier

61711054000

Unavailable

13

special screw M6x12x3

83008000012

Unavailable

10

ECU bracket

61711055000

Unavailable

9

Bracket, fuse box

61711056000

Unavailable

14

Cable tie w. socket D=6.5

69011092000

Unavailable

11

clip nut M6

54603048100

Unavailable

12

special screw M5x12

69008021160

Unavailable
