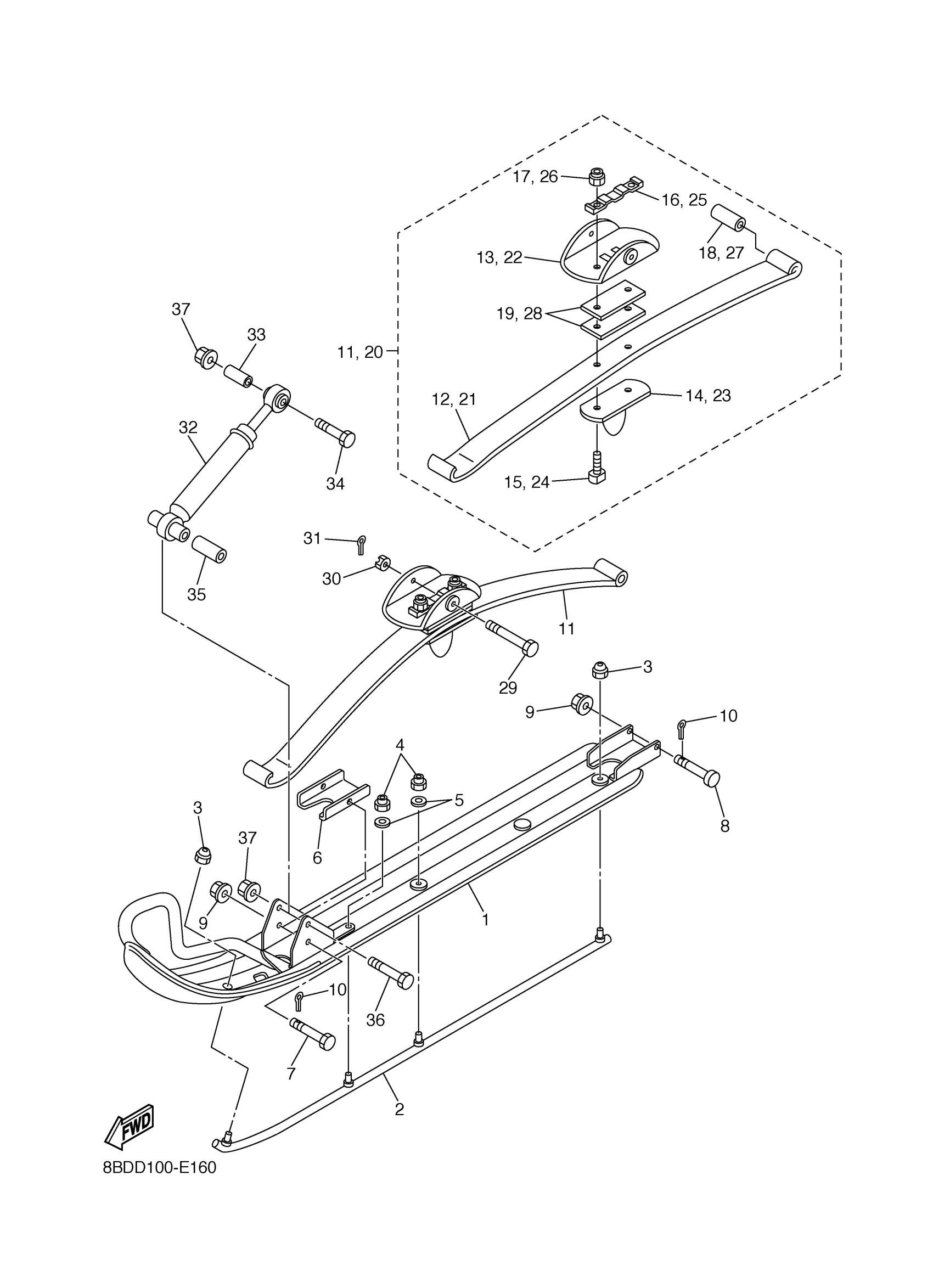

Find the part on the SKI diagram for your 2007 Yamaha Bravo (BR250TW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Yamaha Bravo (BR250TW) SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI COMP. 1

8BD-23710-00-00

—

$211.28

In stock

2

RUNNER 1

8E3-23731-01-00

1

$32.20

In stock

3

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

4

NUT

90185-08055-00

1

$8.31

In stock

5

WASHER(6TA)

92907-08600-00

1

$2.52

In stock

6

PLATE, WEAR

888-23735-00-00

—

$60.09

In stock

7

1

$8.14

In stock

8

BOLT, PIN HOLE (8A7)

90102-08027-00

1

$7.35

In stock

9

NUT, NYLON

95717-08300-00

1

$2.57

In stock

10

PIN, COTTER (648)

91490-20015-00

1

$1.85

In stock

11

SPRING ASSY 1

8BD-23760-00-00

—

$312.78

In stock

12

. LEAF 1

8BD-23761-00-00

1
Out of stock

13

SADDLE

8G6-23766-00-00

—

$32.37

In stock

14

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

15

. BOLT

8BD-23767-00-00

1
Out of stock

16

WASHER, ROCK (8J5)

90215-10155-00

—

$11.66

In stock

17

NUT, SELF-LOCKING (8J8)

90185-10085-00

—

$2.57

In stock

18

BUSH

8BD-2376B-00-00

—

$26.58

In stock

19

. SPACER

8BD-23787-00-00

1
Out of stock

20

SPRING ASSY 2

8BD-23770-00-00

—

$312.78

In stock

21

. LEAF 1

8BD-23761-00-00

1
Out of stock

22

SADDLE

8G6-23766-00-00

—

$32.37

In stock

23

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

24

. BOLT

8BD-23767-00-00

1
Out of stock

25

WASHER, ROCK (8J5)

90215-10155-00

—

$11.66

In stock

26

NUT, SELF-LOCKING (8J8)

90185-10085-00

—

$2.57

In stock

27

BUSH

8BD-2376B-00-00

—

$26.58

In stock

28

. SPACER

8BD-23787-00-00

1
Out of stock

29

BOLT, PIN HOLE (8G6)

90102-12030-00

—

$11.28

In stock

30

NUT, CASTLE

95307-12900-00

—

$5.85

In stock

31

PIN, COTTER

91401-30025-00

—

$6.18

In stock

32

CUSHION ASSY

8J6-23350-00-00

—

$145.14

In stock

33

COLLAR (878)

90387-08262-00

—

$9.02

In stock

34

BOLT, HEXAGON

97017-08055-00

—

$6.88

In stock

35

COLLAR (864)

90387-08224-00

—

$7.52

In stock

36

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

37

NUT, NYLON

95717-08300-00

1

$2.57

In stock
