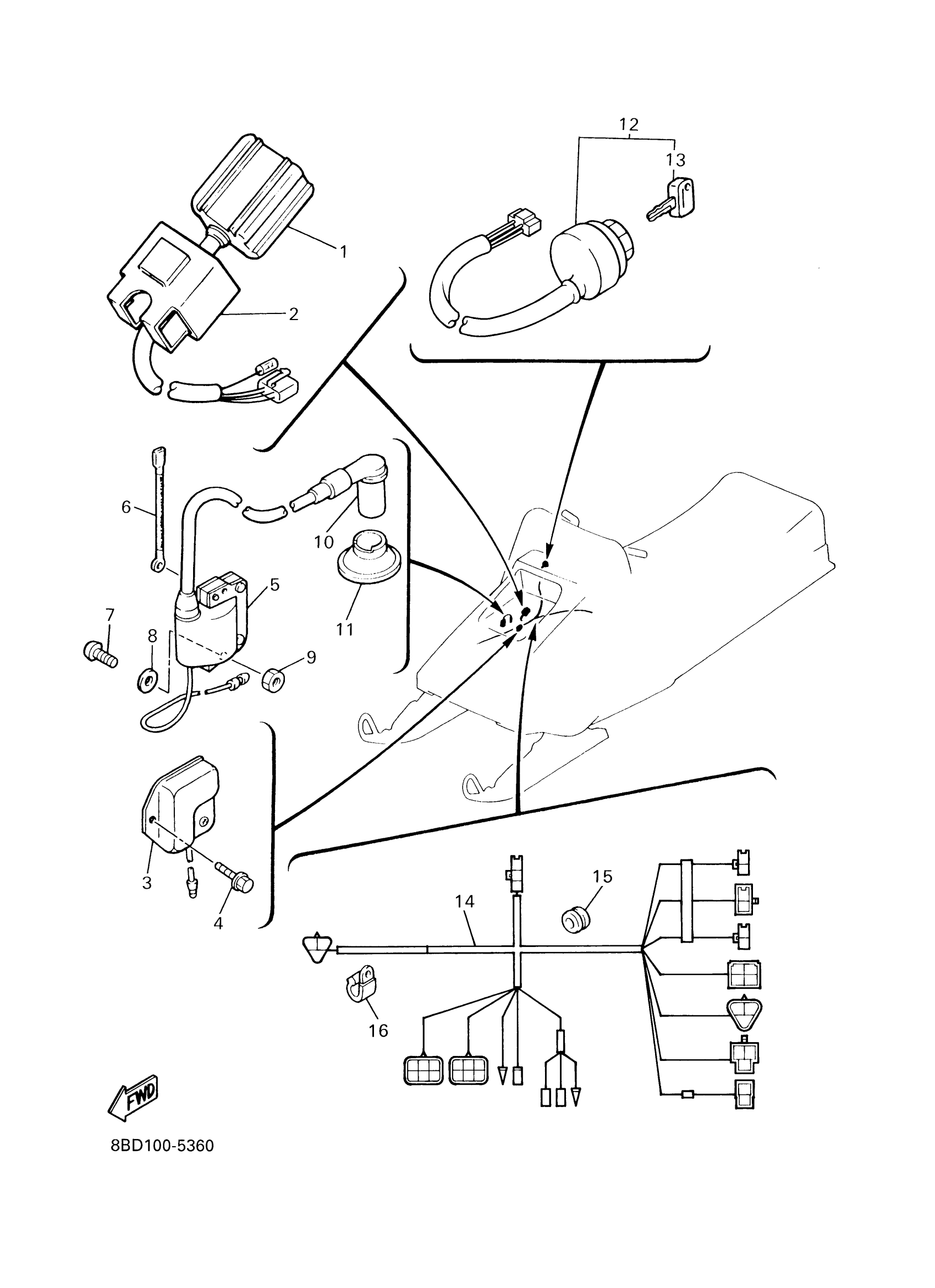

Yamaha BR250TW (BRAVO) 8BDE 2007 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

8AU-85540-00-00

$189.73

2

BAND

2A7-85546-00-00

Unavailable

3

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

Unavailable

4

BOLT, FLANGE

95817-06012-00

$1.40

5

IGNITION COIL ASSY

86B-82310-13-00

Unavailable

6

WIRE, SUB-LEAD

83Y-82318-00-00

$8.36

7

SCREW,PAN HEAD

98580-06540-00

Unavailable

8

WASHER, PLAIN (646)

92990-06600-00

$1.84

9

NUT(6TA)

95317-06600-00

$2.52

10

PLUG CAP ASSY

85G-82370-20-00

$26.95

11

SEAL

8G5-82372-00-00

$4.34

12

MAIN SWITCH ASSY

8R4-82510-20-00

$107.36

13

CAP, KEY

526-82579-00-00

$6.29

14

WIRE HARNESS ASSY

8BD-82590-00-00

Unavailable

15

GROMMET (2N3)

90480-16233-00

$6.35

16

CLAMP

90465-08028-00

$4.31
