1994 Yamaha Bravo LT (BR250TU) Electrical 2 Diagram

← All diagrams

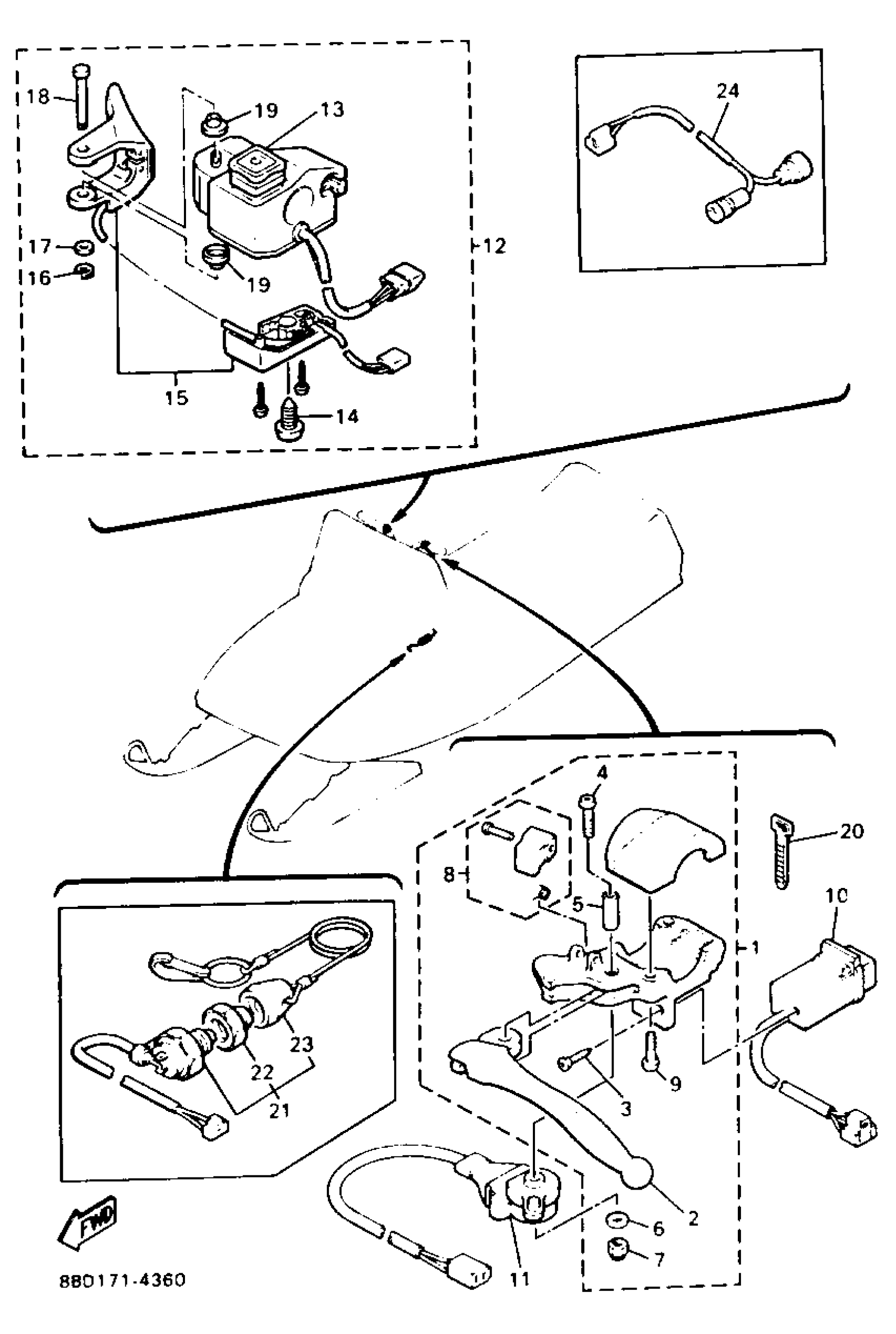

Find the part on the Electrical 2 diagram for your 1994 Yamaha Bravo LT (BR250TU), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Yamaha Bravo LT (BR250TU) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER HOLDER ASSY (LEFT)

8R4-W8291-02-00

1
Out of stock

2

LEVER L

803-83912-00-38

1
Out of stock

3

. SCREW, TAPPING

97780-30312-00

1
Out of stock

4

SCREW, PAN HEAD(89B)

90157-05114-00

—

$3.08

In stock

5

COLLAR, LEVER

802-83913-00-00

—

$6.35

In stock

6

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

7

NUT, NYLON

95707-05300-00

1

$2.74

In stock

8

LEVER LOCK ASSY

8E3-W8393-01-00

1
Out of stock

9

SCREW, PAN HEAD(41N)

90157-05057-00

—

$2.23

In stock

10

BEAM SWITCH ASSY

8H8-83950-01-00

1

$68.89

In stock

11

STOP SWITCH ASSY

8R4-82530-00-00

1

$27.65

In stock

12

LEVER HOLDER ASSY (RIGHT)

8AD-82720-00-00

1

$144.91

In stock

13

ENGINE STOP SWITCH ASSY

8AD-82575-09-00

—

$117.92

In stock

14

SCREW, ADJUSTING

8R6-83928-00-00

1

$2.83

In stock

15

LEVER, THROTTLE

8V0-42138-00-00

1

$55.57

In stock

16

CIRCLIP (EU0)

99080-04600-00

1

$1.67

In stock

17

WASHER, SPECIAL

85G-83663-00-00

—

$7.22

In stock

18

SHAFT

8R6-8399F-00-00

—

$10.85

In stock

19

CAP 1

85G-83956-00-00

—

$6.66

In stock

20

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

21

STOP SWITCH ASSY

8H8-82550-01-00

—

$83.12

In stock

22

NUT

8H8-82557-00-00

—

$3.78

In stock

23

CAP, SWITCH

8H8-82552-09-00

—

$42.05

In stock

24

WIRE, SUB-LEAD

89L-82318-00-00

—

$31.15

In stock
