1994 Yamaha Bravo LT (BR250TU) Bumper Diagram

← All diagrams

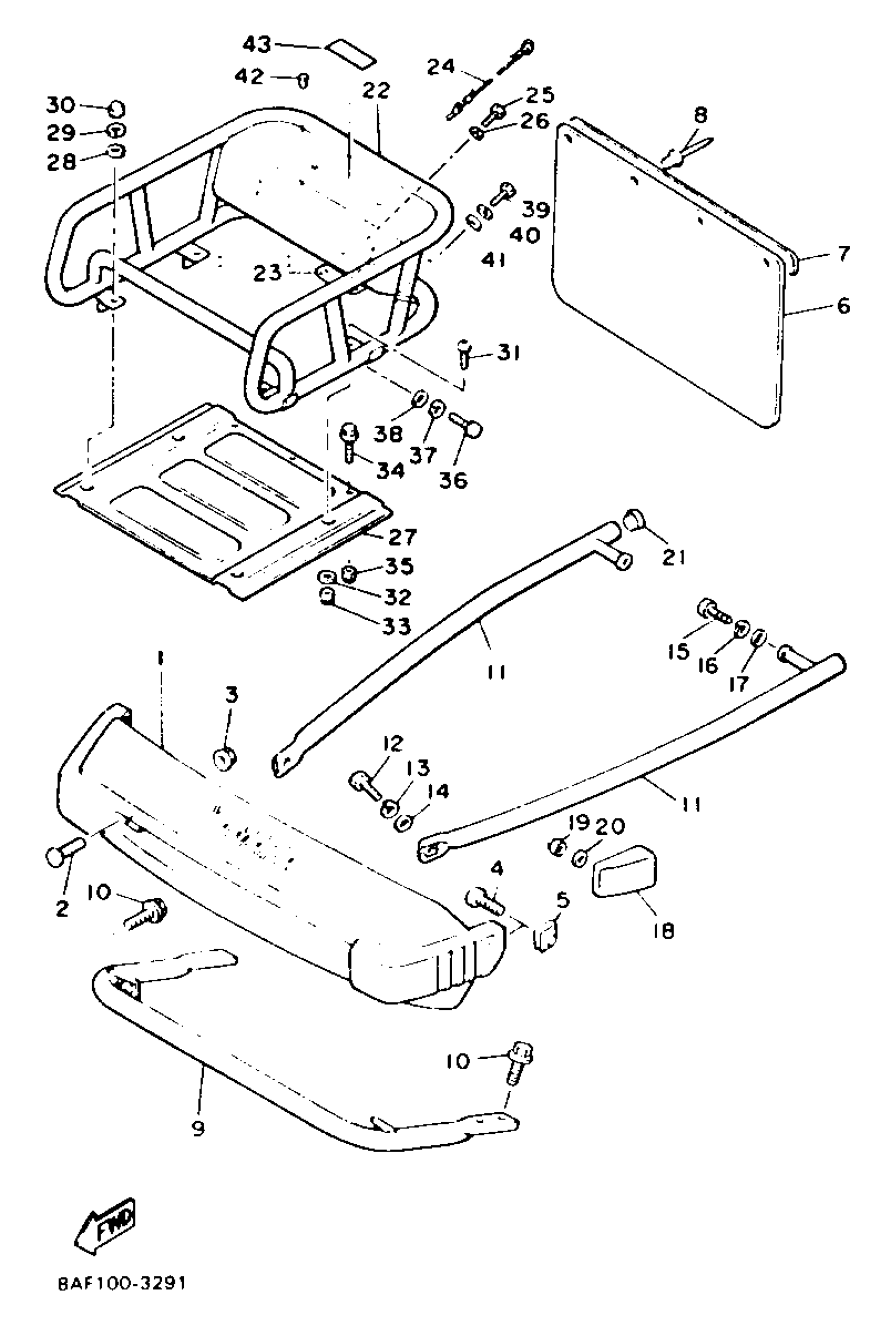

Find the part on the Bumper diagram for your 1994 Yamaha Bravo LT (BR250TU), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Yamaha Bravo LT (BR250TU) Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

81X-77511-00-00

—

$160.43

In stock

2

SCREW, BINDING

98907-06016-00

1

$7.14

In stock

3

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

4

SCREW, BINDING

98907-05012-00

1
Out of stock

5

NUT, SPRING (2E9)

90183-05013-00

1

$7.23

In stock

6

FLAP

88C-77595-00-00

1
Out of stock

7

STOPPER, FLAP

80J-77596-00-00

—
Out of stock

8

RIVET, BLIND (8R6)

90267-48086-00

1

$3.49

In stock

9

BUMPER, FRONT 3

8R4-77513-00-00

—

$93.11

In stock

10

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

11

BUMPER, FRONT 4

8X8-77514-00-00

1
Out of stock

12

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

13

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

14

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

15

BOLT, HEXAGON

97017-08016-00

1
Out of stock

16

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

17

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

18

END, BUMPER

8X8-77523-00-00

1
Out of stock

19

NUT, NYLON

95707-05300-00

—

$2.74

In stock

20

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

21

PLUG(8X8)

90338-20179-00

—

$8.49

In stock

22

BUMPER, REAR 1

8Y1-77541-00-00

1
Out of stock

23

BRACKET, HITCH 1

86D-77591-00-00

—

$81.69

In stock

24

PIN, HINGE

8U1-77157-00-00

—
Out of stock

25

BOLT, HEXAGON

97017-08020-00

—
Out of stock

26

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

27

PROTECTOR 4

8Y1-77554-00-00

—
Out of stock

28

WASHER(6TA)

92907-08600-00

—

$2.52

In stock

29

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

30

NUT, CAP

95307-08800-00

—
Out of stock

31

SCREW, BINDING

98907-08020-00

—
Out of stock

32

WASHER, PLATE (4W3)

90201-086A3-00

—

$6.29

In stock

33

NUT, NYLON

95717-08300-00

—

$2.57

In stock

34

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

35

NUT, NYLON

95717-08300-00

—

$2.57

In stock

36

BOLT, HEXAGON

97017-08016-00

1
Out of stock

37

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

38

WASHER(6TA)

92907-08600-00

—

$2.52

In stock

39

BOLT, HEXAGON

97027-08018-00

—

$1.62

In stock

40

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

41

WASHER(6TA)

92907-08600-00

—

$2.52

In stock

42

CLAMP

90464-48059-00

1
Out of stock

43

EMBLEM

3GX-24897-00-00

1
Out of stock
