1990 Yamaha Bravo LT (Long Track (BR250TP) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 1990 Yamaha Bravo LT (Long Track (BR250TP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

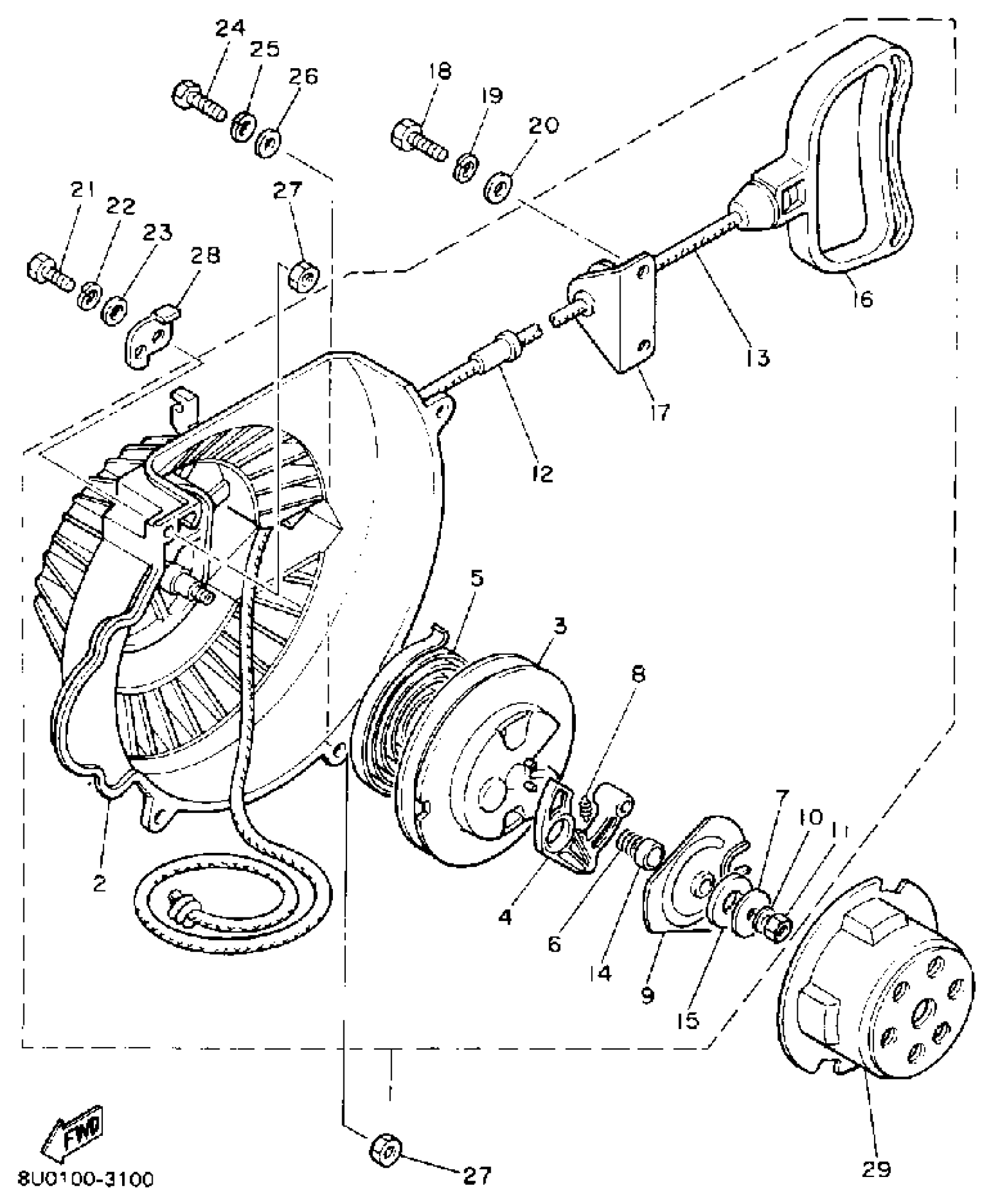

1990 Yamaha Bravo LT (Long Track (BR250TP) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER ASSY

8R4-15710-01-00

1
Out of stock

2

CASE, STARTER

8R4-15711-00-00

—
Out of stock

3

DRUM, SEAVE

8F3-15714-01-00

1
Out of stock

4

PAWL, DRIVE

8F3-15741-01-00

1
Out of stock

5

SPRING, STARTER

8F3-15713-01-00

1
Out of stock

6

SPRING, DRIVE PLATE

8F3-15715-00-00

1
Out of stock

7

WASHER, THRUST

8F3-15739-01-00

1
Out of stock

8

SPRING, RETURN

8F3-15734-00-00

1
Out of stock

9

PLATE, DRIVE

8F3-15716-03-00

1
Out of stock

10

WASHER, SPRING

92995-06100-00

1
Out of stock

11

NUT(650)

95380-06700-00

1
Out of stock

12

GUIDE, ROPE

8F3-15758-00-00

1
Out of stock

13

WIRE, STARTER (BRAIDED)

89A-15751-00-00

1
Out of stock

14

COLLOR

82M-15779-00-00

1
Out of stock

15

WASHER, THRUST

8G5-15739-00-00

1
Out of stock

16

HANDLE, STARTER

8F3-15755-00-00

—
Out of stock

17

. HOLDER, HANDLE

8R4-15788-01-00

1
Out of stock

18

BOLT, HEXAGON

97013-08020-00

—
Out of stock

19

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

20

.. WASHER, PLATE

92990-08600-00

1
Out of stock

21

BOLT, HEXAGON

97017-06025-00

—
Out of stock

22

WASHER, SPRING

92995-06100-00

1
Out of stock

23

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

24

BOLT, HEXAGON

97017-06030-00

—
Out of stock

25

WASHER, SPRING

92995-06100-00

1
Out of stock

26

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

27

NUT, HEXAGON

95380-06600-00

1
Out of stock

28

STOPPER, SHROUD

8R4-77118-00-00

—
Out of stock

29

PULLEY, STARTER

8R4-15723-00-00

1
Out of stock
