1990 Yamaha Bravo LT (Long Track (BR250TP) Frame Diagram

← All diagrams

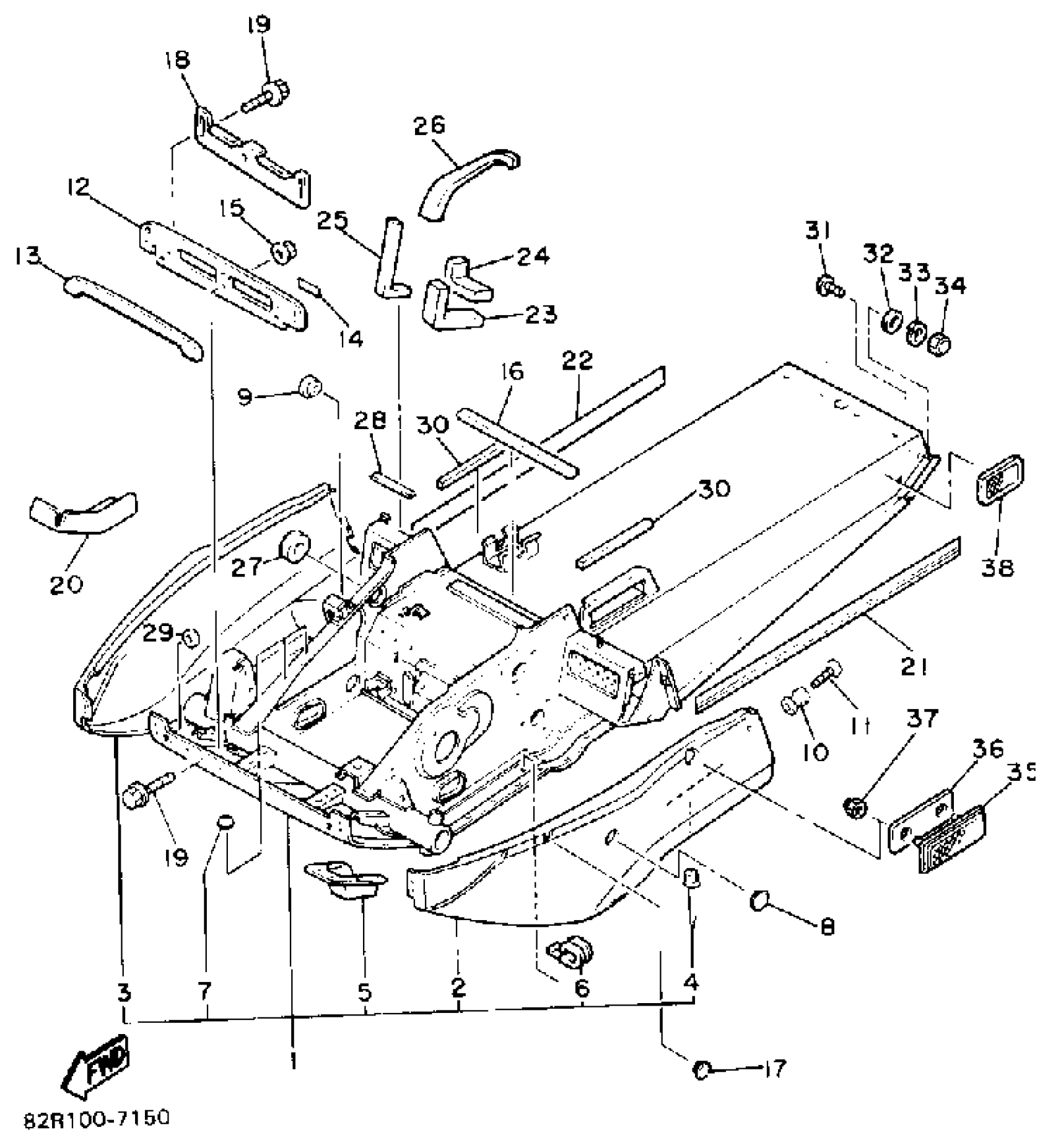

Find the part on the Frame diagram for your 1990 Yamaha Bravo LT (Long Track (BR250TP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Bravo LT (Long Track (BR250TP) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

86C-21910-00-00

1
Out of stock

2

HOOD 1

84A-21982-00-00

—
Out of stock

3

HOOD 2

84A-21983-00-00

—

$234.78

In stock

4

RIVET, BLIND

90267-48060-00

1

$2.00

In stock

5

COVER 2

80F-2198G-00-00

—

$25.02

In stock

6

CLAMP

90465-08028-00

1

$4.62

In stock

7

SPACER

80F-21998-00-00

—

$11.69

In stock

8

PLUG (8K4)

90338-40099-00

1

$11.89

In stock

9

GROMMET 117217730000

90480-40047-00

1

$3.91

In stock

10

. HOLDER, LATCH

8M6-77175-00-00

1

$12.72

In stock

11

SCREW, BINDING

98907-06030-00

1

$5.94

In stock

12

COVER 1

8V7-2198F-00-00

—

$95.74

In stock

13

DAMPER 1

8V7-77198-01-00

1
Out of stock

14

LABEL, WARNING 3

8V7-77763-01-00

1
Out of stock

15

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

16

SHIELD, NOISE 1

8R4-23891-00-00

—

$3.49

In stock

17

PLUG (8R4)

90338-09127-00

—

$3.74

In stock

18

COVER 2

8V7-2198G-00-00

—

$28.42

In stock

19

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

20

SHIELD, HEAT

80F-2199H-00-00

1
Out of stock

21

EMBLEM 4

86C-77354-00-00

1
Out of stock

22

EMBLEM 5

86C-77355-00-00

1
Out of stock

23

PATCH 1

8V7-21961-00-00

—

$7.05

In stock

24

UNAVAILABLE IN PRICE BOOK

8V-72196-20-0]

1
Out of stock

25

PATCH 3

8V7-21963-00-00

1
Out of stock

26

PATCH 4

82X-21964-00-00

1
Out of stock

27

PATCH 7

80F-21967-00-00

1
Out of stock

28

DAMPER, PLATE

90520-10012-00

1
Out of stock

29

PATCH 9

80F-21989-00-00

1
Out of stock

30

PATCH 10

80F-21997-00-00

1
Out of stock

31

SCREW, BINDING

98907-08016-00

1
Out of stock

32

WASHER(6TA)

92907-08600-00

—

$2.52

In stock

33

WASHER(JN5)

92907-08100-00

—

$5.98

In stock

34

NUT, CAP

95307-08800-00

—
Out of stock

35

REFLECTOR ASSEMBLY

81E-85110-00-00

1
Out of stock

36

BASE, REFLECTOR

80F-85115-00-00

1
Out of stock

37

NUT, NYLON

95707-05300-00

—

$2.74

In stock

38

REAR REFLECTOR ASSY

81G-85130-00-00

—

$33.55

In stock
