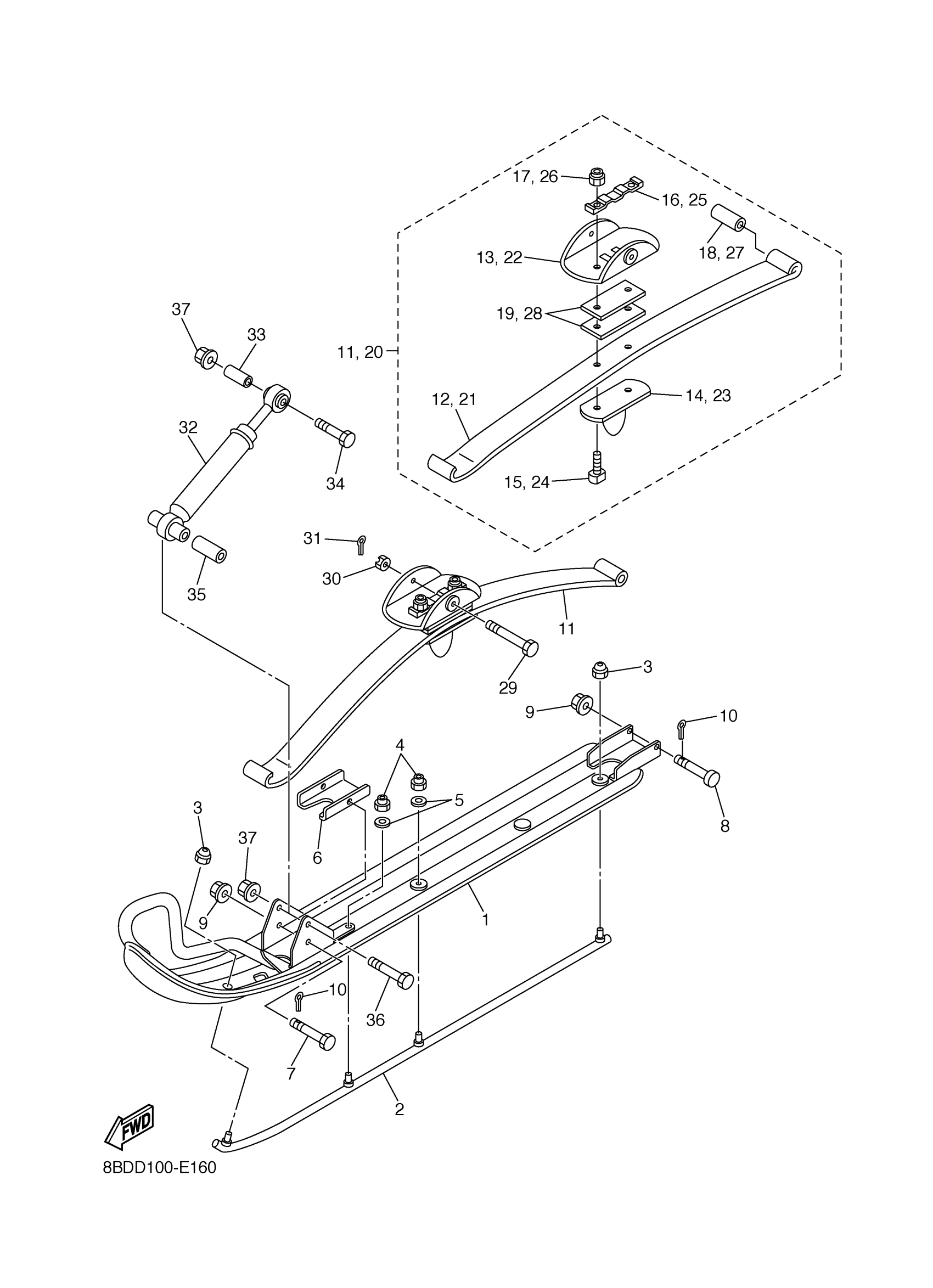

Find the part on the Ski diagram for your 2006 Yamaha Bravo (BR250TL1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Yamaha Bravo (BR250TL1) Ski Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI COMP. 1

8BD-23710-00-00

—
Out of stock

2

RUNNER 1

8E3-23731-01-00

1
Out of stock

3

NUT, SELF-LOCKING

90185-08169-00

1
Out of stock

4

NUT

90185-08055-00

1
Out of stock

5

WASHER(6TA)

92907-08600-00

1
Out of stock

6

PLATE, WEAR

888-23735-00-00

—
Out of stock

7

BOLT PIN HOLE HEXAGON(8E6)

90102-08028-00

1
Out of stock

8

BOLT, PIN HOLE (8A7)

90102-08027-00

1
Out of stock

9

NUT, NYLON

95717-08300-00

1
Out of stock

10

PIN, COTTER (648)

91490-20015-00

1
Out of stock

11

SPRING ASSY 1

8BD-23760-00-00

—
Out of stock

12

. LEAF 1

8BD-23761-00-00

1
Out of stock

13

SADDLE

8G6-23766-00-00

—
Out of stock

14

. SEAT, SPRING 1

878-23768-00-00

1
Out of stock

15

. BOLT

8BD-23767-00-00

1
Out of stock

16

WASHER, ROCK (8J5)

90215-10155-00

—
Out of stock

17

NUT, SELF-LOCKING (8J8)

90185-10085-00

—
Out of stock

18

BUSH

8BD-2376B-00-00

—
Out of stock

19

. SPACER

8BD-23787-00-00

1
Out of stock

20

SPRING ASSY 2

8BD-23770-00-00

—
Out of stock

21

. LEAF 1

8BD-23761-00-00

1
Out of stock

22

SADDLE

8G6-23766-00-00

—
Out of stock

23

. SEAT, SPRING 1

878-23768-00-00

1
Out of stock

24

. BOLT

8BD-23767-00-00

1
Out of stock

25

WASHER, ROCK (8J5)

90215-10155-00

—
Out of stock

26

NUT, SELF-LOCKING (8J8)

90185-10085-00

—
Out of stock

27

BUSH

8BD-2376B-00-00

—
Out of stock

28

. SPACER

8BD-23787-00-00

1
Out of stock

29

BOLT, PIN HOLE (8G6)

90102-12030-00

—
Out of stock

30

NUT, CASTLE

95307-12900-00

—
Out of stock

31

PIN, COTTER

91401-30025-00

—
Out of stock

32

CUSHION ASSY

8J6-23350-00-00

—
Out of stock

33

COLLAR (878)

90387-08262-00

—
Out of stock

34

BOLT, HEXAGON

97017-08055-00

—
Out of stock

35

COLLAR (864)

90387-08224-00

—
Out of stock

36

BOLT(6TC)

97027-08070-00

—
Out of stock

37

NUT, NYLON

95717-08300-00

1
Out of stock
