1987 Yamaha Bravo T (Long Track (BR250TL) Engine Bracket Diagram

← All diagrams

Find the part on the Engine Bracket diagram for your 1987 Yamaha Bravo T (Long Track (BR250TL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

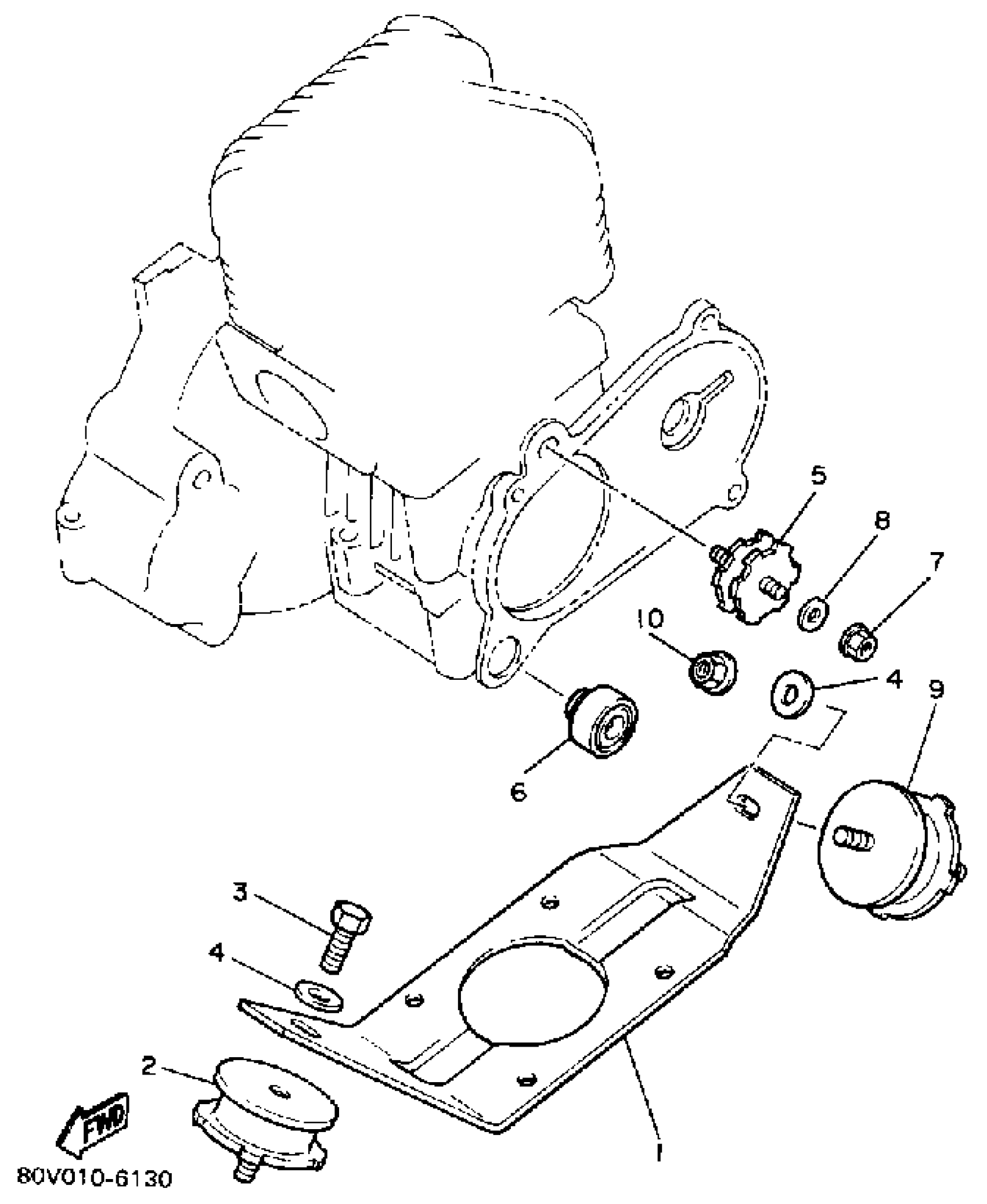

1987 Yamaha Bravo T (Long Track (BR250TL) Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

8R4-21411-00-00

—

$43.35

In stock

2

DAMPER, RUBBER 1

8R4-21485-00-00

1

$62.15

In stock

3

BOLT, WASHER BASED (7H3)

90105-10147-00

1

$8.75

In stock

4

WASHER, PLATE (856)

90201-10321-00

1

$5.43

In stock

5

DAMPER 2

8V7-21486-00-00

1

$53.20

In stock

6

DAMPER

8R4-21488-01-00

1

$11.58

In stock

7

NUT, FLANGE

95704-08500-00

1
Out of stock

8

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

9

DAMPER, ENGINE MOUNT 2

8F3-21486-00-00

1

$68.00

In stock

10

NUT (2Y5)

90179-10279-00

1

$6.09

In stock
