2001 Yamaha BR250TF 8BD8 Alternate Diagram

← All diagrams

Find the part on the Alternate diagram for your 2001 Yamaha BR250TF 8BD8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

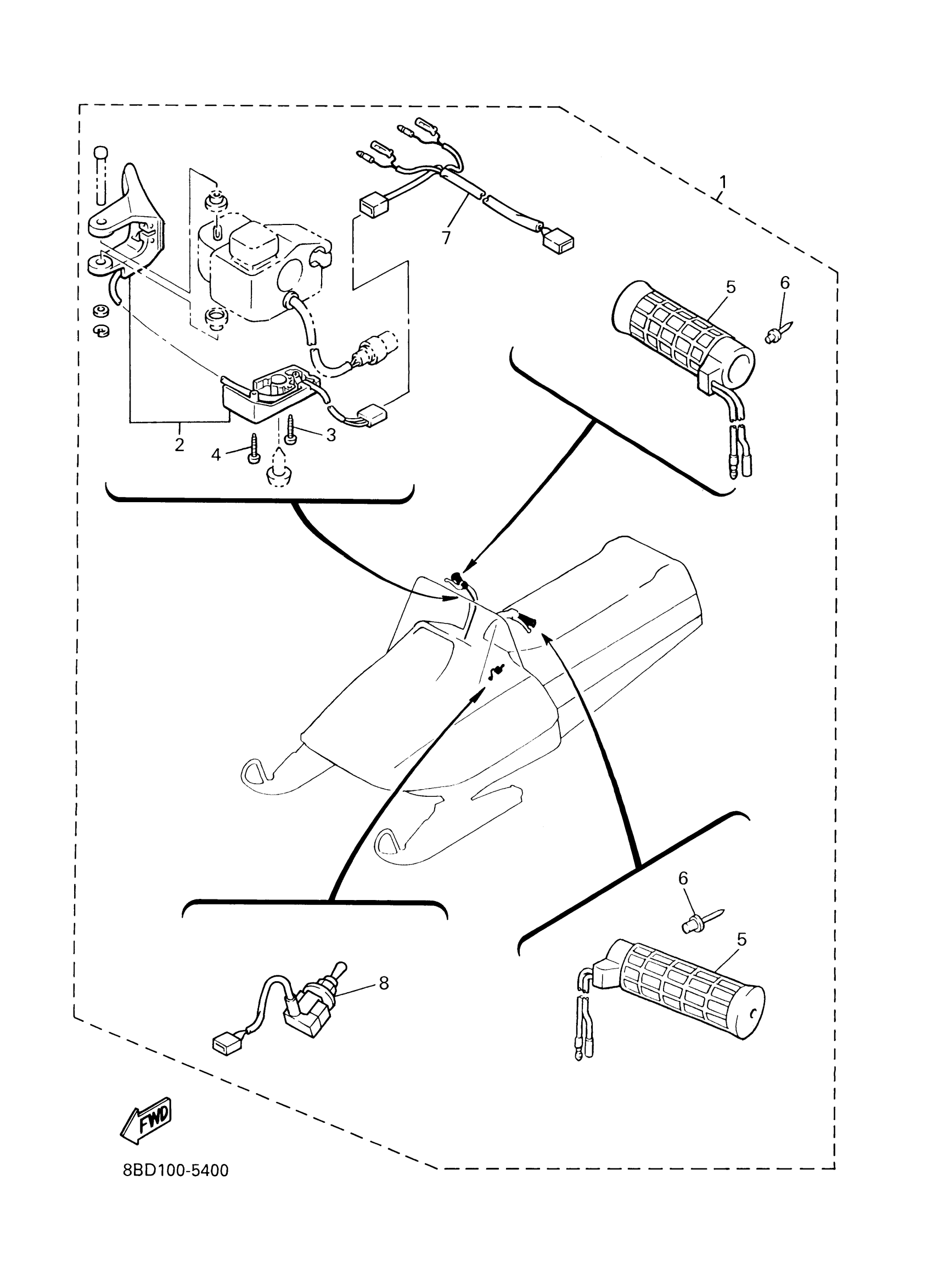

2001 Yamaha BR250TF 8BD8 Alternate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THUMB WARMER KIT

8BD-W8293-03-00

1
Out of stock

2

THUMB WARMER ASSY

8AU-82970-03-00

—
Out of stock

3

SCREW, TAPPING(88J)

97706-30620-00

1

$1.37

In stock

4

SCREW, PAN TAP.2 SLIT

97707-30630-00

—

$1.37

In stock

5

88T GRIP BLACK 1 PC

88T-26240-85-BK

1
Out of stock

6

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

7

. WIRE, SUB-LEAD

8BD-82318-00-00

1
Out of stock

8

SWITCH

8JD-82917-00-00

1
Out of stock
