2000 Yamaha Bravo LT (BR250TD) Steering Gate Diagram

← All diagrams

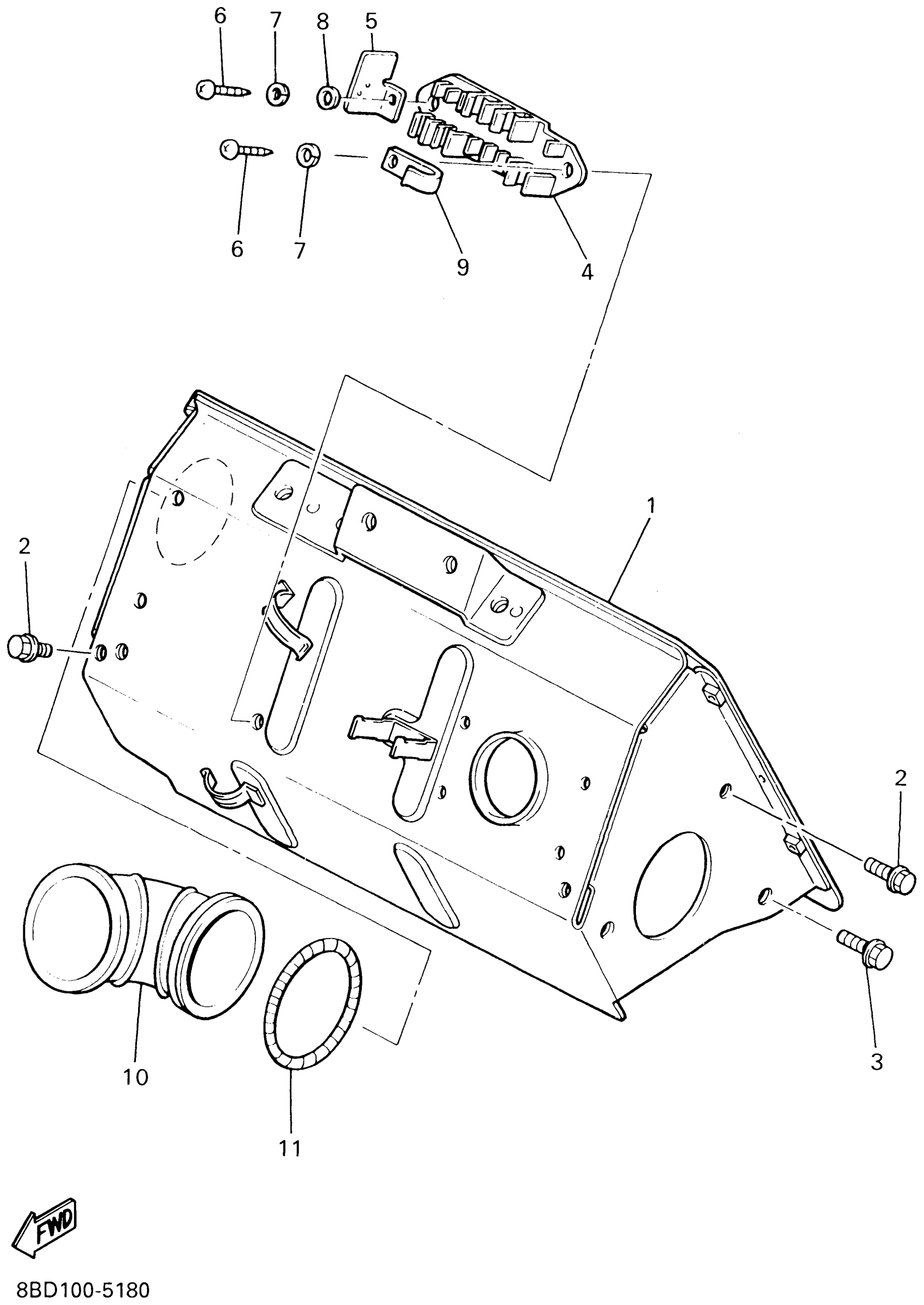

Find the part on the Steering Gate diagram for your 2000 Yamaha Bravo LT (BR250TD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha Bravo LT (BR250TD) Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GATE, STEERING

8BD-23871-00-00

—
Out of stock

2

BOLT, FLANGE

95817-06012-00

1
Out of stock

3

BOLT, FLANGE(8AB)

95817-08020-00

1
Out of stock

4

HOLDER, COUPLER

8F3-21794-00-00

—
Out of stock

5

SHIELD, HEAT

8AE-23892-00-00

—
Out of stock

6

SCREW, PAN HEAD(3TJ)

98507-06016-00

1
Out of stock

7

WASHER(6TA)

92907-06600-00

1
Out of stock

8

WASHER(6TA)

92907-06200-00

1
Out of stock

9

CLAMP

90465-08028-00

1
Out of stock

10

PIPE, SUCTION

8A5-14423-00-00

1
Out of stock

11

SPRING TENSION 808144550000

90506-06083-00

1
Out of stock
