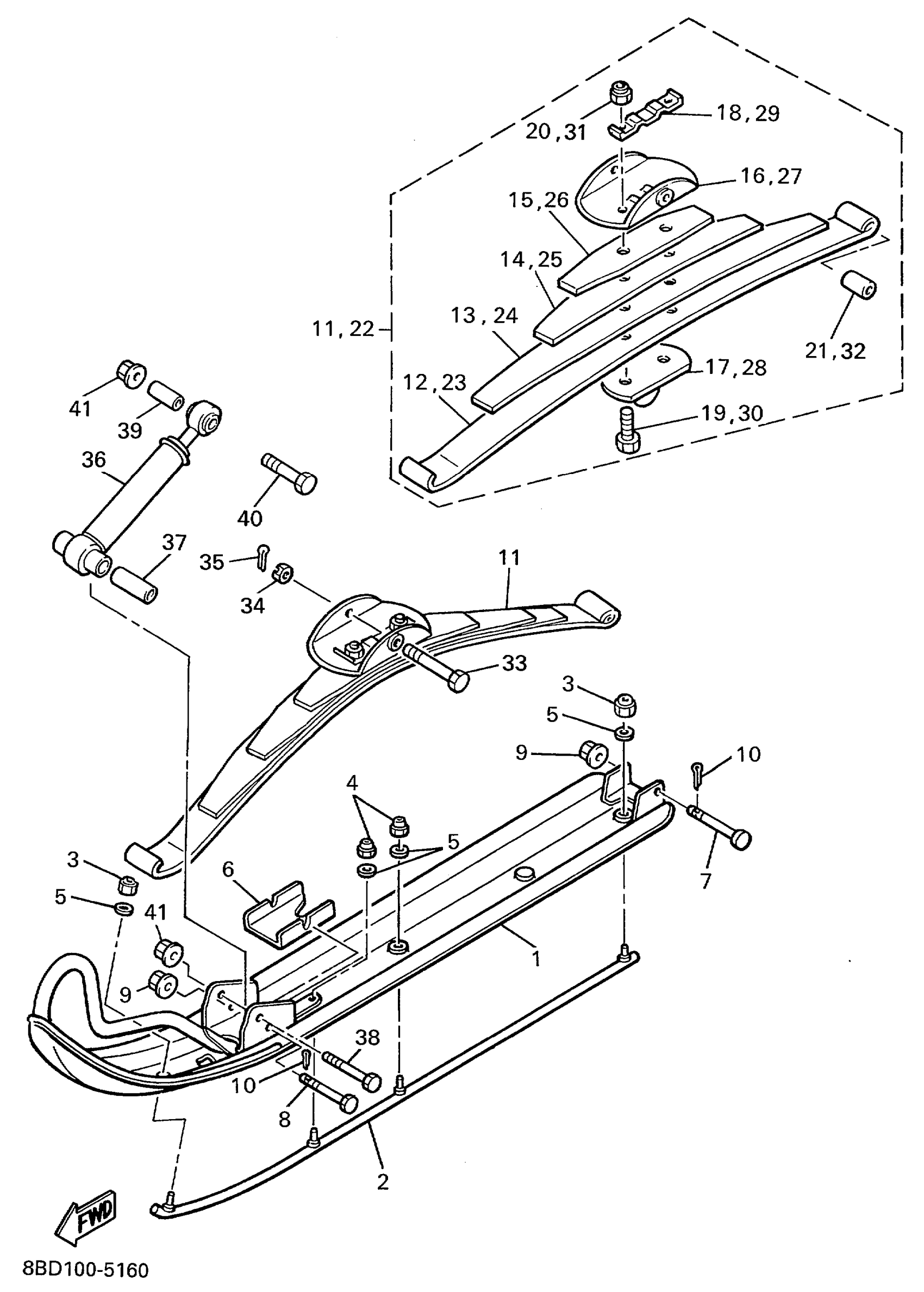

Yamaha BR250TC (BRAVO LT) 8BD6 1999 SKI Diagram

#

Description
Price

1

SKI COMP. 1

8E3-23710-09-00

Unavailable

2

RUNNER 1

8E3-23731-01-00

$32.20

3

NUT, SELF-LOCKING

90185-08169-00

$7.09

4

NUT

90185-08055-00

$8.31

5

WASHER(6TA)

92907-08600-00

$2.52

6

PLATE, WEAR

888-23735-00-00

$60.09

7

BOLT PIN HOLE HEXAGON(8E6)

90102-08028-00

$8.14

8

BOLT, PIN HOLE (8A7)

90102-08027-00

$7.35

9

NUT, NYLON

95717-08300-00

$2.57

10

PIN, COTTER (648)

91490-20015-00

$1.85

11

SPRING ASSY 1

8M8-23760-10-00

Unavailable

12

LEAF 1

888-23761-10-00

Unavailable

13

LEAF 2

865-23762-10-00

Unavailable

14

LEAF 3

899-23763-10-00

$33.34

15

LEAF 4

899-23764-10-00

Unavailable

16

SADDLE

8G6-23766-00-00

$32.37

17

. SEAT, SPRING 1

878-23768-00-00

$18.71

18

WASHER, ROCK (8J5)

90215-10155-00

$11.66

19

. BOLT

90109-105E1-00

Unavailable

20

NUT, SELF-LOCKING (8J8)

90185-10085-00

$2.57

21

COLLAR

90387-08478-00

Unavailable

22

SPRING ASSY 2

8M8-23770-10-00

Unavailable

23

LEAF 1

888-23761-10-00

Unavailable

24

LEAF 2

865-23762-10-00

Unavailable

25

LEAF 3

899-23763-10-00

$33.34

26

LEAF 4

899-23764-10-00

Unavailable

27

SADDLE

8G6-23766-00-00

$32.37

28

. SEAT, SPRING 1

878-23768-00-00

$18.71

29

WASHER, ROCK (8J5)

90215-10155-00

$11.66

30

. BOLT

90109-105E1-00

Unavailable

31

NUT, SELF-LOCKING (8J8)

90185-10085-00

$2.57

32

COLLAR

90387-08478-00

Unavailable

33

BOLT, PIN HOLE (8G6)

90102-12030-00

$11.28

34

NUT, CASTLE

95307-12900-00

$5.85

35

PIN, COTTER

91401-30025-00

$6.18

36

CUSHION ASSY

8J6-23350-00-00

$145.14

37

COLLAR (878)

90387-08262-00

$9.02

38

BOLT, HEXAGON

97017-08055-00

$6.88

39

COLLAR (864)

90387-08224-00

$7.52

40

BOLT(6TC)

97027-08070-00

$6.88

41

NUT, NYLON

95717-08300-00

$2.57
