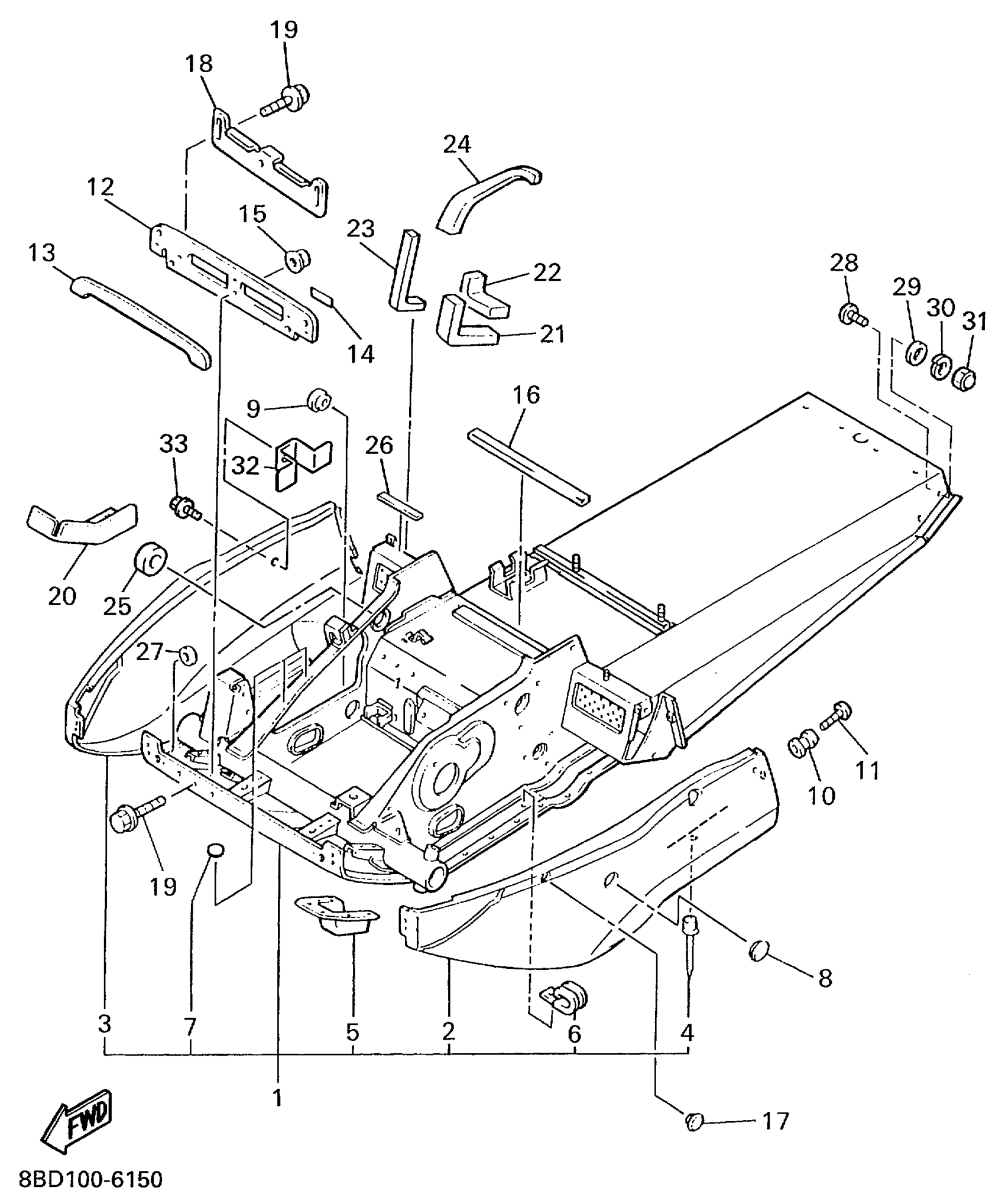

Yamaha BR250TC (BRAVO LT) 8BD6 1999 FRAME Diagram

#

Description
Price

1

FRAME COMP.

8BD-21910-00-00

Unavailable

2

HOOD 1

84A-21982-00-00

Unavailable

3

HOOD 2

84A-21983-00-00

$234.78

4

RIVET, BLIND

90267-48060-00

$2.00

5

COVER 2

80F-2198G-00-00

$25.02

6

CLAMP

90465-08028-00

$4.62

7

SPACER

80F-21998-00-00

$11.69

8

PLUG (8K4)

90338-40099-00

$11.89

9

GROMMET 117217730000

90480-40047-00

$3.91

10

. HOLDER, LATCH

8M6-77175-00-00

$12.72

11

SCREW, BINDING

98907-06030-00

$5.94

12

COVER 1

8V7-2198F-00-00

$41.20

13

DAMPER 1

8V7-77198-01-00

Unavailable

14

LABEL,WARNING 2

8BE-77762-00-00

Unavailable

15

NUT, FLANGE(4MV)

95707-06500-00

$0.78

16

SHIELD, NOISE 1

8R4-23891-00-00

$3.49

17

PLUG (8R4)

90338-09127-00

$3.74

18

COVER 2

8V7-2198G-00-00

$28.42

19

BOLT, FLANGE

95817-06012-00

$1.49

20

SHIELD, HEAT

80F-2199H-00-00

Unavailable

21

PATCH 1

8V7-21961-00-00

$7.05

22

PATCH 1

8V7-21961-00-00

$7.05

23

PATCH 3

8V7-21963-00-00

Unavailable

24

PATCH 4

82X-21964-00-00

Unavailable

25

PATCH 7

80F-21967-00-00

Unavailable

26

DAMPER, PLATE

90520-10012-00

Unavailable

27

PATCH 9

80F-21989-00-00

Unavailable

28

SCREW, BINDING

98907-08016-00

Unavailable

29

WASHER(6TA)

92907-08600-00

$2.52

30

WASHER(JN5)

92907-08100-00

$5.98

31

NUT, CAP

95307-08800-00

Unavailable

32

STAY, BELT

8BD-77338-00-00

Unavailable

33

BOLT, FLANGE(JN5)

95817-08016-00

$4.12
