1997 Yamaha Bravo LT (BR250TA) Primary Sheave Diagram

← All diagrams

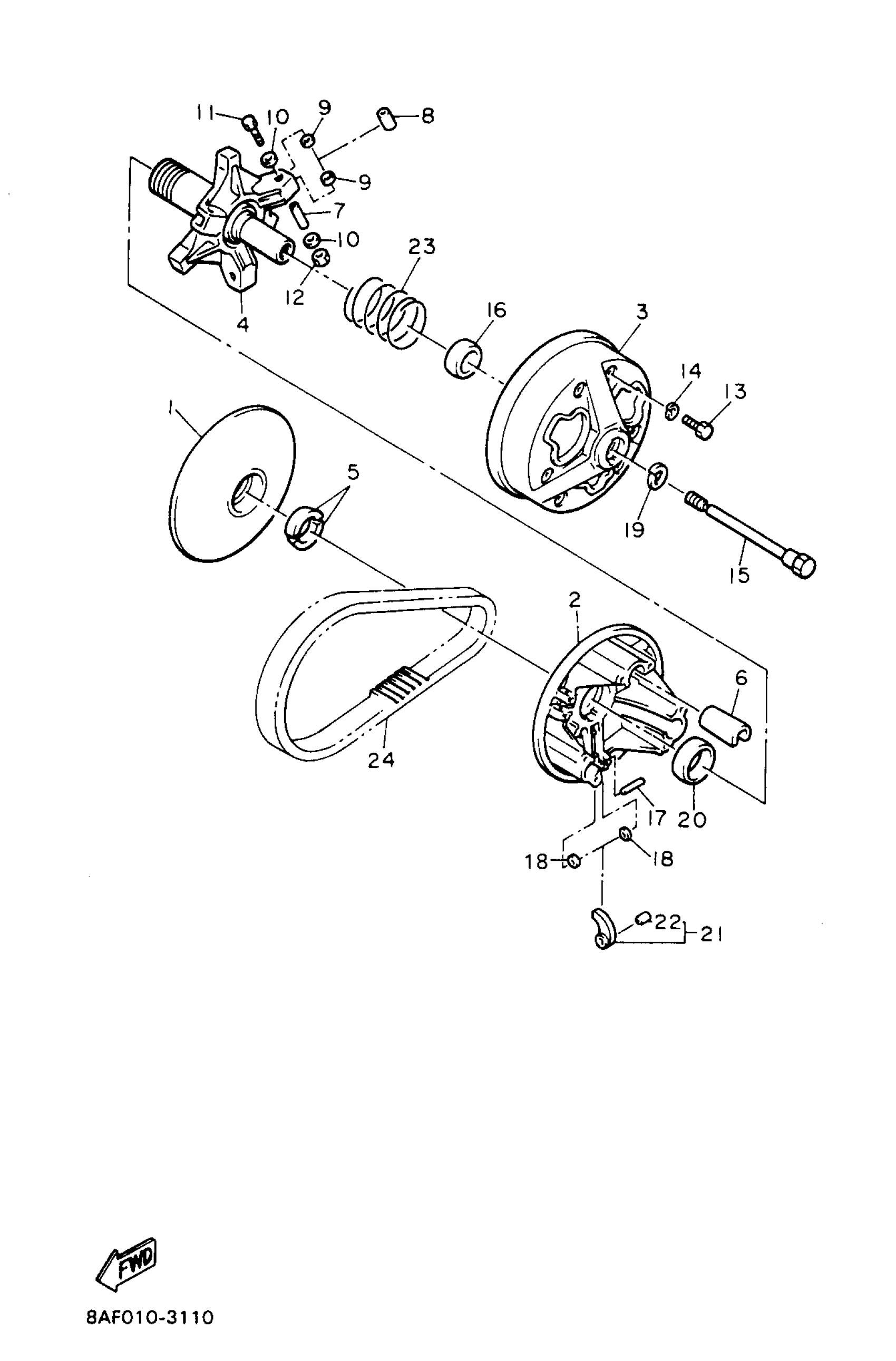

Find the part on the Primary Sheave diagram for your 1997 Yamaha Bravo LT (BR250TA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Bravo LT (BR250TA) Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHEAVE, PRIMARY FIXED

84J-17611-00-00

—

$70.98

In stock

2

. SHEAVE, PRIMARY SLIDING

8V0-17621-01-00

1
Out of stock

3

CAP

8V0-17631-00-00

—

$73.48

In stock

4

. SPIDER COMPLETE

8V0-17640-02-00

1
Out of stock

5

STOPPER

8V0-17639-00-00

1

$10.52

In stock

6

SLIDER

88X-17653-00-00

1

$11.51

In stock

7

COLLAR(83R)

90387-057W5-00

1

$11.60

In stock

8

COLLAR(84E)

90387-087W7-00

1

$12.29

In stock

9

WASHER, PLATE(87G)

90202-08205-00

1
Out of stock

10

WASHER, PLATE(83R)

90201-050P9-00

1
Out of stock

11

BOLT, HEXAGON

97027-05035-00

—
Out of stock

12

NUT, U

95617-05100-00

1

$6.68

In stock

13

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

14

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

15

BOLT (L=156.5MM)

8V0-17647-10-00

1

$21.45

In stock

16

BUSH(83R)

90389-28032-00

—

$55.86

In stock

17

PIN, DOWEL (8V8)

93607-44190-00

—
Out of stock

18

WASHER, PLATE (8V8)

90201-077F5-00

—
Out of stock

19

WASHER(JN5)

92907-16100-00

—

$12.08

In stock

20

BUSH (81H)

90389-40029-00

—

$63.09

In stock

21

WEIGHT, WITH BUSH

8V8-W176A-00-00

—

$60.68

In stock

22

BUSH(83V)

90386-07152-00

—

$31.20

In stock

23

SPRING, COMPRESSION(82R)

90501-554E8-00

—

$32.40

In stock

24

V-BELT

89X-17641-01-00

1

$48.52

In stock
