1990 Yamaha Bravo (BR250P) Frame Diagram

← All diagrams

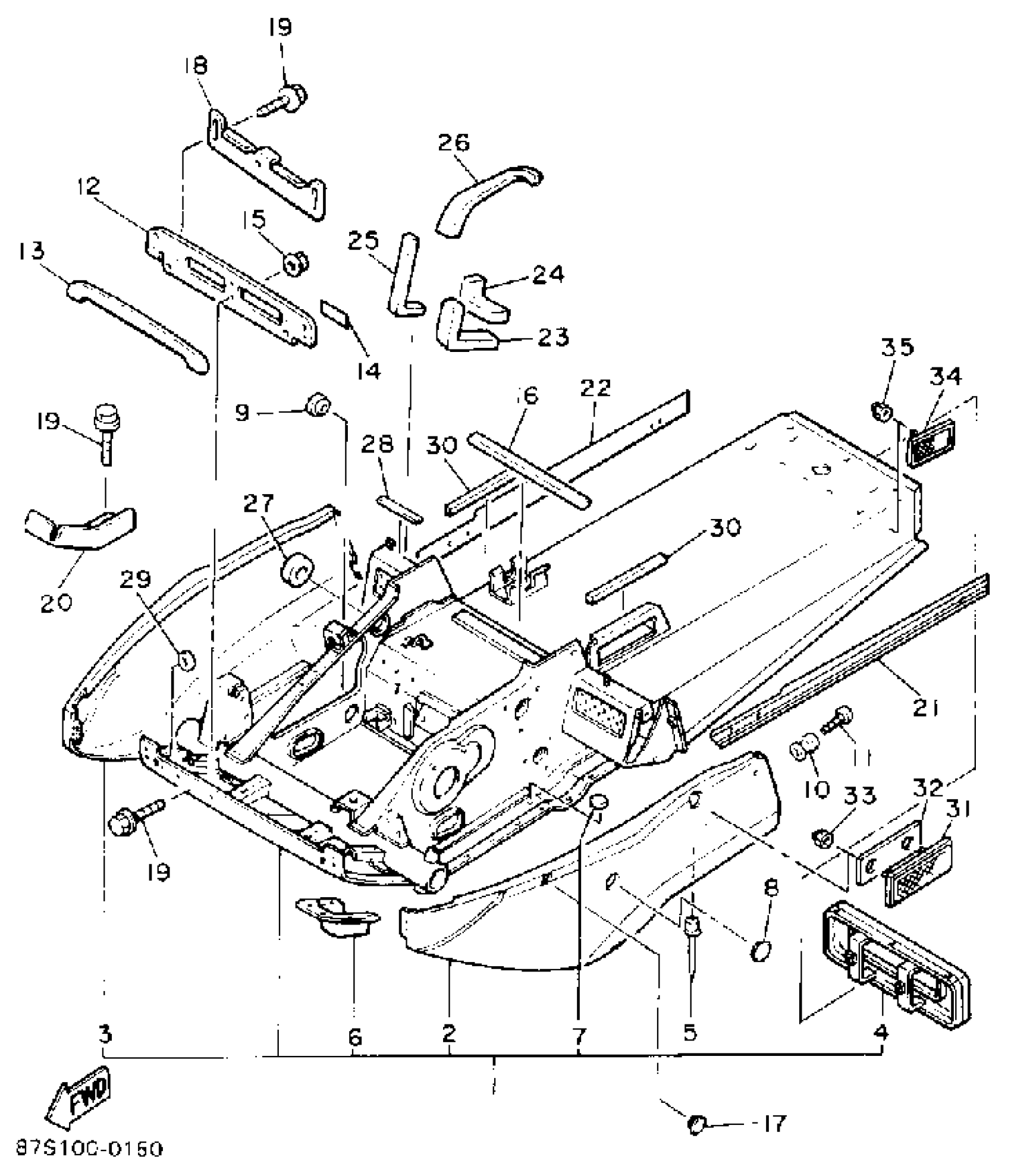

Find the part on the Frame diagram for your 1990 Yamaha Bravo (BR250P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Bravo (BR250P) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

86A-21910-00-00

1
Out of stock

2

HOOD 1

84A-21982-00-00

—
Out of stock

3

HOOD 2

84A-21983-00-00

—

$234.78

In stock

4

. BRACKET, TAIL LITE

8R4-21933-00-00

1
Out of stock

5

RIVET, BLIND

90267-48060-00

1

$2.00

In stock

6

COVER 2

80F-2198G-00-00

—

$25.02

In stock

7

SPACER

80F-21998-00-00

—

$11.69

In stock

8

PLUG (8K4)

90338-40099-00

1

$11.89

In stock

9

GROMMET 117217730000

90480-40047-00

1

$3.91

In stock

10

. HOLDER, LATCH

8M6-77175-00-00

1

$12.72

In stock

11

SCREW, BINDING

98907-06030-00

1

$5.94

In stock

12

COVER 1

8V7-2198F-00-00

—

$95.74

In stock

13

DAMPER 1

8V7-77198-01-00

1
Out of stock

14

LABEL, WARNING 3

8V7-77763-01-00

1
Out of stock

15

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

16

SHIELD, NOISE 1

8R4-23891-00-00

—

$3.49

In stock

17

PLUG (8R4)

90338-09127-00

—

$3.74

In stock

18

COVER 2

8V7-2198G-00-00

—

$28.42

In stock

19

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

20

SHIELD, HEAT

80F-2199H-00-00

1
Out of stock

21

EMBLEM 4

86A-77354-70-00

1
Out of stock

22

EMBLEM 5

86A-77355-70-00

1
Out of stock

23

PATCH 1

8V7-21961-00-00

—

$7.05

In stock

24

PATCH 1

8V7-21961-00-00

—

$7.05

In stock

25

PATCH 3

8V7-21963-00-00

1
Out of stock

26

PATCH 4

82X-21964-00-00

1
Out of stock

27

PATCH 7

80F-21967-00-00

1
Out of stock

28

DAMPER, PLATE

90520-10012-00

1
Out of stock

29

PATCH 9

80F-21989-00-00

1
Out of stock

30

PATCH 10

80F-21997-00-00

1
Out of stock

31

REFLECTOR ASSEMBLY

81E-85110-00-00

1
Out of stock

32

BASE, REFLECTOR

80F-85115-00-00

1
Out of stock

33

NUT, NYLON

95707-05300-00

—

$2.74

In stock

34

REAR REFLECTOR ASSY

3Y6-85130-02-00

1

$22.72

In stock

35

NUT, NYLON

95707-05300-00

—

$2.74

In stock
