1985 Yamaha Bravo (BR250J) Frame Diagram

← All diagrams

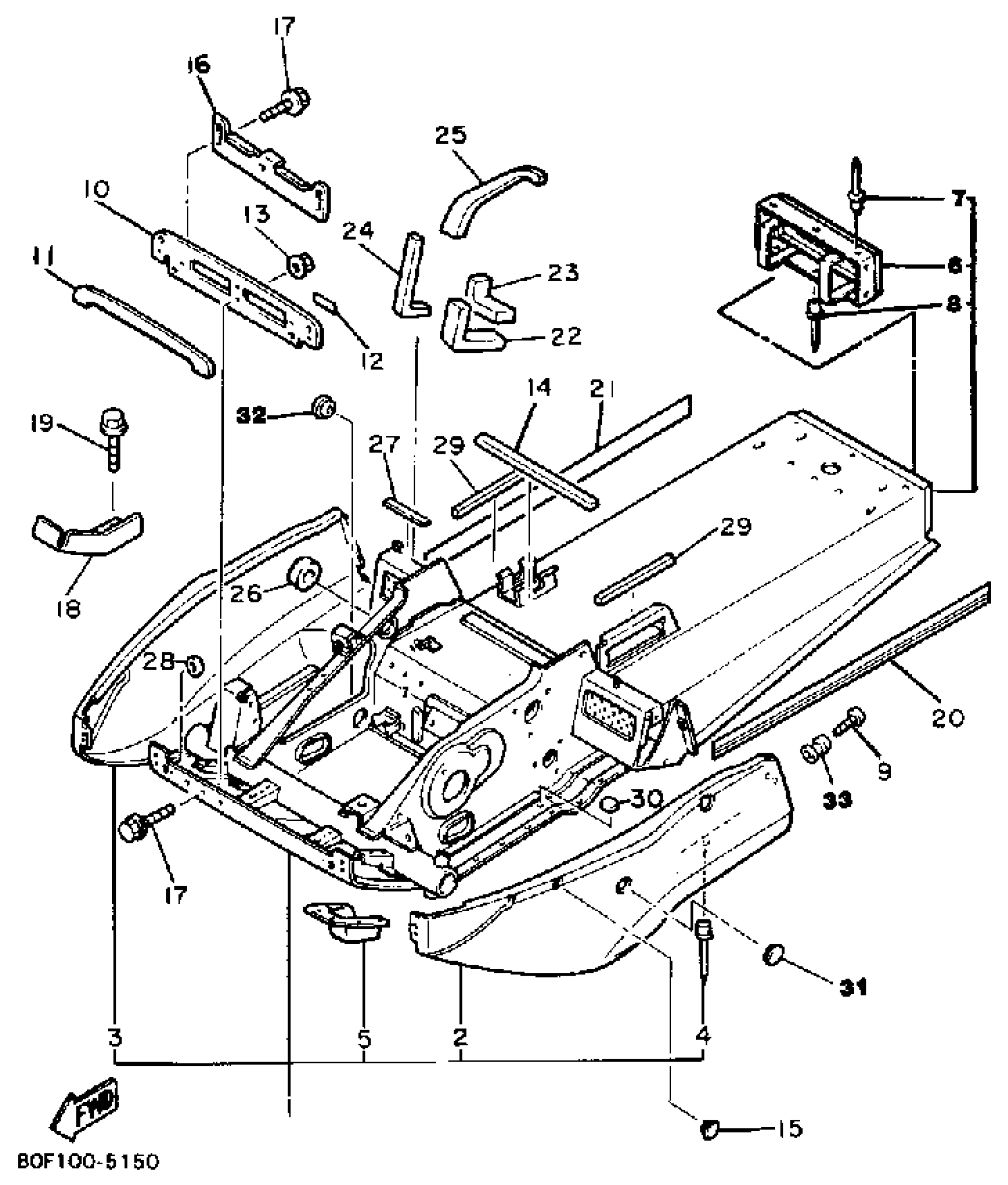

Find the part on the Frame diagram for your 1985 Yamaha Bravo (BR250J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha Bravo (BR250J) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

80F-21910-09-00

1
Out of stock

2

HOOD 1

84A-21982-00-00

—
Out of stock

3

HOOD 2

84A-21983-00-00

—

$234.78

In stock

4

RIVET, BLIND

90267-48060-00

1

$2.00

In stock

5

COVER 2

80F-2198G-00-00

—

$25.02

In stock

6

. BRACKET, TAIL LITE

8R4-21933-00-00

1
Out of stock

7

RIVET, BLIND (8H4)

90267-48053-00

1

$2.31

In stock

8

RIVET, BLIND

90267-48060-00

1

$2.00

In stock

9

SCREW, BINDING

98907-06030-00

1

$5.94

In stock

10

COVER 1

8V7-2198F-00-00

—

$95.74

In stock

11

DAMPER 1

8V7-77198-01-00

1
Out of stock

12

LABEL,WARNING 2

8BE-77762-00-00

1
Out of stock

12

LABEL, WARNING 3

8V7-77763-01-00

1
Out of stock

13

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

14

SHIELD, NOISE 1

8R4-23891-00-00

—

$3.49

In stock

15

PLUG (8R4)

90338-09127-00

—

$3.74

In stock

16

COVER 2

8V7-2198G-00-00

—

$28.42

In stock

17

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

18

SHIELD, HEAT

80F-2199H-00-00

1
Out of stock

19

BOLT, FLANGE

95812-06010-00

—

$2.75

In stock

20

EMBLEM 4

80F-77354-00-00

1
Out of stock

20

EMBLEM 4

80V-77354-00-00

1
Out of stock

21

EMBLEM 5

80F-77355-00-00

1
Out of stock

21

EMBLEM 5

80V-77355-00-00

1
Out of stock

22

PATCH 1

8V7-21961-00-00

—

$7.05

In stock

23

PATCH 2

(8V7-21962-00-00)

1
Out of stock

24

PATCH 3

8V7-21963-00-00

1
Out of stock

25

PATCH 4

(8V7-21964-00-00)

1
Out of stock

26

PATCH 7

80F-21967-00-00

1
Out of stock

27

DAMPER, PLATE

90520-10012-00

1
Out of stock

28

PATCH 9

80F-21989-00-00

1
Out of stock

29

PATCH 10

80F-21997-00-00

1
Out of stock

30

SPACER

80F-21998-00-00

—

$11.69

In stock

31

PLUG (8K4)

90338-40099-00

—

$11.89

In stock

32

GROMMET 117217730000

90480-40047-00

—

$3.91

In stock

33

. HOLDER, LATCH

8M6-77175-00-00

1

$12.72

In stock
