1985 Yamaha Bravo (BR250J) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1985 Yamaha Bravo (BR250J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

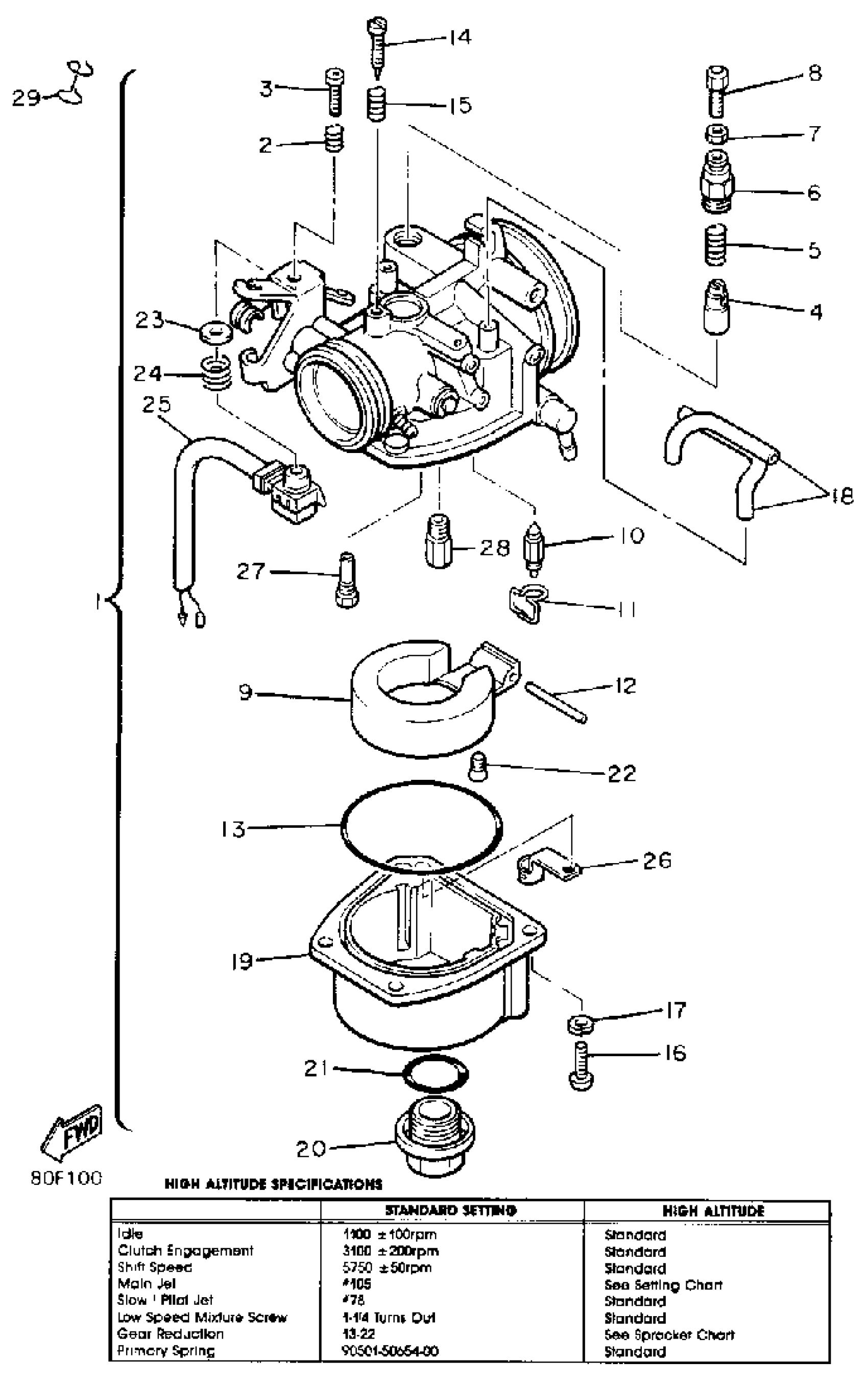

1985 Yamaha Bravo (BR250J) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY 1

99999-02986-00

1
Out of stock

2

SPRING, THROTTLE VALVE

80F-14131-00-00

1
Out of stock

3

SCREW, THROTTLE STOP

80F-14121-00-00

—

$9.25

In stock

4

PLUNGER, STARTER

371-14993-60-00

1

$31.14

In stock

5

SPRING (8E7)

90501-08443-00

1

$8.63

In stock

6

CAP, PLUNGER

8A6-14969-00-00

1

$23.14

In stock

7

. NUT, CABLE ADJUSTING

8E7-14161-00-00

1
Out of stock

8

1

$19.06

In stock

9

FLOAT

8G6-14985-01-00

1

$32.43

In stock

10

VALVE,FLOAT

8E7-14546-01-00

1

$57.49

In stock

11

CLIP

633-14159-00-00

1

$13.88

In stock

12

. PIN, FLOAT ARM

663-14548-00-00

1

$5.34

In stock

13

WASHER, FLOAT CHAMBER

8G6-14984-00-00

1

$16.62

In stock

14

SCREW, ADJUST

8G6-14521-00-00

—

$11.28

In stock

15

SPRING, COMPRESSION

90501-08214-00

1

$5.74

In stock

16

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

17

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

18

. PIPE

8R4-14994-00-00

1
Out of stock

19

BODY, FLOAT CHAMBER

(8M7-14980-00-00)

1
Out of stock

20

. ROD

8M7-14992-00-00

1
Out of stock

21

O-RING (8A6)

93210-19309-00

—

$4.91

In stock

22

SCREW, FLAT

98707-04008-00

1
Out of stock

23

PLATE

80F-14146-00-00

—
Out of stock

24

. SPRING, THROTTLE STOP

80F-14133-00-00

1
Out of stock

25

SWITCH, CARBURETOR

87S-8259A-01-00

—

$73.57

In stock

26

CLIP

80F-14137-01-00

—

$8.49

In stock

27

JET, SLOW (#78)

8G6-14948-18-00

—

$11.82

In stock

28

. JET, MAIN (#98)

8A6-14515-98-00

1
Out of stock

28

. JET, MAIN (#100)

8A6-14516-00-00

1
Out of stock

28

. JET, MAIN (#102)

8A6-14516-02-00

1
Out of stock

28

JET, MAIN (#105)

8A6-14516-05-00

—

$14.00

In stock

29

CLAMP

90465-10033-00

1
Out of stock
