1982 Yamaha BR250F Brake BR250F - G Diagram

← All diagrams

Find the part on the Brake BR250F - G diagram for your 1982 Yamaha BR250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

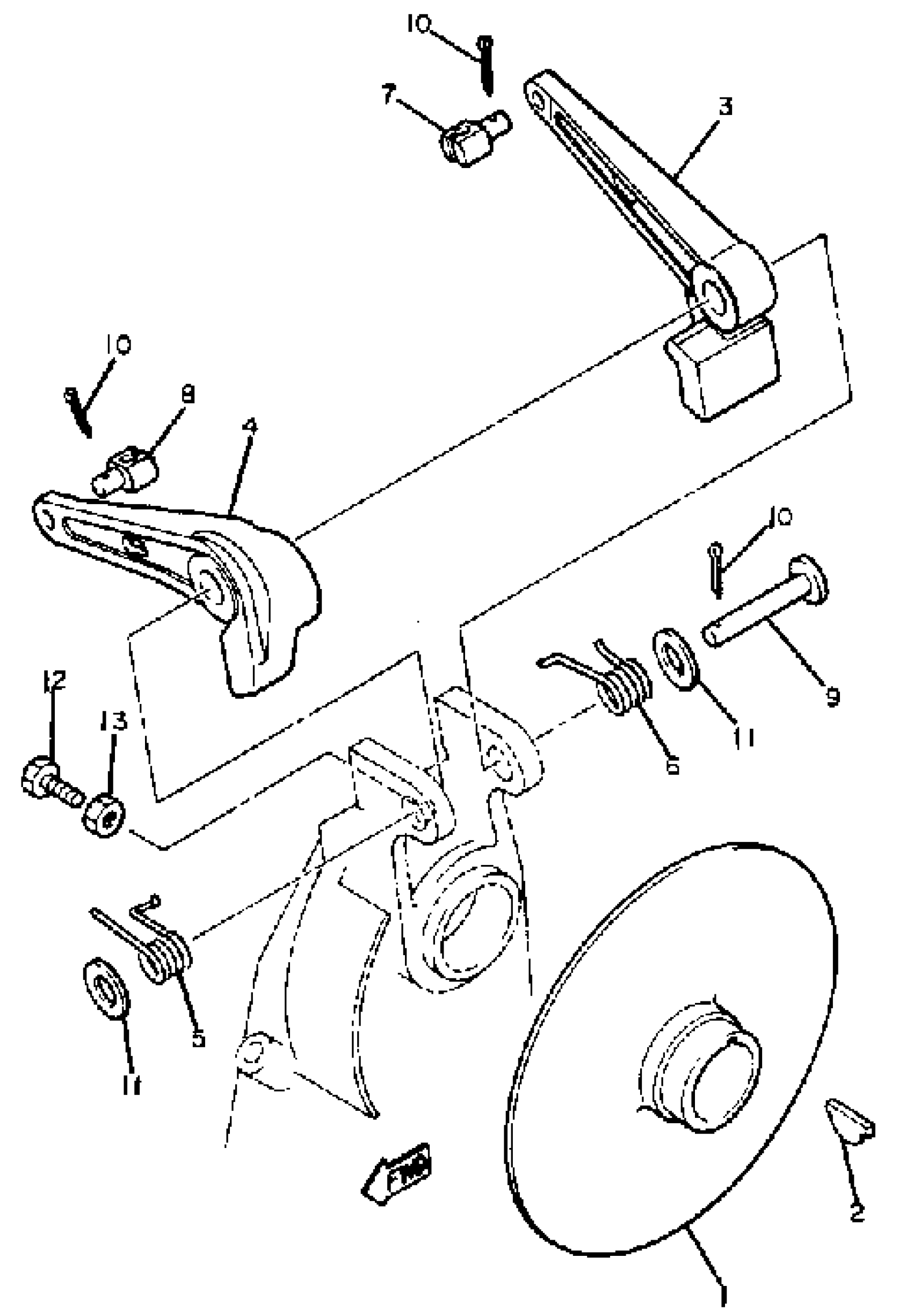

1982 Yamaha BR250F Brake BR250F - G Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISC, BRAKE

8R4-25711-00-00

—

$63.17

In stock

2

KEY

8J7-25848-00-00

1

$4.77

In stock

3

CALIPER BODY COMP.1

8BC-25730-00-00

—

$53.25

In stock

4

CALIPER BODY COMP. 2

8BC-25740-00-00

—

$53.25

In stock

5

SPRING, TORSION

(90508-29504-00)

1
Out of stock

6

SPRING, TORSION

(90508-29505-00)

1
Out of stock

7

PIN (810)

90249-06012-00

—

$9.91

In stock

8

PIN

90249-06009-00

1
Out of stock

9

PIN, W/ HOLE (8J2)

90240-08068-00

—

$5.29

In stock

10

PIN, COTTER

91490-20025-00

1

$1.31

In stock

11

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

12

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

13

NUT(650)

95380-06700-00

1

$6.17

In stock
