1987 Kawasaki Big Wheel Swing Arm Diagram

← All diagrams

Find the part on the Swing Arm diagram for your 1987 Kawasaki Big Wheel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

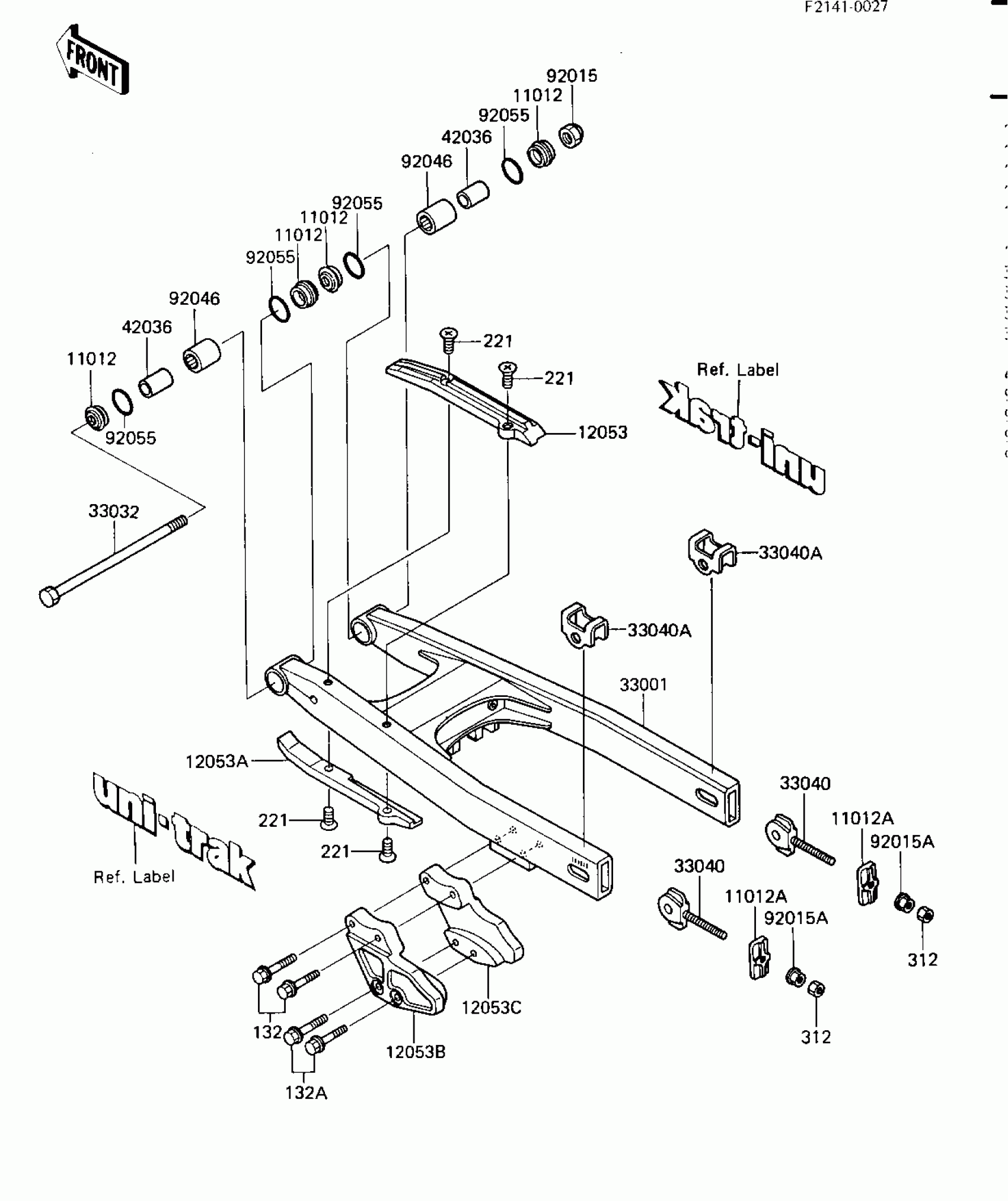

1987 Kawasaki Big Wheel Swing Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1263

1

$13.08

In stock

11012A

CAP,SWING ARM

11012-1411

1

$20.02

In stock

12053

GUIDE-CHAIN,FR,UPP

12053-1132

1
Out of stock

12053A

GUIDE-CHAIN,FR,LWR

12053-1133

1
Out of stock

12053B

GUIDE-CHAIN,RR,LH

12053-1203

1

$83.43

In stock

12053C

GUIDE-CHAIN,RR,RH

12053-1204

1

$83.43

In stock

33001

ARM-COMP-SWING

33001-1284

1

$420.62

In stock

33032

SHAFT-SWING ARM

33032-1116

1

$34.76

In stock

33040

ADJUSTER-CHAIN

33040-1065

1
Out of stock

33040A

ADJUSTER-CHAIN,OUTSIDE

33040-1066

1
Out of stock

42036

1

$10.25

In stock

92015

NUT,LOCK,12MM

92015-1774

1

$6.13

In stock

92015A

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92046

BEARING-NEEDLE

92046-1046

1

$24.62

In stock

92055

RING-O,SWING ARM

92055-1240

1
Out of stock

132

BOLT-FLANGED-SMALL,6X40

132G0640

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X45

132G0645

1
Out of stock

221

1

$2.92

In stock

312

NUT 6MM

312B0600

1
Out of stock
