1987 Kawasaki Big Wheel Optional Parts Diagram

← All diagrams

Find the part on the Optional Parts diagram for your 1987 Kawasaki Big Wheel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

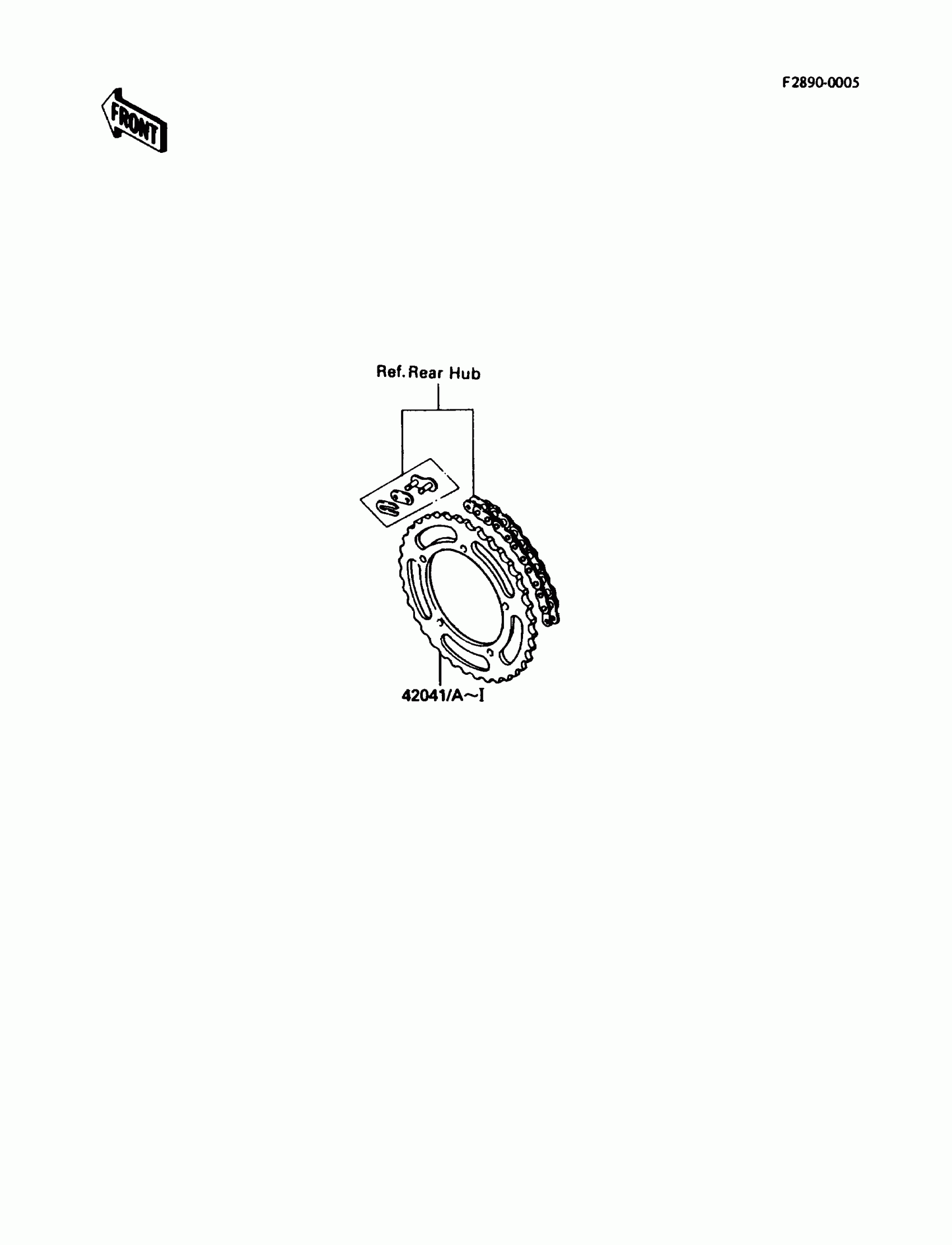

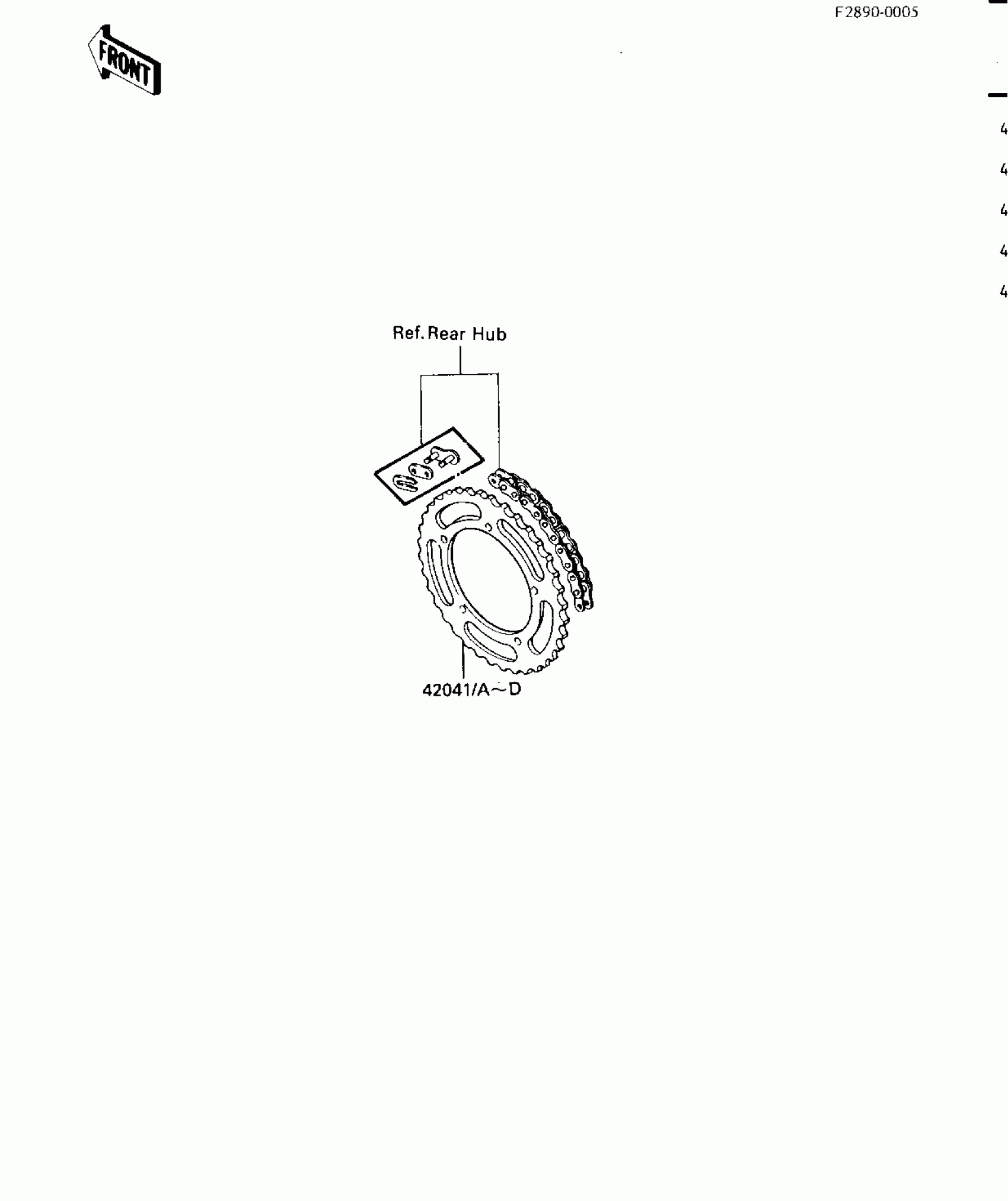

1987 Kawasaki Big Wheel Optional Parts Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

42041

SPROCKET-HUB,52T,AL

42041-1250

1

$109.37

In stock

42041A

SPROCKET-HUB,53T,AL

42041-1251

1

$109.37

In stock

42041B

SPROCKET-HUB,54T,AL

42041-1252

1

$138.58

In stock

42041C

SPROCKET-HUB,55T,AL

42041-1253

1

$109.37

In stock

42041D

SPROCKET-HUB,56T,AL

42041-1254

1

$109.37

In stock
