1987 Kawasaki Big Wheel Ignition Coil Diagram

← All diagrams

Find the part on the Ignition Coil diagram for your 1987 Kawasaki Big Wheel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

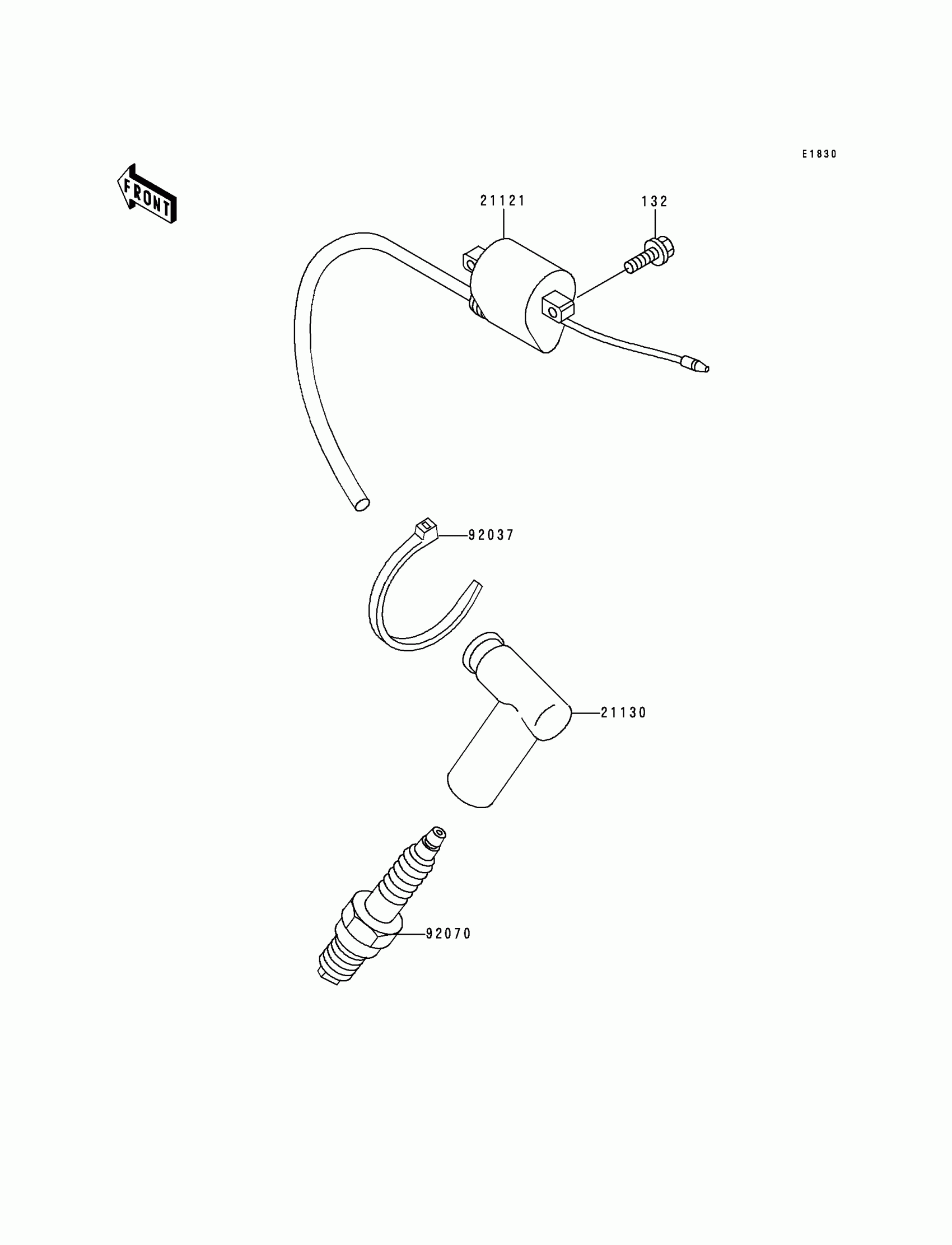

1987 Kawasaki Big Wheel Ignition Coil Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21121

COIL-IGNITION

21121-1057

1
Out of stock

21130

CAP-SPARK PLUG

21130-1006

1
Out of stock

21169

TERMINAL,PLUG CAP

21169-001

1
Out of stock

92037

CLAMP

92037-1173

1

$2.92

In stock

92070

1

$4.90

In stock

132

BOLT-FLANGED-SMALL,6X16

132G0616

1
Out of stock
