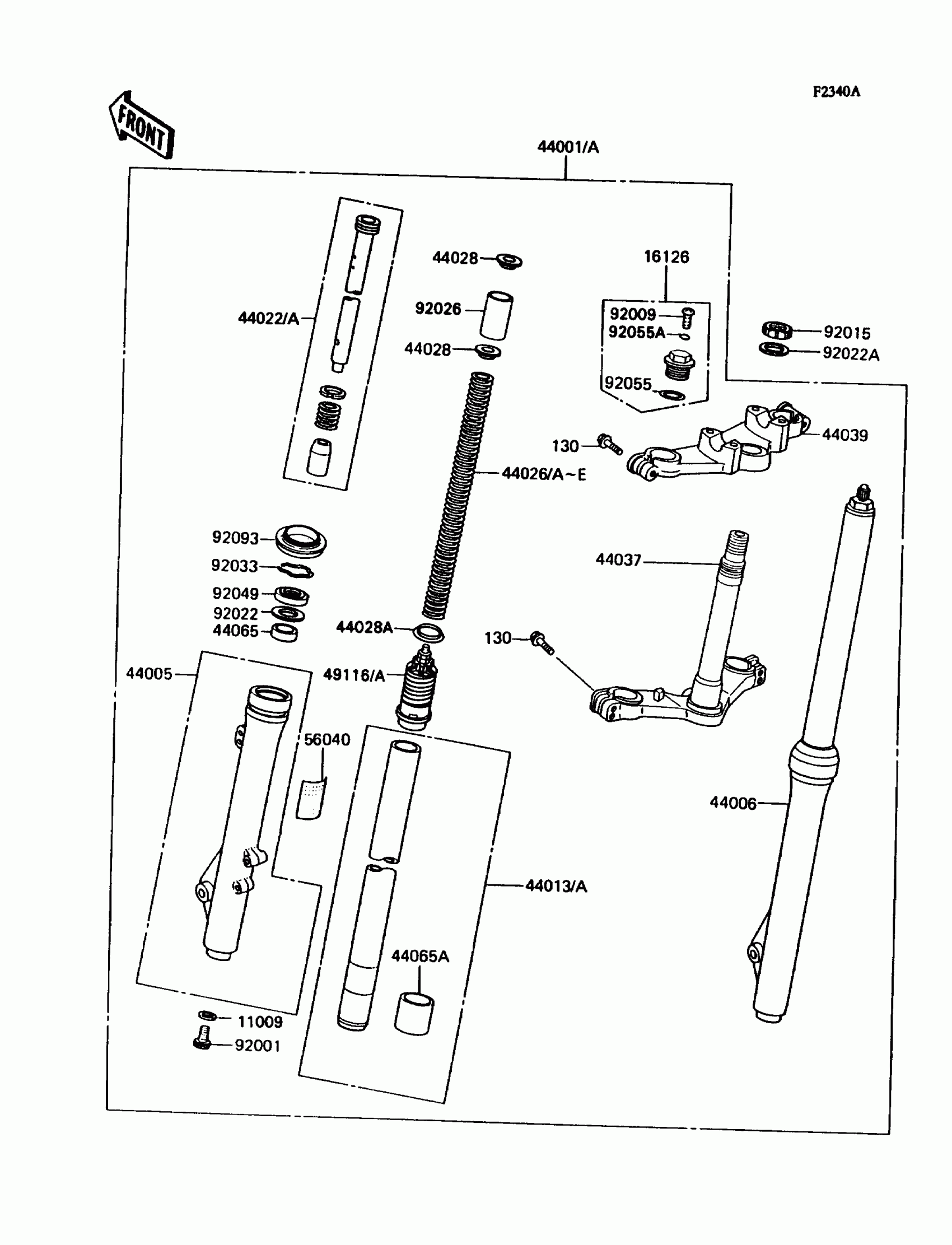

Kawasaki Big Wheel Front Fork(L3/N3) Diagram

#

Description
Price

11009

GASKET

44045-057

$3.86

16126

VALVE,AIR

16126-1230

$58.89

44001A

FORK-FRONT

44001-1737

$783.17

44005

PIPE-LEFT FORK OUTER

44005-1302

$284.49

44006

PIPE-RIGHT FORK OUTER

44006-1298

$199.37

44013A

PIPE-FORK INNER

44013-1299

$186.67

44022A

CYLINDER-FORK

44022-1244

$68.63

44026A

SPRING-FRONT FORK,K=0.29

44026-1437

$52.14

44026D

SPRING-FRONT FORK,K=0.28

44026-1449

$34.25

44026E

SPRING-FRONT FORK,K=0.30

44026-1450

$30.95

44028

GUIDE-FORK SPRING

44028-1004

Unavailable

44028A

GUIDE-FORK SPRING

44028-1068

Unavailable

44037

HOLDER-FORK UNDER

44037-1225

$193.06

44039

HOLDER-FORK UPPER

44039-1183

Unavailable

44065

BUSHING-FRONT FORK

44065-1097

Unavailable

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1098

Unavailable

49116A

VALVE-ASSY,FORK

49116-1082

$147.79

92001

BOLT,SOCKET,FORK CYLINDER

44041-040

$5.21

92009

SCREW

92009-1568

$5.74

92015

NUT,STEERING STEM,22MM

92015-1653

$13.20

92022

WASHER,FORK

92022-1801

$8.15

92022A

WASHER,STEERING STEM

92022-1873

$5.93

92026

SPACER,FORK SPRING

92026-1386

$5.80

92033

RING-SNAP

44044-015

$12.15

92049

SEAL-OIL,FORK

92049-1350

$24.34

92055

RING-O

92055-1318

$4.06

92055A

RING-O,2.8X6.6X1.9

92055-1441

$3.45

92093

SEAL,FORK OUTER TUBE

92093-1304

Unavailable

130

BOLT-FLANGED,8X35

130G0835

Unavailable
