1987 Kawasaki Big Wheel Carburetor Diagram

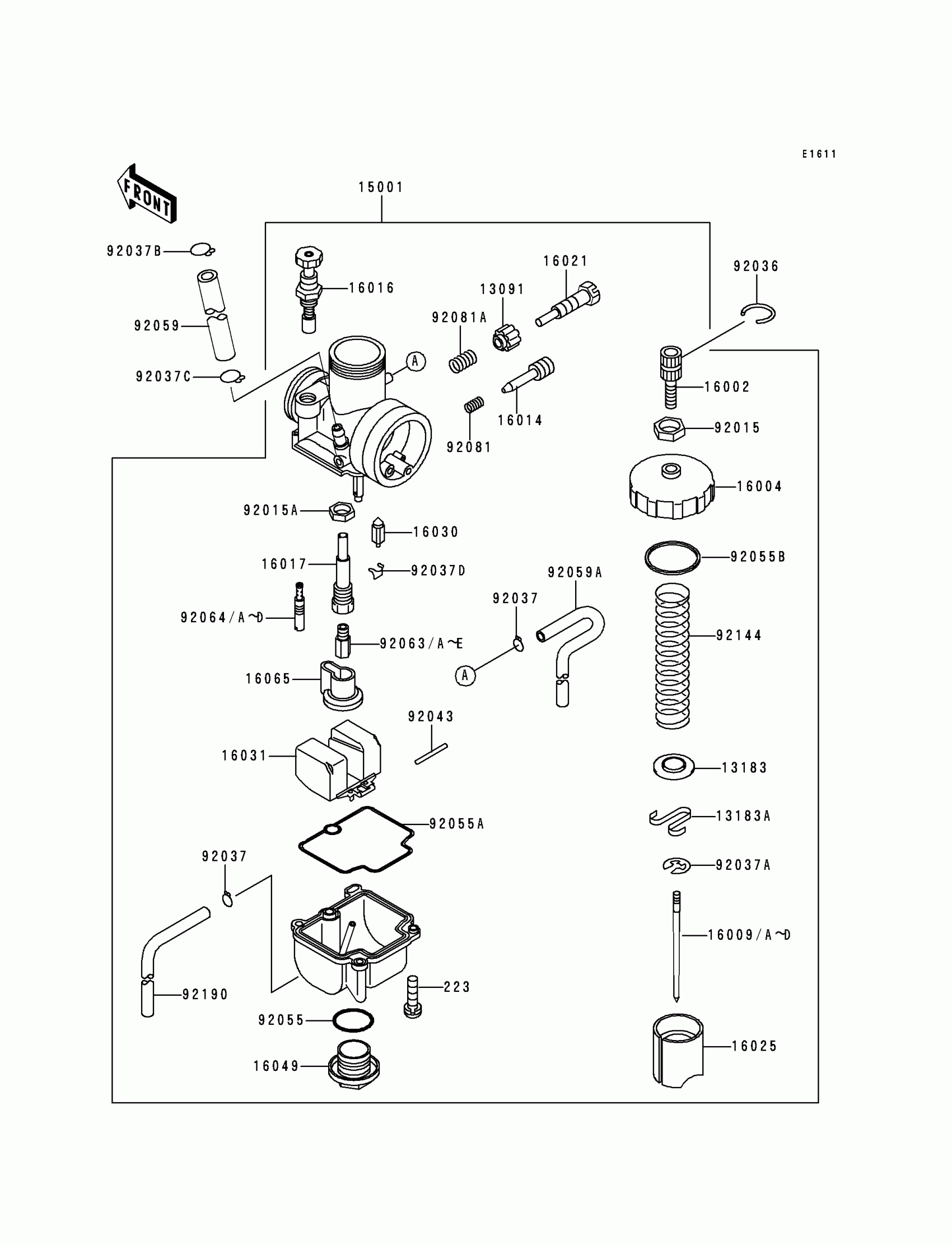

Find the part on the Carburetor diagram for your 1987 Kawasaki Big Wheel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
11009
GASKET,FLOAT CHAMBER
11009-1178
13159
CONNECTOR,THROTTLE
13159-1010
13168
LEVER,STARTER
13168-1289
13169
PLATE, LOCK
13169-1190
13169A
PLATE,TUBE CLAMP
13169-1226
14024
COVER,THROTTLE VALVE
14025-1494
16009
NEEDLE-JET,6EJ3
16009-1223
16016
PLUNGER,STARTER
16016-021
16021
SCREW-THROTTLE STOP
16021-1042
16030
FLOAT VALVE ASSY,2.5
16030-1013
16065
HOLDER,MAIN JET RING
16065-1033
16073
COLLAR
16073-014
92037A
CIRCLIP
16076-003
92055A
RING-O
92055-1076
92059
TUBE,3X5X300
92059-1755
92059A
TUBE,3X5X250,BLACK
92059-1308
92081
SPRING,STARTER PLUG
16013-008
92081B
SPRING,SHAFT STOP
92081-1260
220
SCREW PAN HEAD 4X8
220B0408
223
SCREW-PAN-WS-CROS
223B0416
