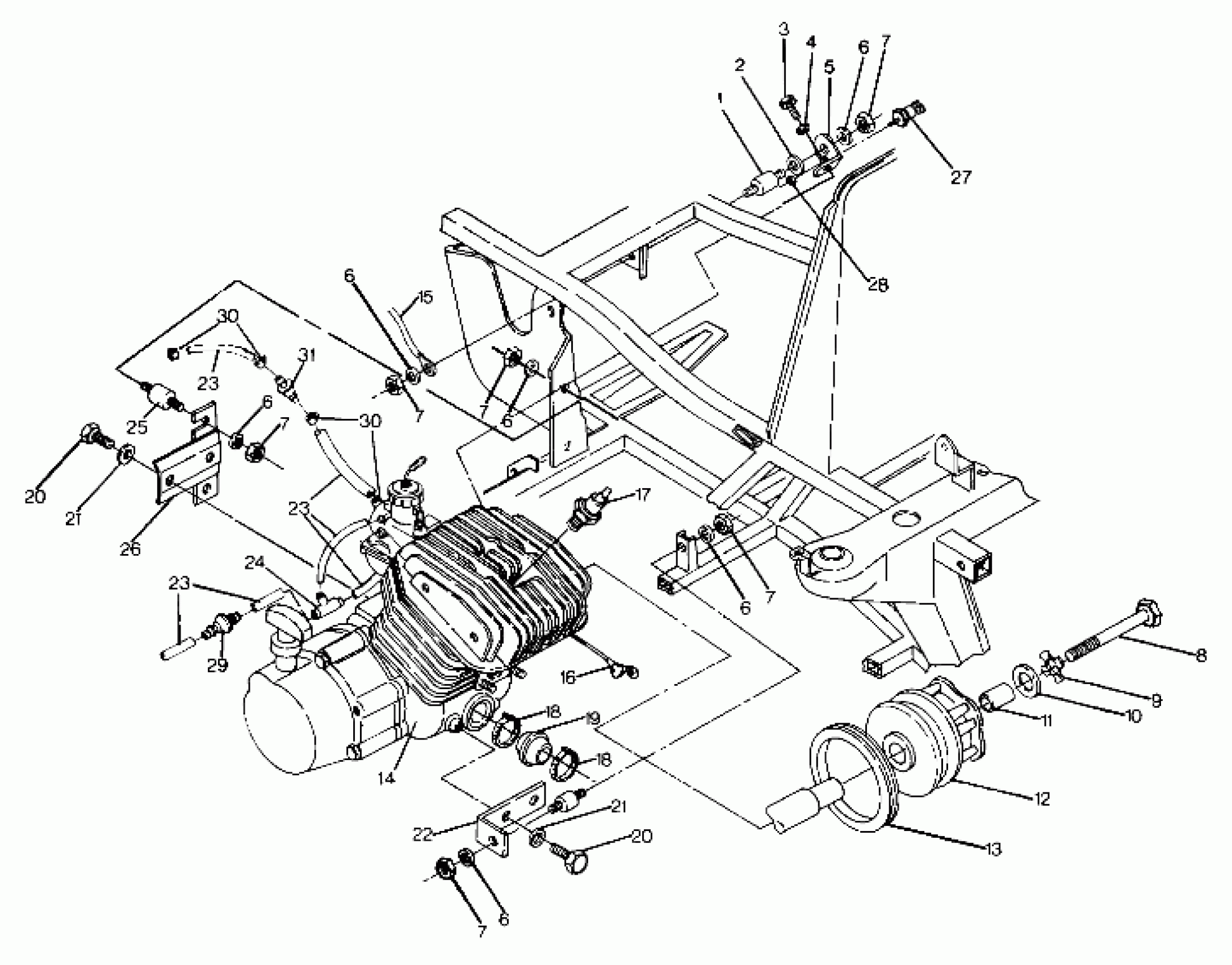

Polaris BIG BOSS - W899627 Engine Mounting (4916361636006A) Diagram

#

Description
Price

1

MOUNT,MOTOR

3110026

$40.46

2

INSULATOR,MOTOR MT.

5430802

$28.32

3

BOLT(10)

7515321

Unavailable

4

LOCK WASHER(10)

7552901

$1.19

5

MOUNT,ENG.,TOP Substituted by 5220471-067

5220471

Unavailable

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

7

NUT LOCK(10)

7542403

Unavailable

7

NUT LOCK(10)

7542403

Unavailable

7

NUT LOCK(10)

7542403

Unavailable

7

NUT LOCK(10)

7542403

Unavailable

7

NUT LOCK(10)

7542403

Unavailable

7

NUT LOCK(10)

7542403

Unavailable

8

BOLT(10)

7512566

$33.24

9

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

10

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

11

BUSHING-.437 X.770 X.50

5430261

$7.14

12

CLUTCH,DRIVE Substituted by 1321605

1321491

$697.13

13

SEAL,ENG./CLUTCH

5410411

Unavailable

14

ENG.EC25PF-05(ATV) [No Longer Available]

1211460

Unavailable

15

CABLE,GROUND/ENG.

4010067

Unavailable

16

INSULATOR-CABLE

5410346

$7.73

17

SPARKPLUG (10)

3070156

$3.97

18

CABLE, TIE

7080346

Unavailable

18

CABLE, TIE

7080346

Unavailable

19

BOOT,CLUTCH INTAKE

5410421

$11.32

20

SCREW(10)

7512490

$3.97

20

SCREW(10)

7512490

$3.97

21

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

$0.79

21

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

$0.79

22

PLATE,FR.MTR.MT. Substituted by 5220881-067

5220881

Unavailable

23

LINE,VENT,(38.0'') Substituted by 8360009-600

5521087

Unavailable

23

LINE,VENT,(38.0'') Substituted by 8360009-600

5521087

Unavailable

23

LINE,VENT,(38.0'') Substituted by 8360009-600

5521087

Unavailable

24

Fitting, Tee

7052005

Unavailable

25

MOUNT, MOTOR

3110028

Unavailable

26

MOUNT,REAR Substituted by 5241056-067

5220757

Unavailable

27

THERMOSTAT Substituted by 4010211

4110092

Unavailable

28

NUT, NYLOCK(10)

7541602

$1.43

29

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

30

CLAMP-HOSE,(10)

7080236

$1.59

30

CLAMP-HOSE,(10)

7080236

$1.59

31

FILTER,SMALL,IN-LINE,(10)

2530009

$6.46
