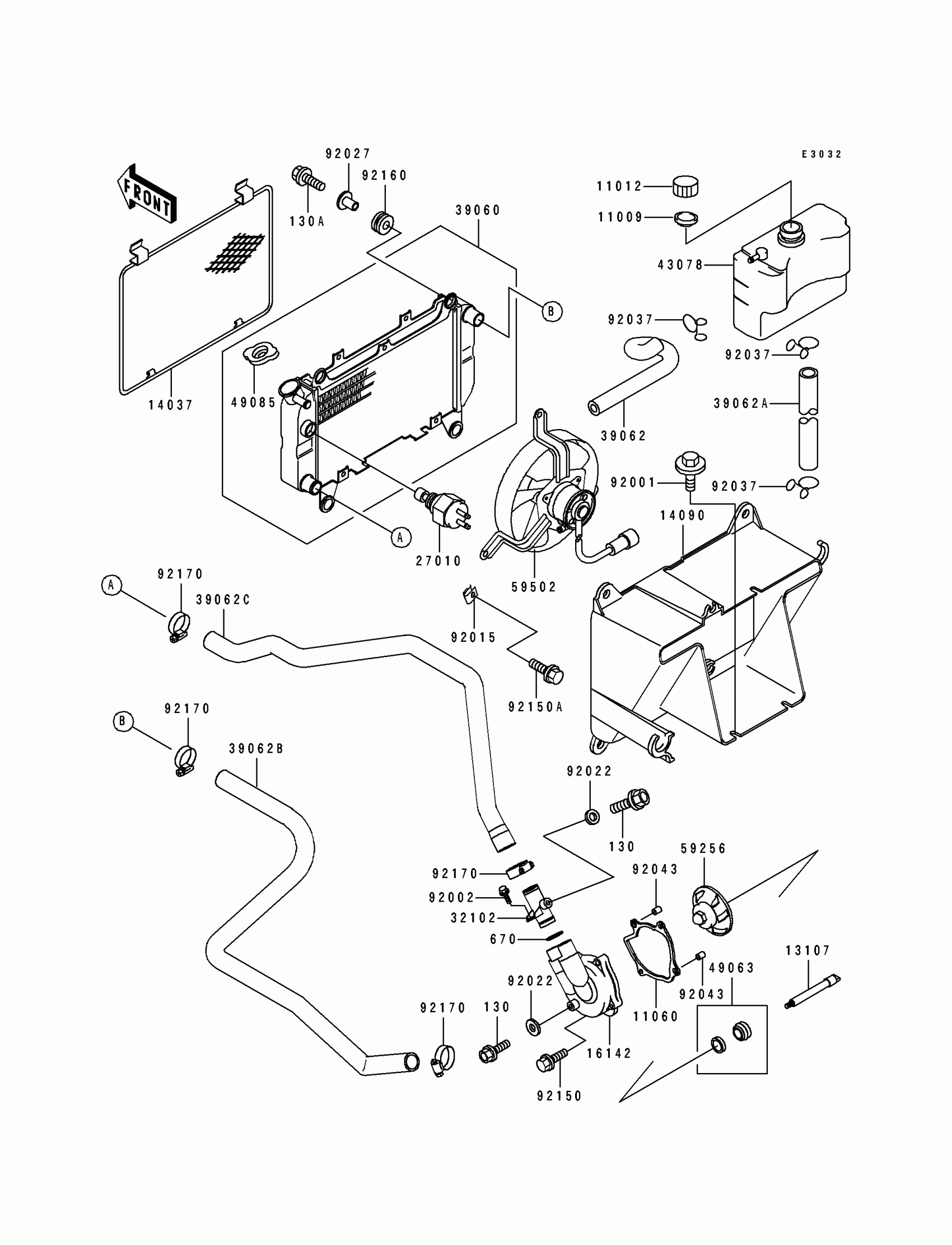

Kawasaki Bayou 400 4X4 Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.25

11012

CAP

11012-1084

$1.31

11060

GASKET,PUMP COVER

11060-1308

$12.08

13107

SHAFT,WATER PUMP

13107-1287

Unavailable

14037

SCREEN

14037-1153

Unavailable

14090

COVER,RADIATOR

14090-1491

Unavailable

16142

COVER-PUMP

16142-1083

Unavailable

27010

SWITCH,FAN

27010-1202

$91.74

32102

PIPE,CYLINDER

32102-1719

Unavailable

39060

RADIATOR

39060-1110

Unavailable

39062

HOSE-COOLING

39062-1257

$36.50

39062A

HOSE-COOLING,5.5X10.5X420

39062-1586

Unavailable

39062B

HOSE-COOLING,HEAD-RADIATOR

39062-1587

$36.60

39062C

HOSE-COOLING,RADIATOR-PUMP

39062-1588

$30.44

43078

RESERVOIR

43078-1146

Unavailable

49063

SEAL-MECHANICAL

49063-1054

$13.09

49085

CAP-ASSY-PRESSURE

49085-1066

$33.98

59256

IMPELLER

59256-1060

$33.53

59502

FAN-ASSY

59502-1102

$680.20

92001

BOLT,6X16

92001-1950

$3.43

92002

BOLT,6X12

92002-1569

Unavailable

92015

NUT

92015-1487

$3.80

92022

WASHER,6.2X11X1

92022-304

$2.92

92027

COLLAR

92027-1956

$8.88

92037

CLAMP,TUBE

92037-147

$5.84

92043

PIN,DOWEL,8X10

92043-1302

$0.97

92150

BOLT,6X30

92150-1021

Unavailable

92150A

BOLT,6X12

92150-1186

$2.92

92160

DAMPER

92160-1007

$4.37

92170

CLAMP

92170-1497

$13.29

130

BOLT-FLANGED

130J0610

Unavailable

130A

BOLT-FLANGED,8X30

130J0830

Unavailable

670

O RING,18MM

670B2018

$1.25
