1995 Kawasaki Bayou 400 4X4 Guard Diagram

← All diagrams

Find the part on the Guard diagram for your 1995 Kawasaki Bayou 400 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

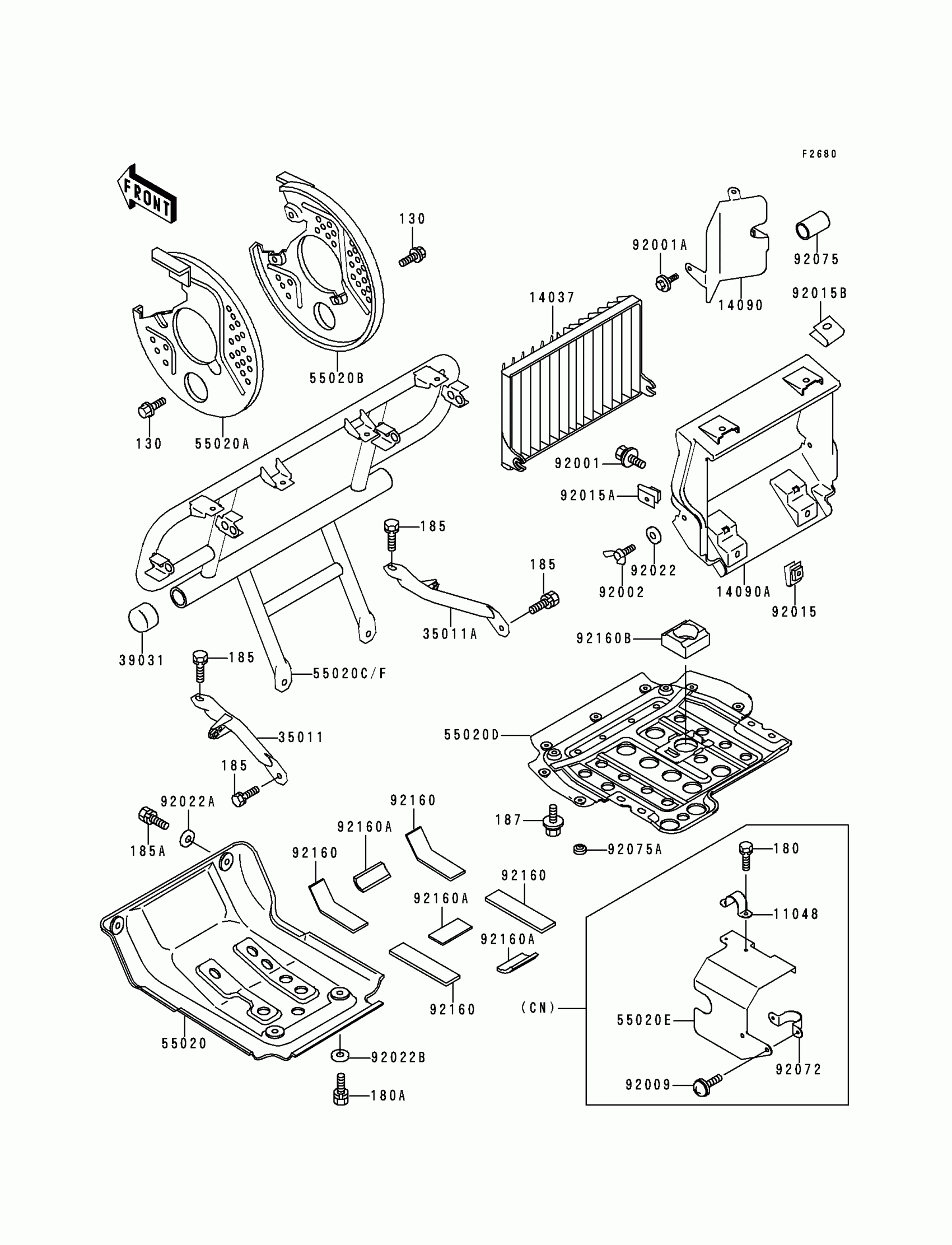

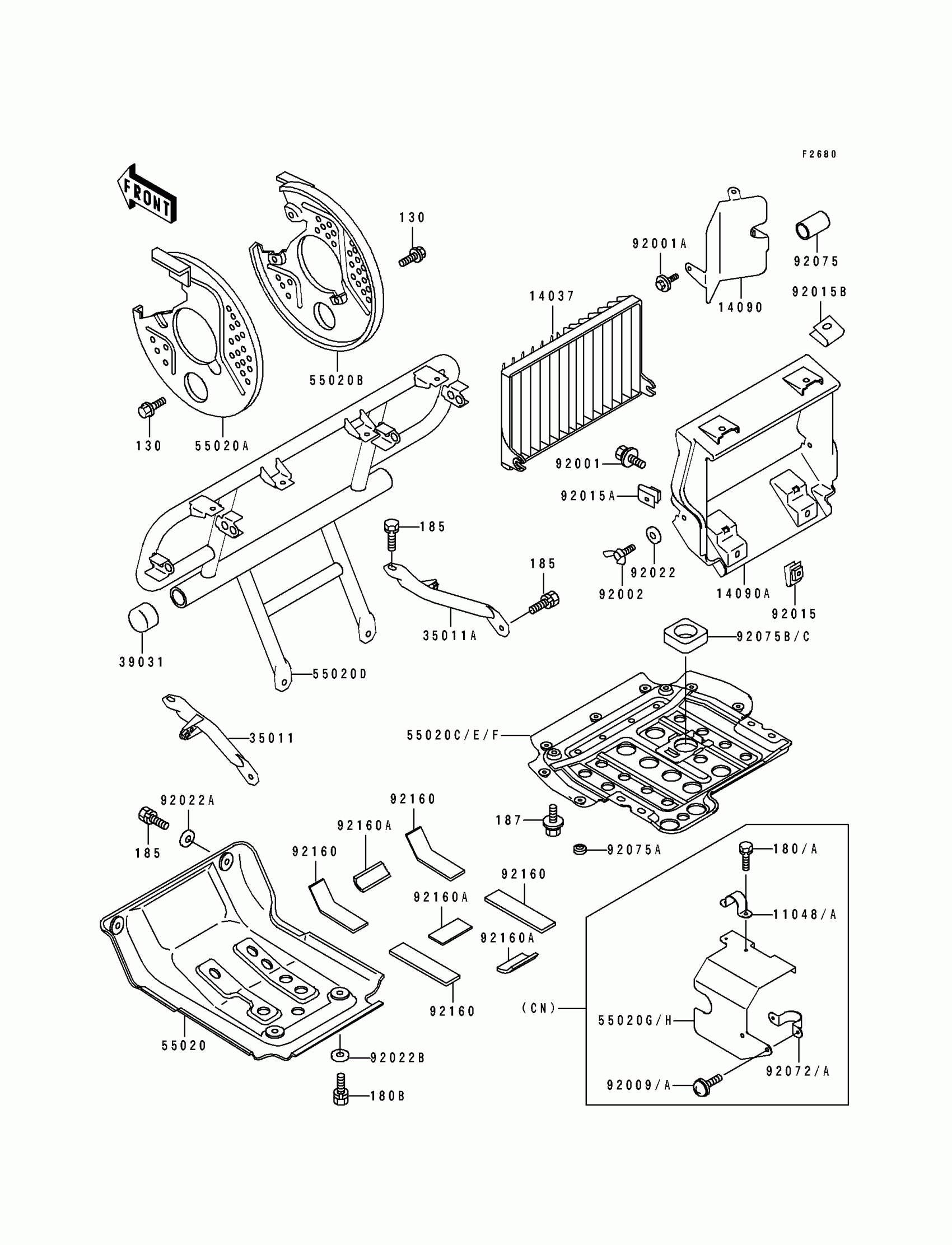

1995 Kawasaki Bayou 400 4X4 Guard Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11048

BRACKET,SNOW GUARD

11048-1228

1
Out of stock

14037

SCREEN

14037-1154

1

$44.57

In stock

14090

COVER,RADIATOR

14090-1225

1
Out of stock

14090A

COVER,RADIATOR

14090-1490

1
Out of stock

35011

STAY,FRONT GUARD,LH

35011-1595

1
Out of stock

35011A

STAY,FRONT GUARD,RH

35011-1596

1
Out of stock

39031

CAP-END,BUMPER PIPE

39031-1059

1

$7.58

In stock

55020

GUARD,FRONT DIFF

55020-1303

1
Out of stock

55020A

GUARD,FRONT DISC,LH

55020-1304

1
Out of stock

55020B

GUARD,FRONT DISC,RH

55020-1305

1
Out of stock

55020D

GUARD,FR

55020-1417

1
Out of stock

55020E

GUARD,ENGINE

55020-1468

1
Out of stock

55020G

GUARD,SNOW

55020-1486

1
Out of stock

92001

BOLT,6X16

92001-1851

1
Out of stock

92001A

BOLT,6X18

92001-1944

1
Out of stock

92002

BOLT,WING

92002-1599

1
Out of stock

92009

SCREW,6X12

92009-1480

1
Out of stock

92015

NUT

92015-1487

1
Out of stock

92015A

NUT,6MM

92015-1602

1
Out of stock

92015B

NUT,CLIP,8MM

92015-1691

1
Out of stock

92022

WASHER,7.2X21

92022-1258

1
Out of stock

92022A

WASHER,8.5X20X1.6,BLACK

92022-1317

1
Out of stock

92022B

WASHER,6.5X20X1.6,BLACK

92022-1346

1
Out of stock

92072

BAND

92072-1252

1
Out of stock

92075

DAMPER,FUEL TANK,FR,UNDER

92075-1369

1
Out of stock

92075A

DAMPER,INTAKE COVER

92075-1573

1
Out of stock

92075B

DAMPER

92075-1872

1
Out of stock

92160

DAMPER

92160-1101

1
Out of stock

92160A

DAMPER

92160-1102

1
Out of stock

130

BOLT-FLANGED,6X10

130B0610

1
Out of stock

180

BOLT-UPSET-WS,5X10,BLACK

180C0510

1
Out of stock

180B

BOLT-UPSET-WS,6X16

180J0616

1
Out of stock

185

BOLT-UPSET-WSP-SMALL,8X20

185J0820

1
Out of stock

187

BOLT-UPSET-WSP

187J0616

1
Out of stock
