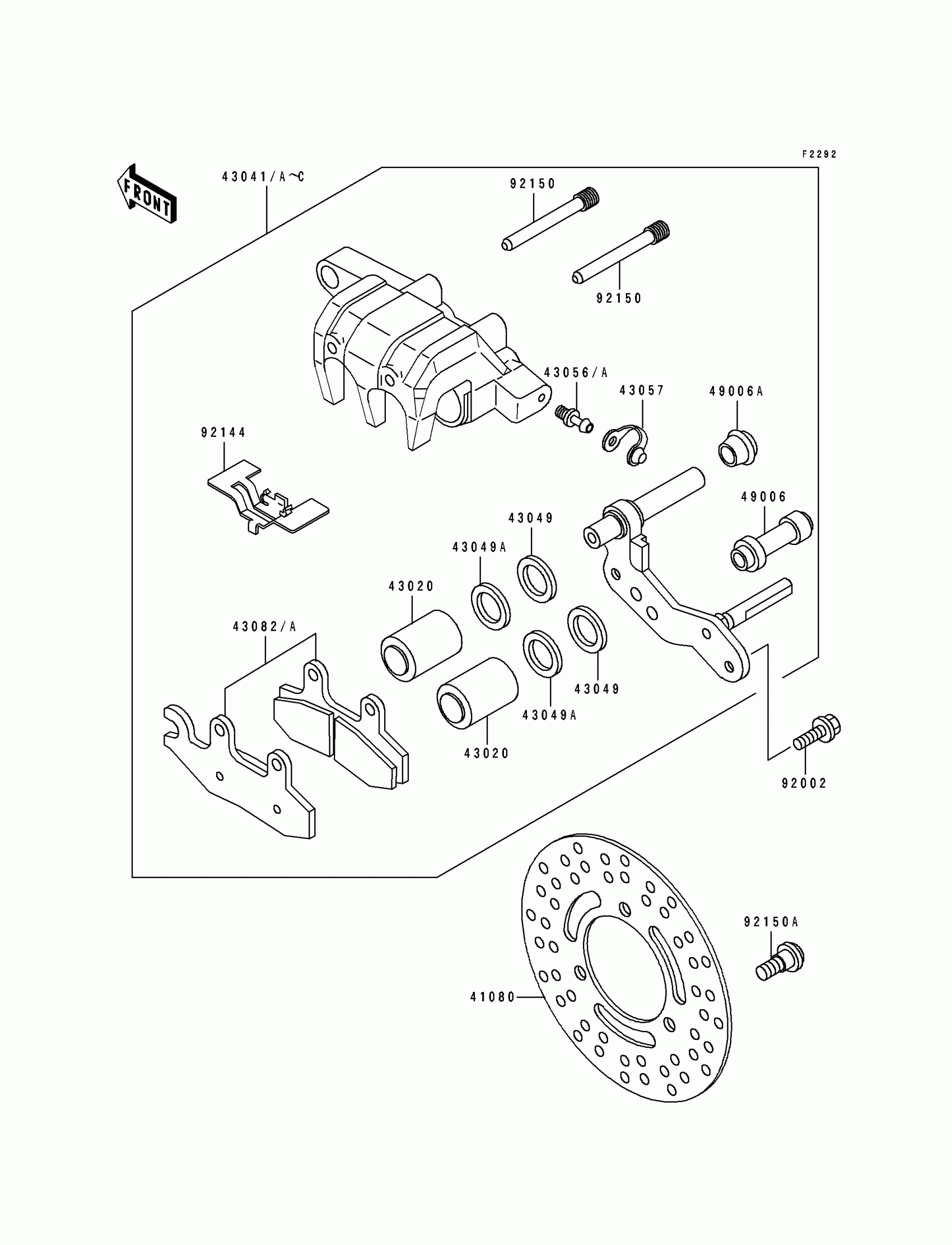

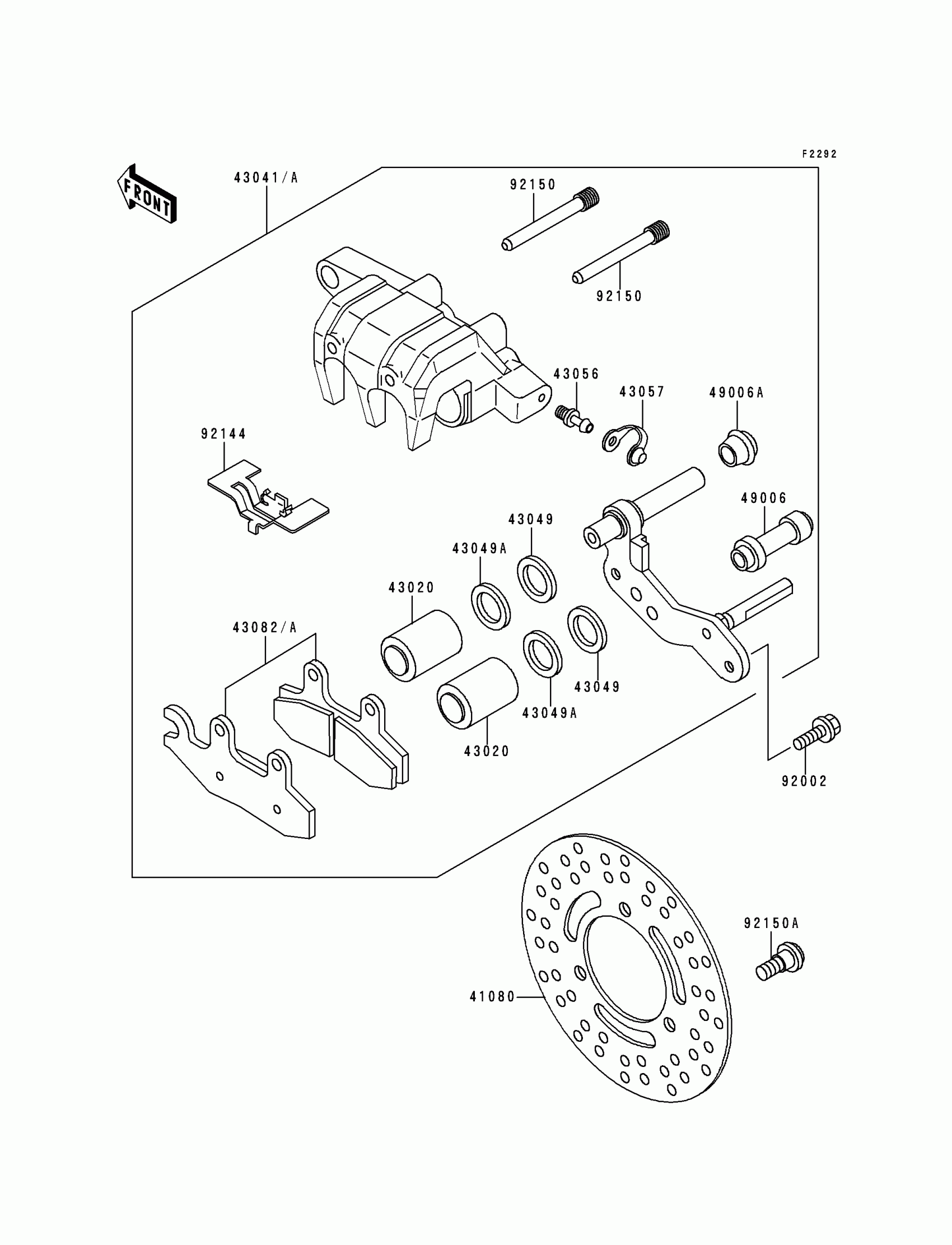

Kawasaki Bayou 400 4X4 Front Brake Diagram

Description

Price

41080

DISC,FR

41080-1216

$309.65

43020

PISTON-COMP-BRAKE

43020-1101

$54.04

43041B

CALIPER-ASSY,FR,LH

43041-1518

$509.44

43041C

CALIPER-ASSY,FR,RH

43041-1519

$509.44

43049

PACKING

43049-1063

$6.13

43049A

PACKING

43049-1064

$4.64

43056A

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.73

43082

PAD-ASSY-BRAKE,FR,LH

43082-1093

$42.80

43082A

PAD-ASSY-BRAKE,FR,RH

43082-1094

$42.80

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1242

$4.14

92002

BOLT,FLANGED,8X13

92002-1737

$4.92

92144

SPRING,PAD

92144-1319

$7.63

92150

BOLT

92150-1144

$7.54

92150A

BOLT,SOCKET,8X20

92150-1760

$4.93
