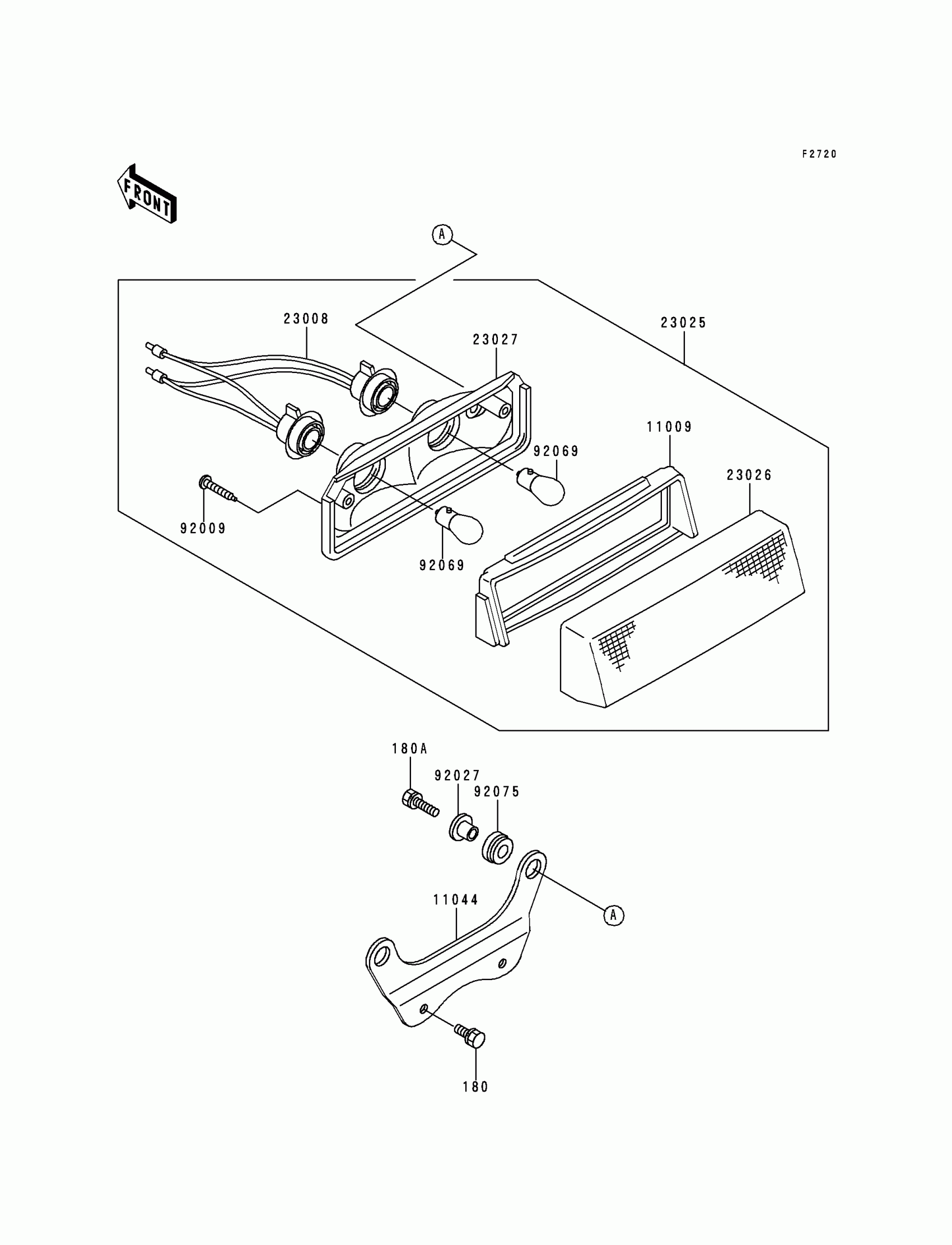

Kawasaki Bayou 300 Taillight(s) Diagram

Description

Price

180

BOLT-UPSET-WS

180D0612

Unavailable

180A

BOLT-UPSET-WS

180D0620

Unavailable

11009

GASKET,TAIL LAMP

11009-1404

$20.20

11044

BRACKET,TAIL LAMP

11044-1367

$16.02

23008

SOCKET-ASSY,TAIL LAMP

23008-1243

Unavailable

23025

LAMP-TAIL

23025-1113

$121.06

23026

LENS,TAIL LAMP

23026-1056

$30.16

23027

BODY-COMP-TAIL LAMP

23027-1064

Unavailable

92009

SCREW,TAPPING,4X30

92009-1056

$3.92

92027

COLLAR

92027-194

$4.18

92069

BULB,12V 8W

92069-1012

Unavailable

92075

DAMPER

92075-277

$1.90
