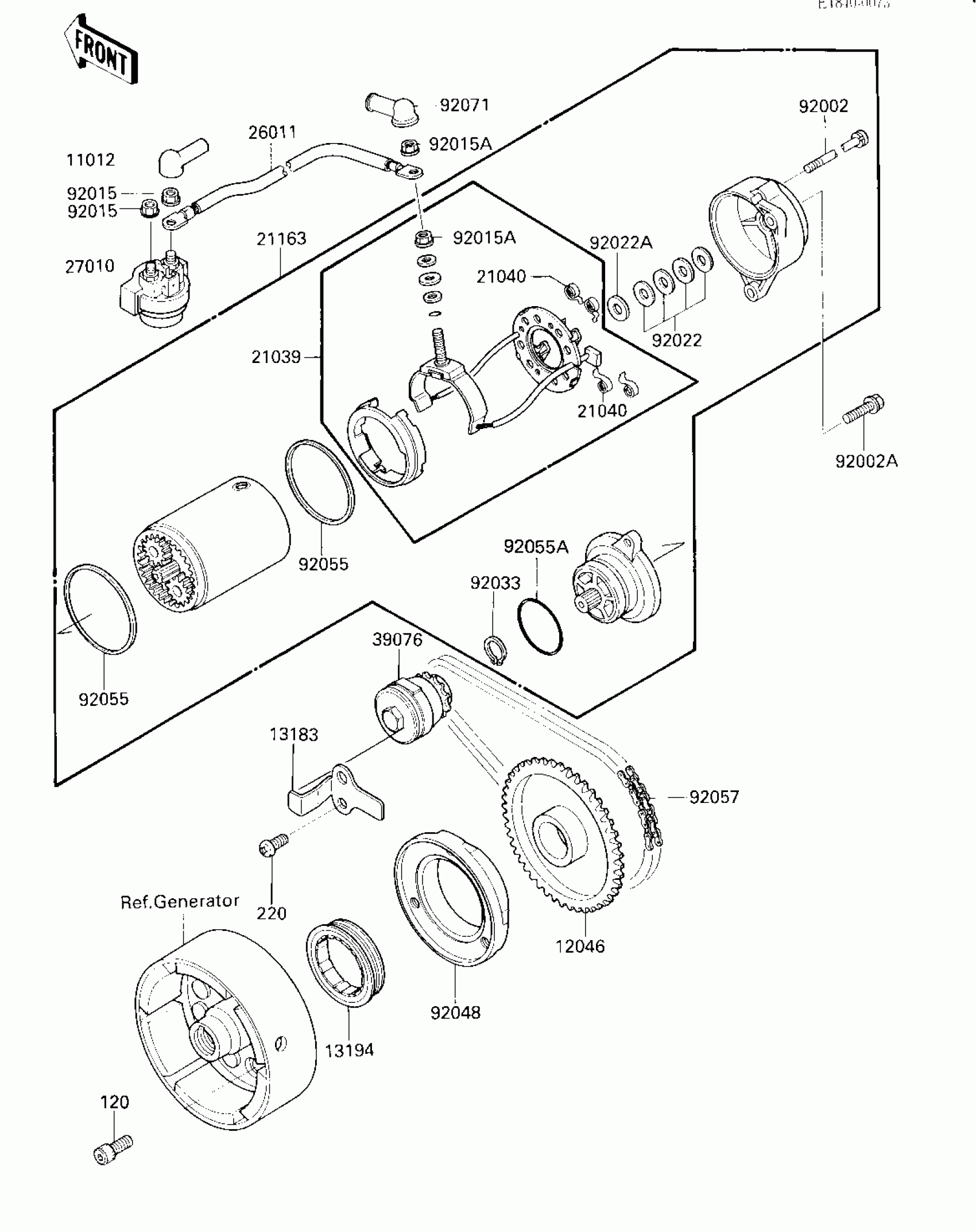

Kawasaki Bayou 300 STARTER MOTOR/STARTER CLUTCH Diagram

Description

Price

11012

CAP,TERMINAL

11012-1354

$9.85

12046

SPROCKET,STARTER

12046-1077

$77.87

13183

PLATE,STARTER CHAIN

13183-1002

Unavailable

13194

CLUTCH-ONEWAY

13194-1061

Unavailable

21039

BRUSH,CARBON

21039-1053

$96.05

21040

SPRING-BRUSH

21040-1003

$9.12

21163

STARTER-ELECTRIC

21163-1115

$530.30

26011

WIRE-LEAD,STATER MOTOR

26011-1327

$69.31

27010

SWITCH,STARTER

27010-1314

$41.37

39076

LIMITER,STARTER IDLE GEAR

39076-1054

$195.29

92002

BOLT

92002-1474

$14.53

92002A

BOLT

92002-1664

$4.61

92015

NUT,FLANGED,6MM

92015-1367

$2.93

92015A

NUT,STARTER MOTOR

92015-1476

$3.85

92022

WASHER,9.1X18X0.2

21025-011

$5.42

92022A

WASHER,9.1X18X0.8

92022-1132

$5.42

92033

RING-SNAP,13MM

92033-037

$9.71

92048

RACE

92048-1061

Unavailable

92055

RING-O,64MM

92055-1086

$9.68

92055A

UNAVAILABLE IN PRICE BOOK

92055-131

Unavailable

92057

CHAIN,STARTER,KEC29H,64L

92057-1196

$46.39

92071

GROMMET,STARTER TERMINAL

21017-017

$7.48

120

BOLT-SOCKET,8X16

120P0816

Unavailable

220

SCREW-PAN-CROS,6X14

220B0614

$1.32
