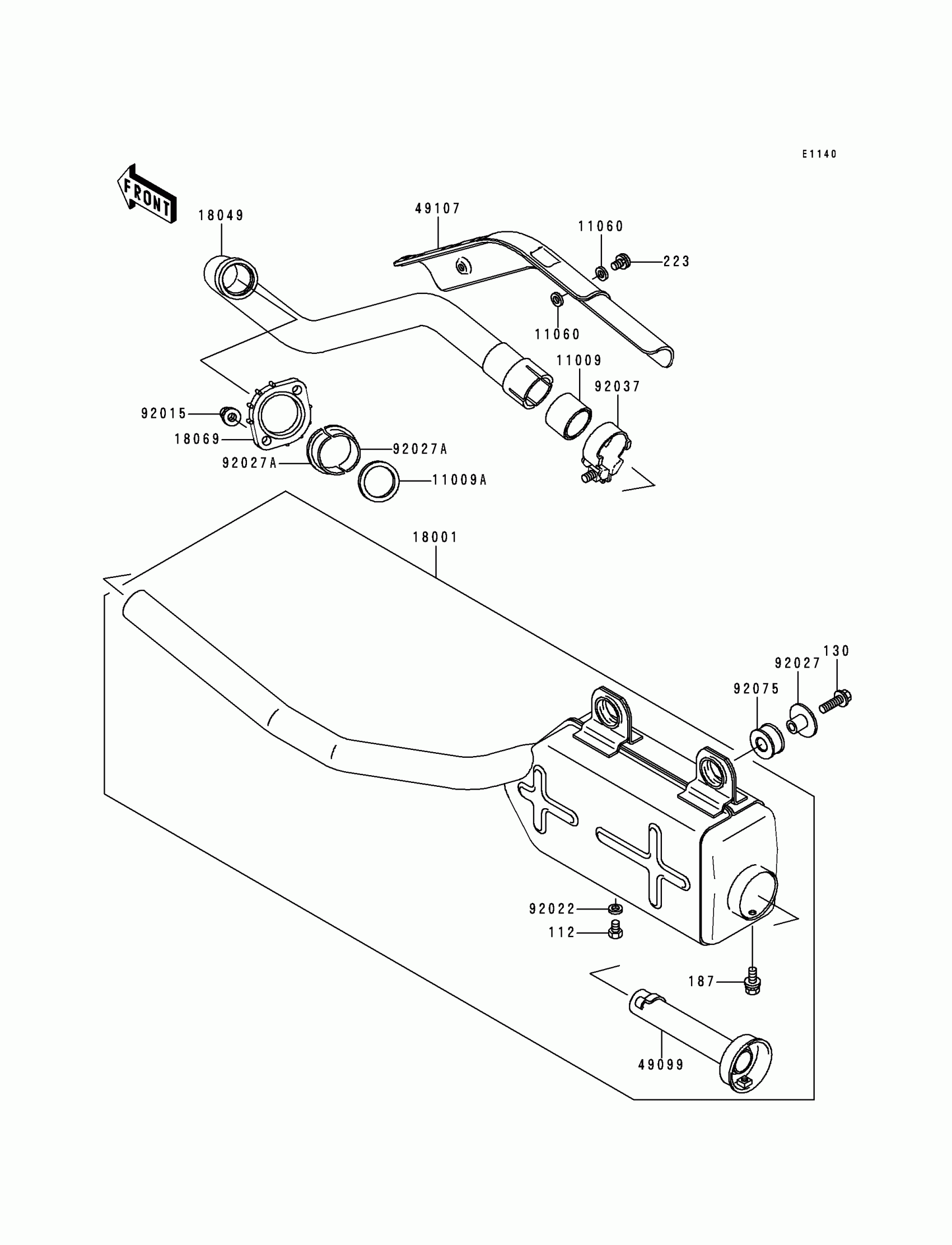

Kawasaki Bayou 300 Muffler(s) Diagram

Description

Price

112

BOLT-UPSET,6X8

112B0608

Unavailable

130

BOLT-FLANGED,8X25,BLACK

130J0825

Unavailable

187

BOLT 6X12

187B0612

Unavailable

223

SCREW-PAN-WS-CROS

223C0610

$3.14

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1718

$22.08

11009A

GASKET,EXHAUST PIPE H

11009-1866

$6.29

11060

GASKET,6.2X11.5X1.5

11060-1109

$3.49

18001

MUFFLER

18001-1726

$446.57

18049

PIPE-EXHAUST

18049-1417

$102.73

18069

HOLDER-EXHAUST PIPE

18069-1014

$14.19

49099

BAFFLE-PIPE MUFFLER

49099-1268

$113.20

49107

COVER-EXHAUST PIPE

49107-1081

$76.01

92015

NUT,8MM

92015-1402

$3.57

92022

WASHER,6.2X11X1

92022-304

$2.76

92027

COLLAR,MUFFLER

92027-1981

$8.19

92027A

COLLAR,EXHAUST PIPE

92027-264

$3.60

92037

CLAMP

92037-1956

$16.80

92075

DAMPER,MUFFLER

92075-1809

$6.39
