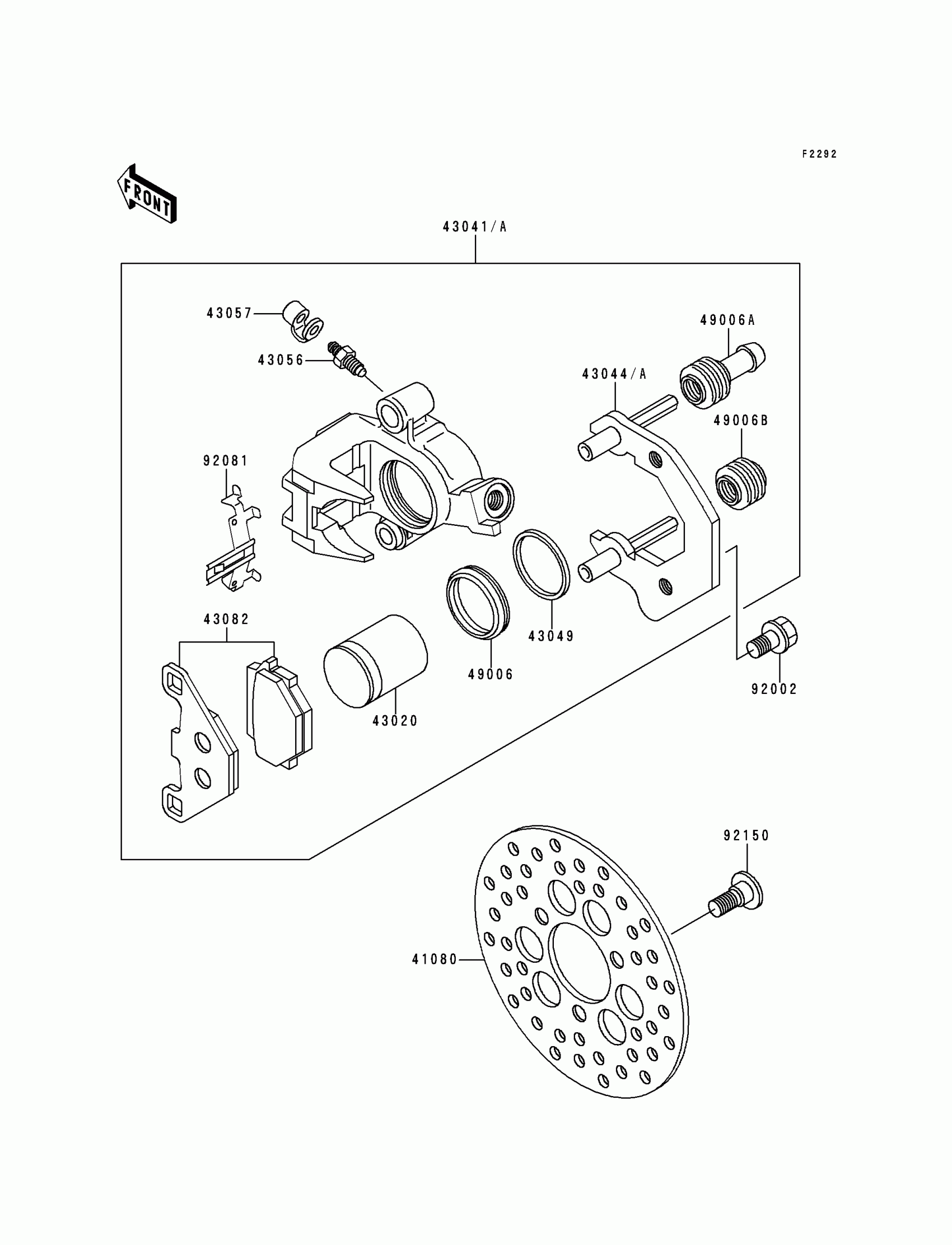

Kawasaki Bayou 300 Front Brake Diagram

Description

Price

41080

DISC,FR

41080-1171

$180.21

43020

PISTON-COMP-BRAKE

43020-1093

$74.19

43041

CALIPER-ASSY,FR,LH

43041-1520

$507.70

43041A

CALIPER-ASSY,FR,RH

43041-1521

$507.70

43044

HOLDER-COMP-CALIPER,FR,LH

43044-1064

$165.82

43044A

HOLDER-COMP-CALIPER,FR,RH

43044-1065

$165.82

43049

PACKING

43049-1016

$8.25

43056

BREATHER-BRAKE

43056-1054

$22.74

43057

CAP-BREATHER

43057-003

$2.02

43082

PAD-ASSY-BRAKE,FR

43082-1027

$62.66

49006

BOOT,PISTON SEAL

49006-1053

$20.54

49006A

BOOT,CALIPER

49006-1054

$9.20

49006B

BOOT,CALIPER

49006-1055

$5.78

92002

BOLT,FLANGED,8X13

92002-1737

$4.92

92081

SPRING,PAD

92081-1341

$12.00

92150

BOLT,SOCKET,8X20

92150-1760

$5.21
