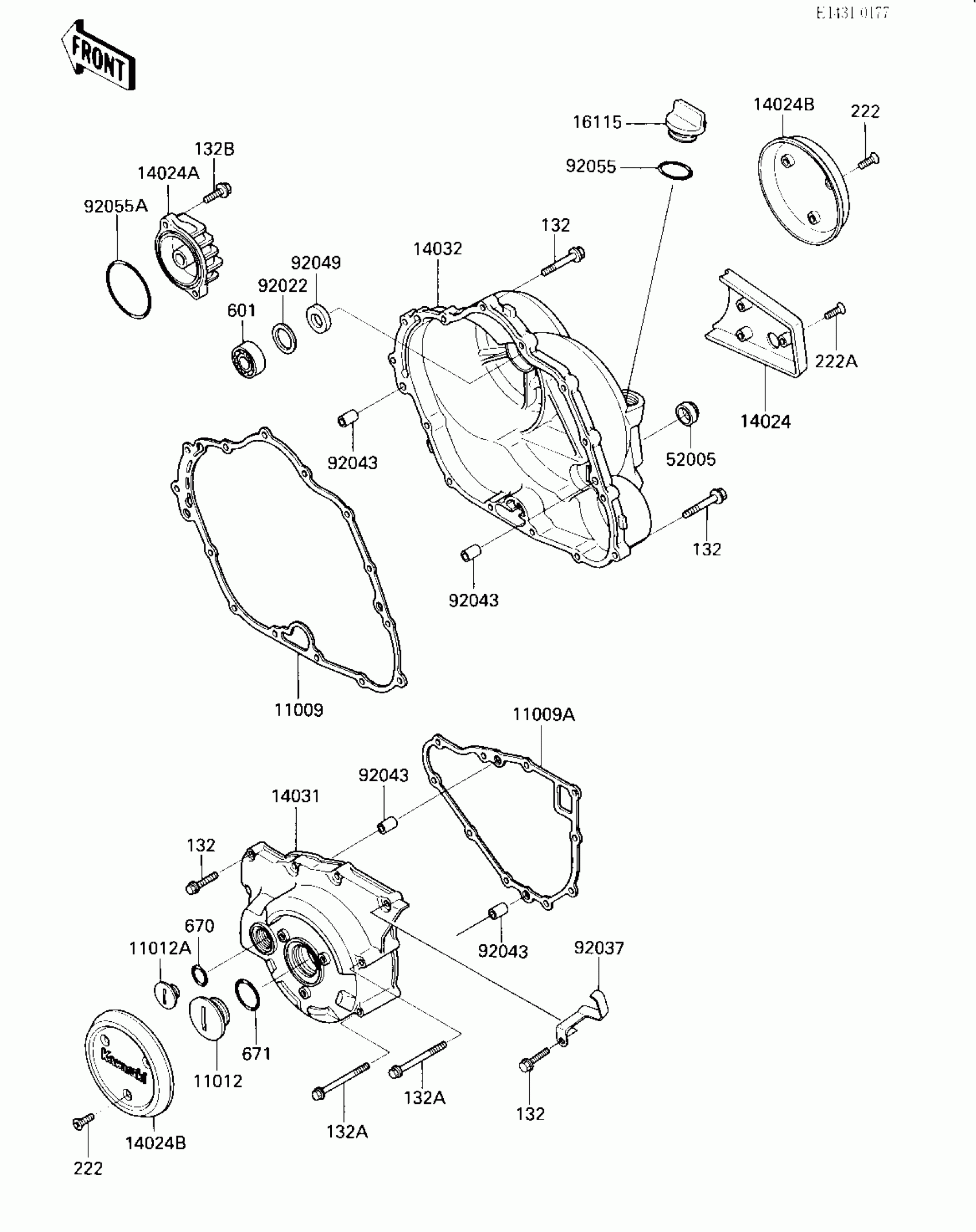

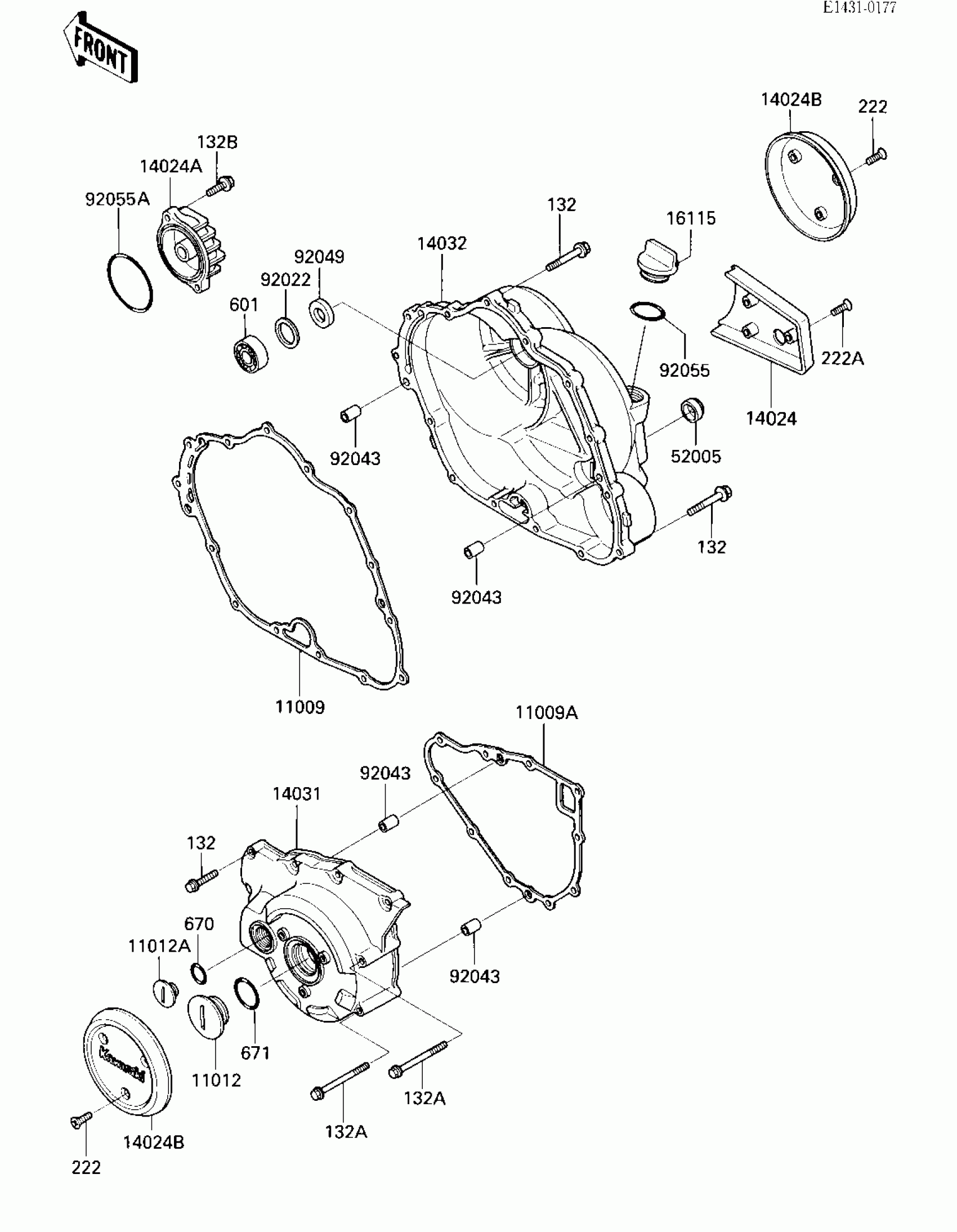

Kawasaki Bayou 300 ENGINE COVERS Diagram

#

Description
Price

11009

GASKET,CLUTCH COVER

11060-1225

Unavailable

11009A

GASKET,GENERATOR COVE

11060-1226

Unavailable

11012

CAP

11012-1362

$6.98

11012A

CAP,TOP MARK

11012-1363

$5.15

14024

COVER,RELEASE ADJUSTER

14024-1061

Unavailable

14024A

COVER,OIL FILTER

14024-1062

$57.24

14024B

COVER

14025-1807

$39.62

14031

COVER-GENERATOR

14031-1181

Unavailable

14032

COVER-CLUTCH

14032-1197

Unavailable

16115

CAP-OIL FILLER

16115-1009

$11.32

52005

GAUGE,OIL LEVEL

52005-1009

$14.45

92022

WASHER,25.3X33X1

92022-1109

$4.72

92043

PIN,6.2X8X14

92043-1263

$0.49

92049

SEAL-OIL,SCY 15X30X7

92049-1158

$23.14

92055

RING-O,31.5X2.6

92055-049

$3.43

92055A

RING-O,63.6X2.4

92055-1294

$7.55

132

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

132A

BOLT-FLANGED-SMALL,6X70

132J0670

Unavailable

132B

BOLT-FLANGED-SMALL,6X25

132Y0625

Unavailable

222

SCREW-CSK-RD-CROS

222C0510

Unavailable

222A

SCREW-CSK-RD-CROS

222C0518

$4.15

601

BEARING-BALL,#6202C3

601B6202

$6.86

670

O RING,18MM

670B2018

$1.25

671

O RING,40MM

671B2540

$4.93
