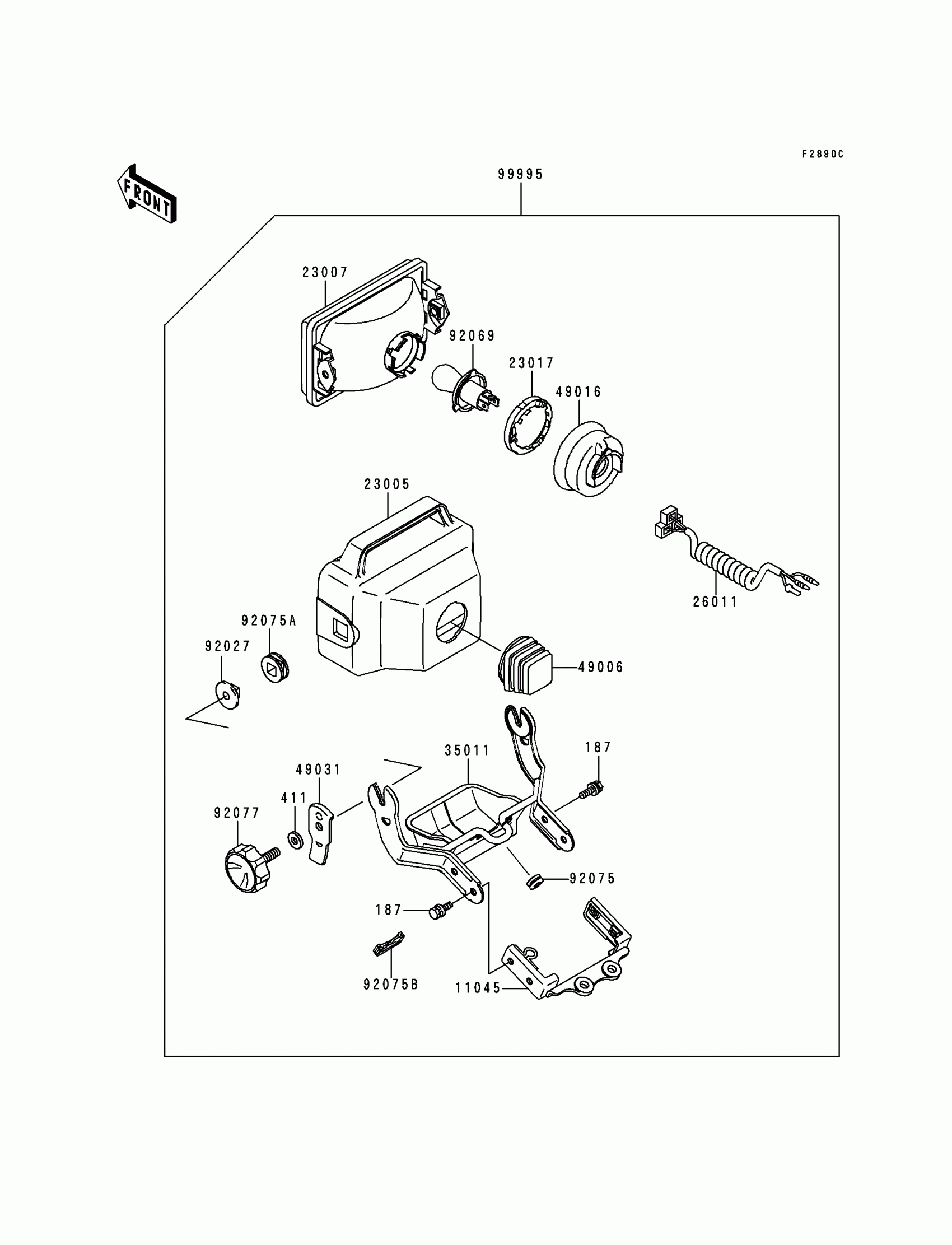

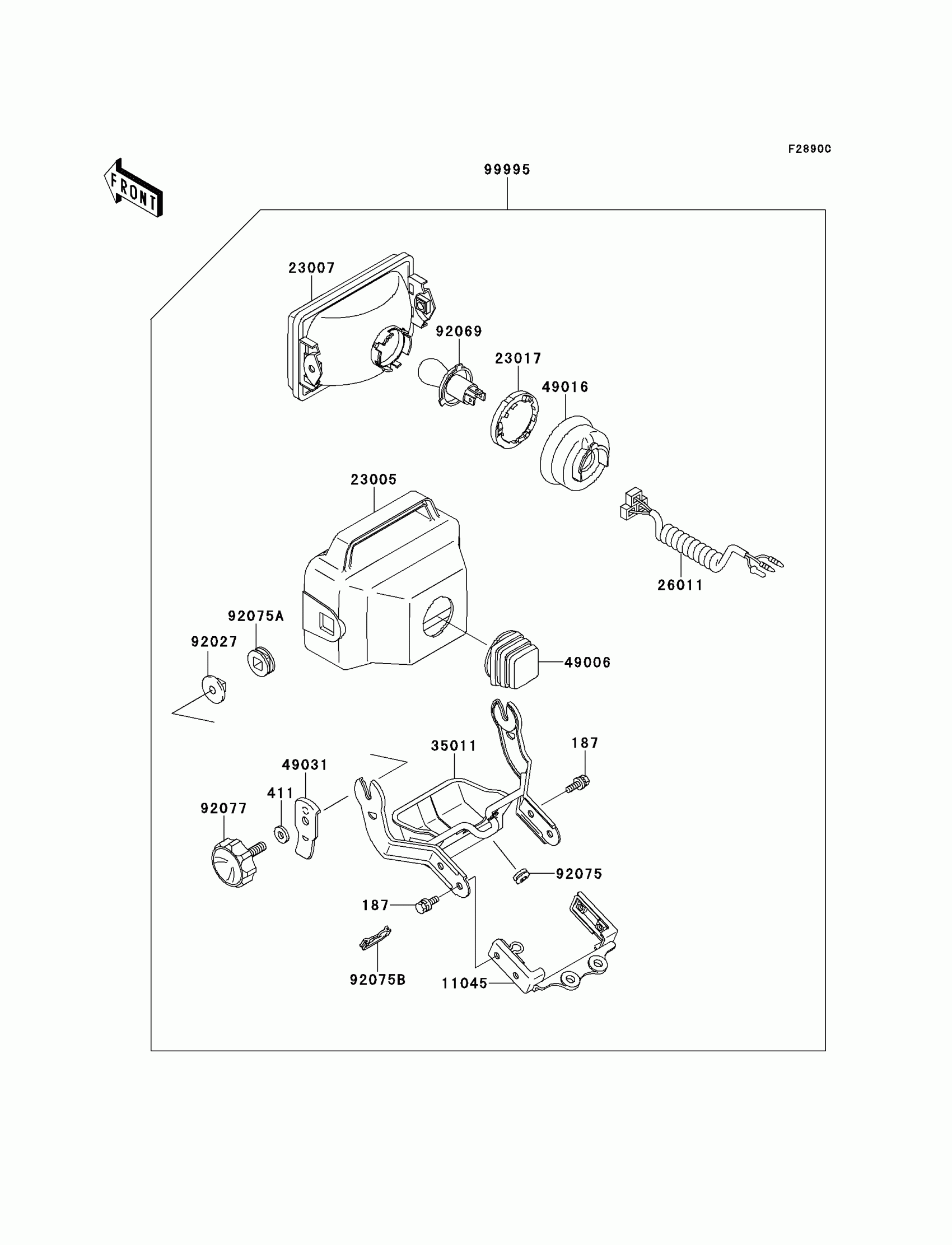

Kawasaki Bayou 300 4X4 Optional Parts(Headlight) Diagram

Description

Price

187

BOLT-UPSET-WSP

187C0614

Unavailable

411

WASHER PLAIN

411F0800

Unavailable

11045

BRACKET,HEAD LAMP

11045-1924

$54.58

23005

BODY-COMP-HEAD LAMP,BLACK

23005-1064-6Z

$171.59

23007

LENS-COMP,HEAD LAMP

23007-1138

$134.34

23017

SOCKET,BULB

23017-1051

Unavailable

26011

WIRE-LEAD,HEAD LAMP

26011-1405

$89.47

35011

STAY,HEAD LAMP

35011-1413

$72.17

49006

BOOT,HEAD LAMP BODY

49006-1172

$22.41

49016

COVER-SEAL,BULB SOCKET

49016-1111

Unavailable

49031

LATCH,HEAD LAMP

49031-1052

$10.63

92027

COLLAR,L=11.9

92027-1938

$10.63

92069

BULB,12V 65/60W

92069-1069

Unavailable

92075

DAMPER,HEAD LAMP HOLDER

92075-1482

$5.29

92075A

DAMPER,HEAD LAMP FITTING

92075-1768

$8.54

92075B

DAMPER

92075-1881

$7.49

92077

KNOB,HEAD LAMP

92077-1060

$17.44

99995

KIT.,HEAD LAMP

99995-1018

Unavailable
