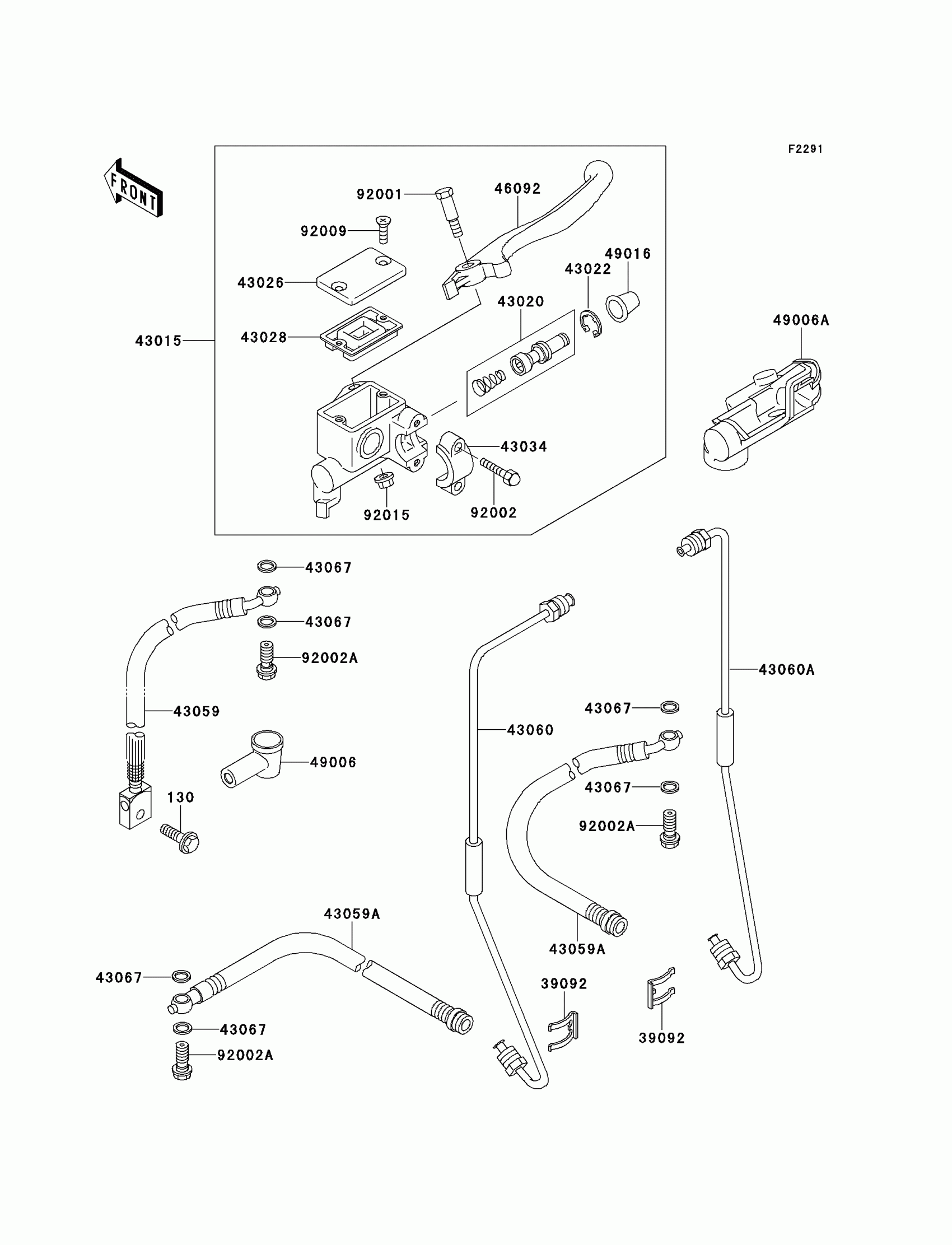

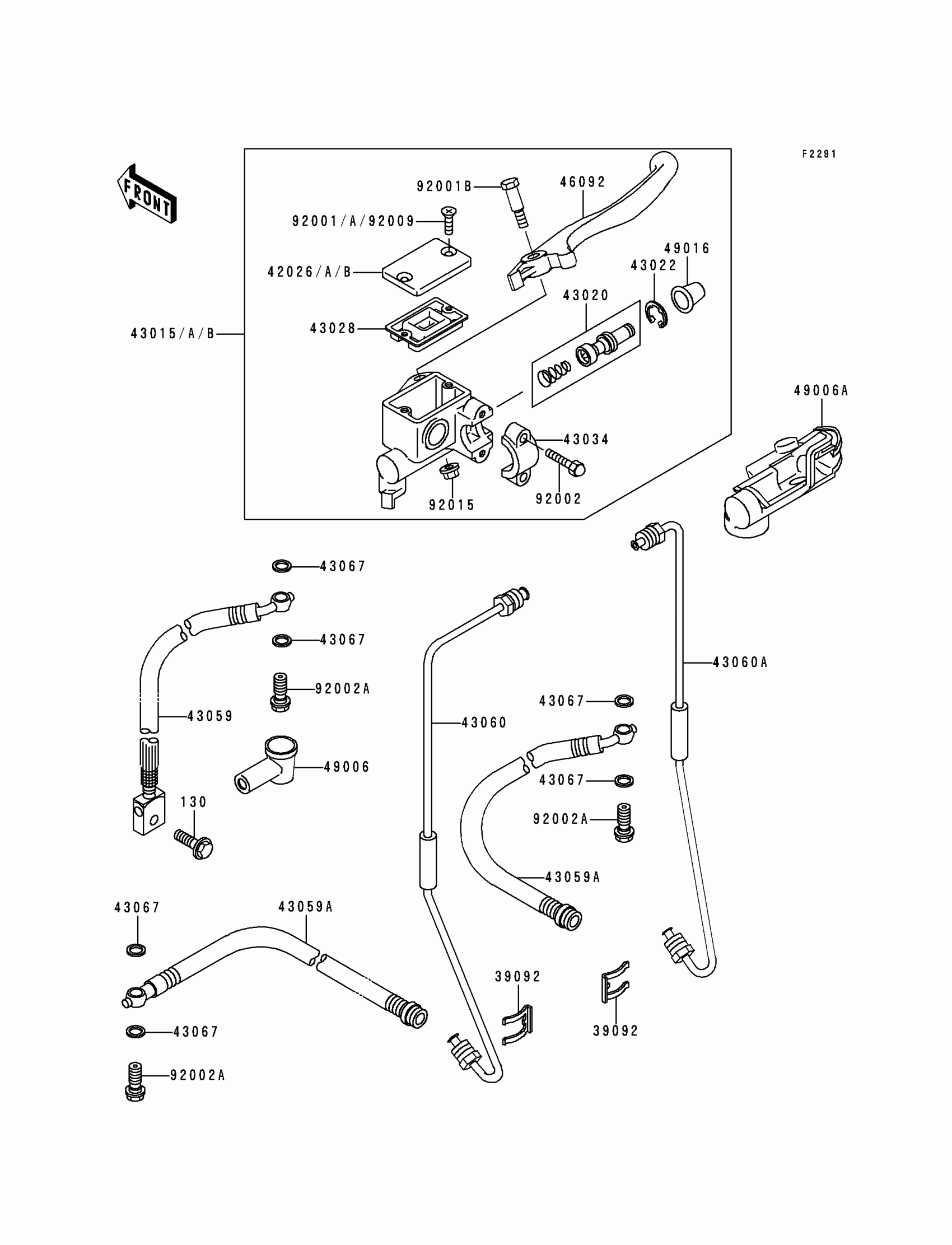

Kawasaki Bayou 300 4X4 Front Master Cylinder Diagram

Description

Price

130

BOLT-FLANGED,8X25

130B0825

Unavailable

39092

PIN-HAIR

39092-1052

$6.07

43015A

CYLINDER-ASSY-MASTER,FR

43015-1369

$494.11

43015B

CYLINDER-ASSY-MASTER,FR

43015-1489

$494.11

43020

PISTON-COMP-BRAKE,FR

43020-1056

$58.51

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43028

DIAPHRAGM

43028-1061

$12.27

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$14.67

43059

HOSE-BRAKE,FR

43059-1443

$37.32

43059A

HOSE-BRAKE,FR

43059-1444

$30.09

43060

PIPE-BRAKE,LH

43060-1080

Unavailable

43060A

PIPE-BRAKE,RH

43060-1081

$34.82

43067

WASHER,10.5X15X1.5

43067-001

$1.57

46092

LEVER-GRIP,FRONT BRAKE

46092-1136

$25.58

49006

BOOT,DUST

49006-1040

$8.74

49006A

BOOT,RH

49006-1198

Unavailable

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

92001A

SCREW,5MM,BLACK

92001-1727

$3.14

92001B

BOLT,FRONT BRAKE LEVER

92001-1728

$10.80

92002

BOLT

92002-1860

$4.18

92002A

BOLT,OIL,L=23

92002-1888

$4.15

92009

SCREW,4MM

92009-1458

$2.23

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

43026A

CAP-BRAKE

43026-1022

$52.90

43026B

CAP-BRAKE

43026-1074

$20.73
