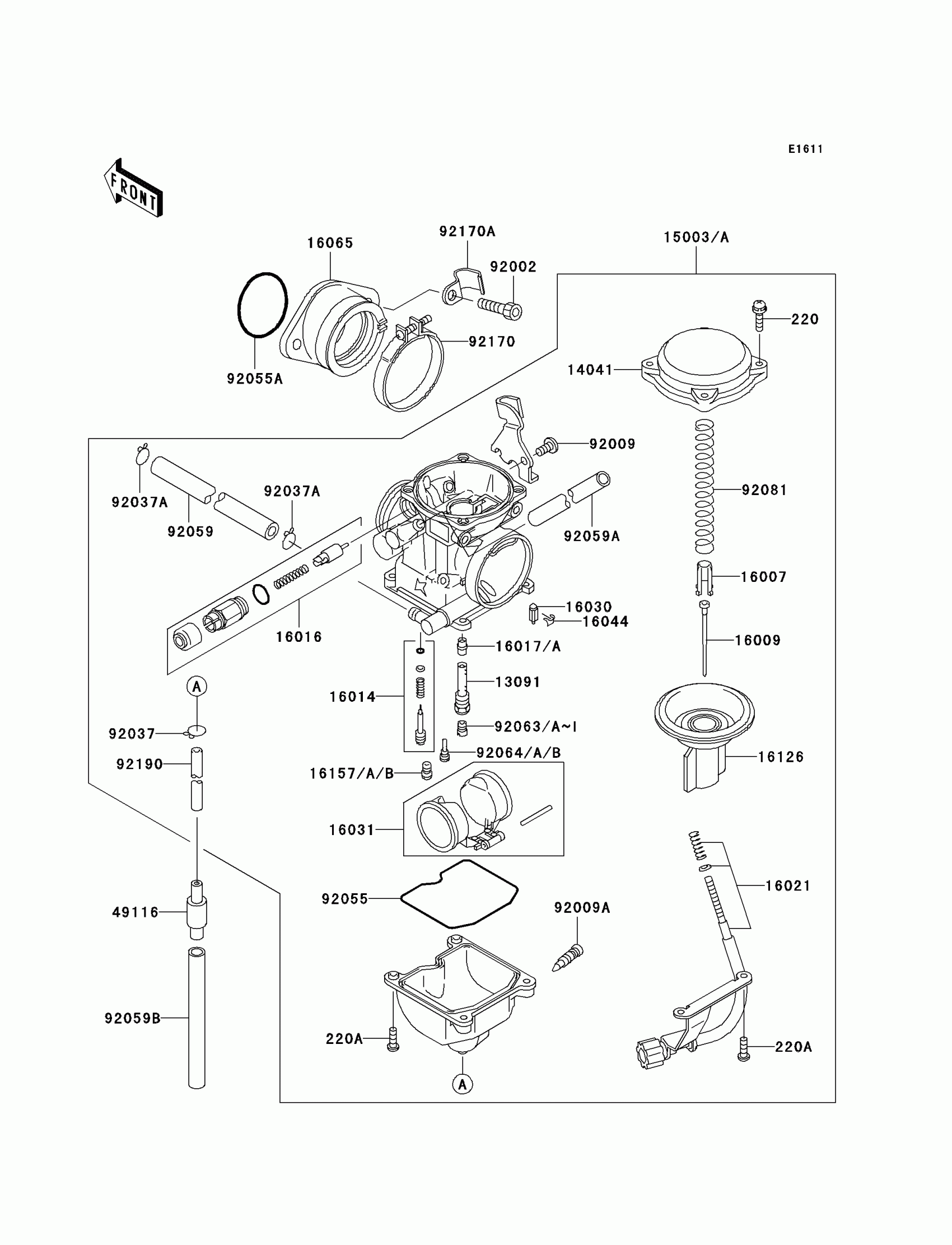

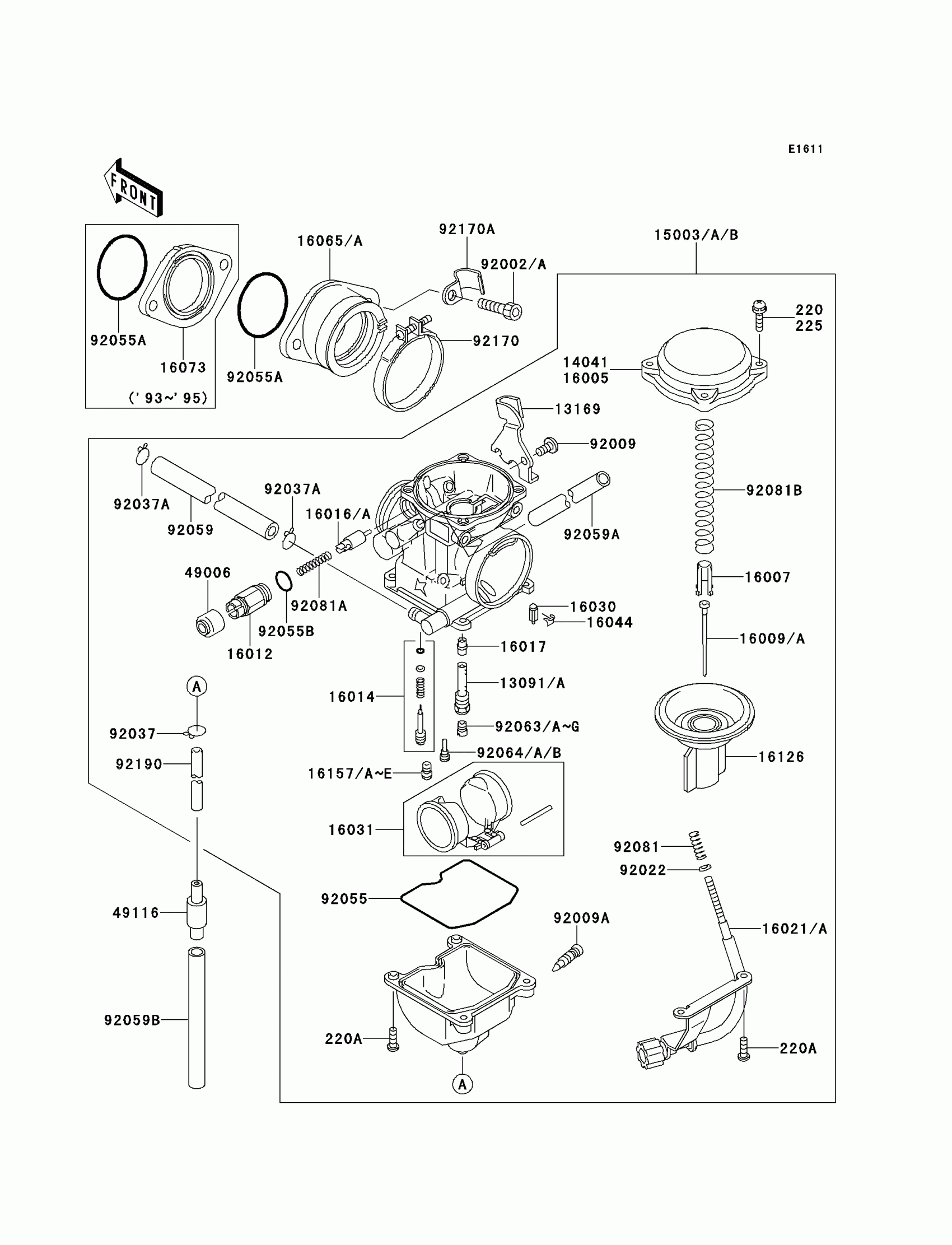

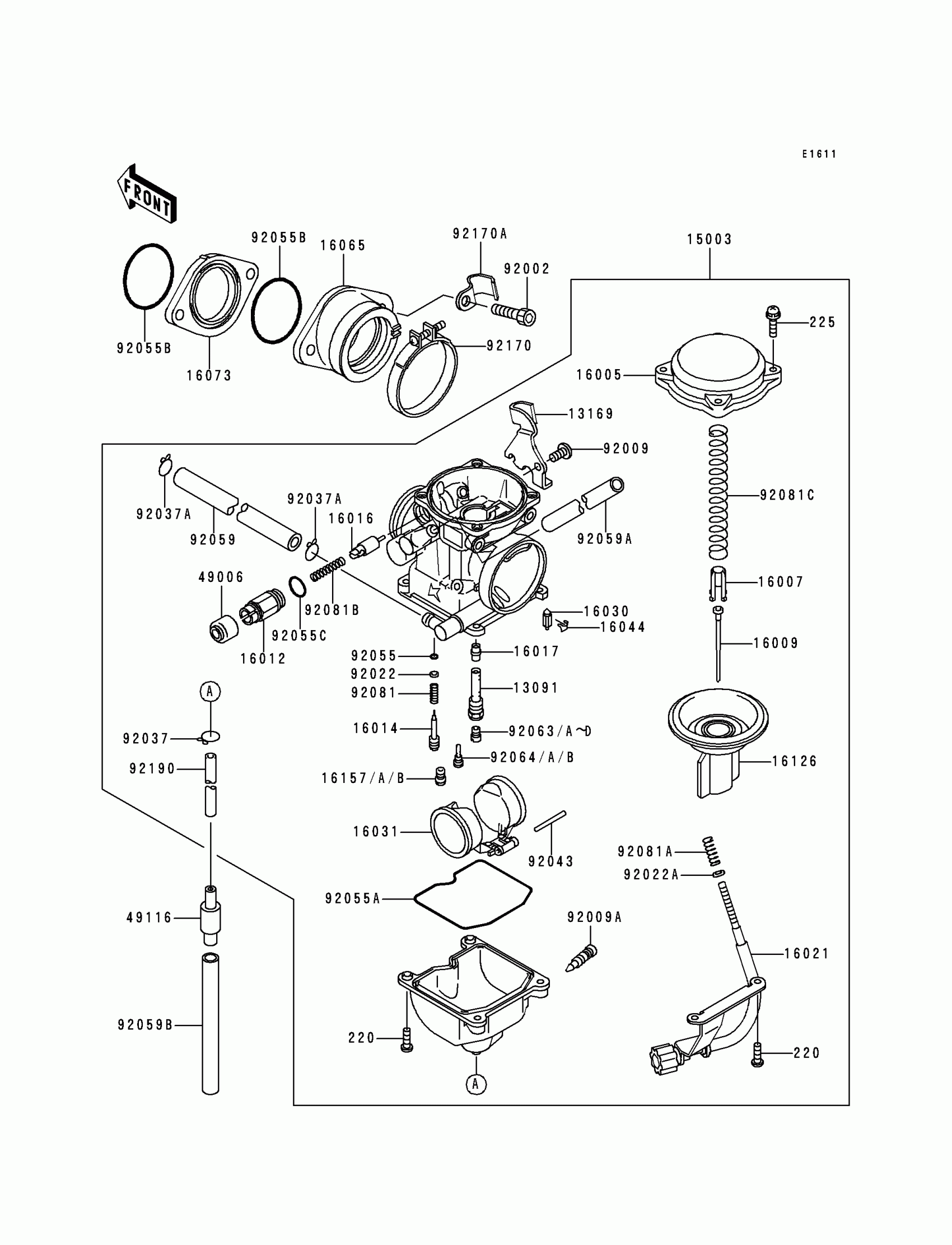

Kawasaki Bayou 300 4X4 Carburetor Diagram

#

Description
Price

13091

HOLDER,NEEDLE JET

13091-1259

Unavailable

13169

PLATE,THROTTLE CABLE

13169-1197

Unavailable

15003

CARBURETOR-ASSY

15003-1075

$762.82

16005

TOP-CHAMBER,MIXING

16005-1056

$72.08

16007

SEAT-SPRING,THROTTLE VALVE

16007-1120

$21.24

16009

NEEDLE-JET,N36W

16009-1503

$45.86

16012

CAP-STARTER PLUNGER

16012-1055

$22.24

16014

SCREW-PILOT AIR

16014-1054

$23.12

16016

PLUNGER,STARTER

16016-1065

$59.67

16017

JET-NEEDLE,#6

16017-1270

$50.08

16021

SCREW-THROTTLE STOP

16021-1115

$122.62

16030

VALVE-FLOAT

16030-1007

$42.48

16031

FLOAT

16031-1056

$47.31

16044

CLAMP,FLOAT VALVE

16044-007

$6.04

16065

HOLDER-CARBURETOR

16065-1177

Unavailable

16073

INSULATOR

16073-1074

Unavailable

16126

VALVE,VACUUM

16126-1199

$204.57

16157

JET-STARTER,#58

16157-1057

$13.39

16157A

JET-STARTER,#60

16157-1058

$15.17

16157B

JET-STARTER,#62

16157-1059

Unavailable

49006

BOOT,STARTER PLUNGER

49006-1165

$9.68

49116

VALVE-ASSY

49116-1126

$16.82

92002

BOLT,SOCKET,6X25

92002-1093

$4.25

92009

SCREW,5X10

92009-1365

$5.61

92009A

SCREW,DRAIN,M6X0.75

92009-1551

$7.54

92022

WASHER,PLAIN

92022-1003

$3.29

92022A

WASHER,PLAIN,STOP SPRING

92022-1480

$4.42

92037

CLAMP,TUBE

92037-1201

$3.51

92037A

CLAMP,TUBE

92037-1531

$4.18

92043

PIN,FLOAT

92043-1207

$10.71

92055

RING-O,PILOT ADJUST

92055-1002

$3.29

92055A

RING-O,FLOAT CHAMBER

92055-1222

$13.15

92055B

RING-O,38MM

92055-1295

$12.40

92055C

RING-O,STARTER PLUNGER

92055-1416

$5.07

92059

TUBE,6.5X11.5X150

92059-1463

$35.72

92059A

TUBE,6.5X9.5X430

92059-1727

Unavailable

92059B

TUBE,7X10X100

92059-1736

$3.40

92063

JET-MAIN,#125

92063-1069

$14.02

220

SCREW-PAN-CROS,4X14

220D0414

$3.51

225

SCREW-PAN-WSP-CROS,4X18

225C0418

Unavailable

92063A

JET-MAIN,#120

92063-1072

$14.02

92063B

JET-MAIN,#122

92063-1073

$14.02

92063C

JET-MAIN,#128

92063-1074

$13.39

92063D

JET-MAIN,#130

92063-1075

$13.39

92064

JET-PILOT,#35

92064-1101

$12.84

92064A

JET-PILOT,#38

92064-1119

$14.36

92064B

JET-PILOT,#40

92064-1125

Unavailable

92081

SPRING,PILOT ADJUST SCREW

92081-1002

$4.14

92081A

SPRING,THROTTLE STOP SCREW

92081-1617

$5.32

92081B

SPRING,PLUNGER

92081-1720

$9.85

92081C

SPRING,VACUUM VALVE

92081-1775

$24.85

92170

CLAMP

92170-1438

$6.85

92170A

CLAMP

92170-1552

$4.92

92190

TUBE,4.5X8X330

92190-1557

$14.64
