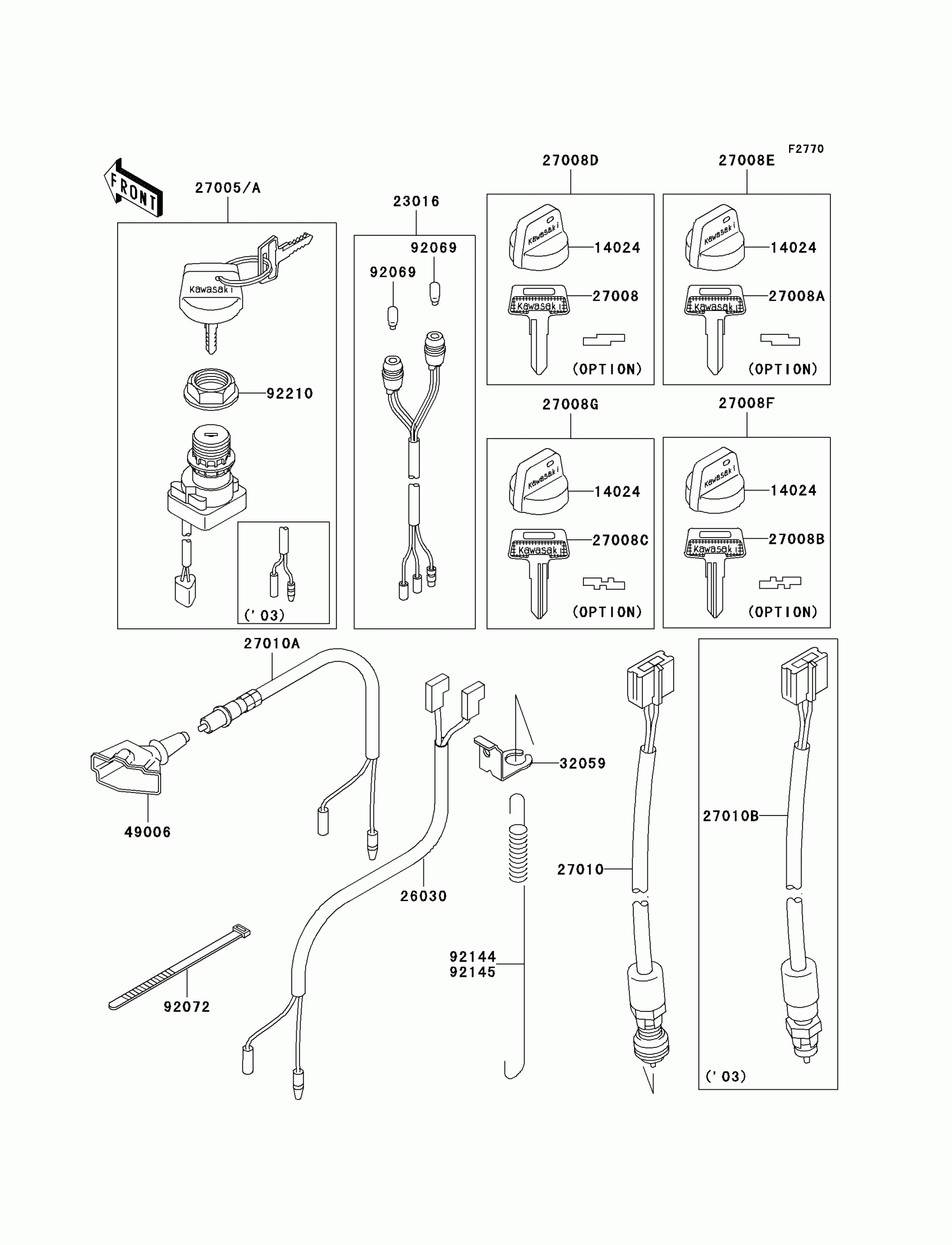

Kawasaki Bayou 300 4X4 (Canada Only) Ignition Switch Diagram

Description

Price

14024

COVER,KEY

14024-1551

$4.72

23016

LAMP-ASSY,NEUTRAL&REVERSE

23016-1083

$51.76

26030

HARNESS

26030-1058

$16.59

27005A

SWITCH-ASSY-IGNITION

27005-1229

$109.54

27008

KEY-LOCK,BLANK

27008-1041

$13.56

27008A

KEY-LOCK,BLANK

27008-1042

$13.56

27008B

KEY-LOCK,BLANK

27008-1043

$13.56

27008C

KEY-LOCK,BLANK

27008-1044

$16.83

27008D

KEY-LOCK,BLANK,W/COVER

27008-1132

$17.51

27008E

KEY-LOCK,BLANK,W/COVER

27008-1133

$17.51

27008F

KEY-LOCK,BLANK,W/COVER

27008-1134

$14.12

27008G

KEY-LOCK,BLANK,W/COVER

27008-1135

$14.12

27010

SWITCH,REAR BRAKE

27010-0009

$36.87

27010A

SWITCH,BRAKE

27010-1294

$35.85

32059

BRACKET-SWITCH,REAR BRAKE

32059-1105

$23.20

49006

BOOT

49006-1261

$21.07

92069

BULB,12V 3W,T7

92069-1020

Unavailable

92072

BAND,L=123

92072-030

$3.81

92145

SPRING,REAR BRAKE SWITCH

92145-0065

$11.83

92210

NUT,IGNITION SWITCH

92210-1109

$4.67
