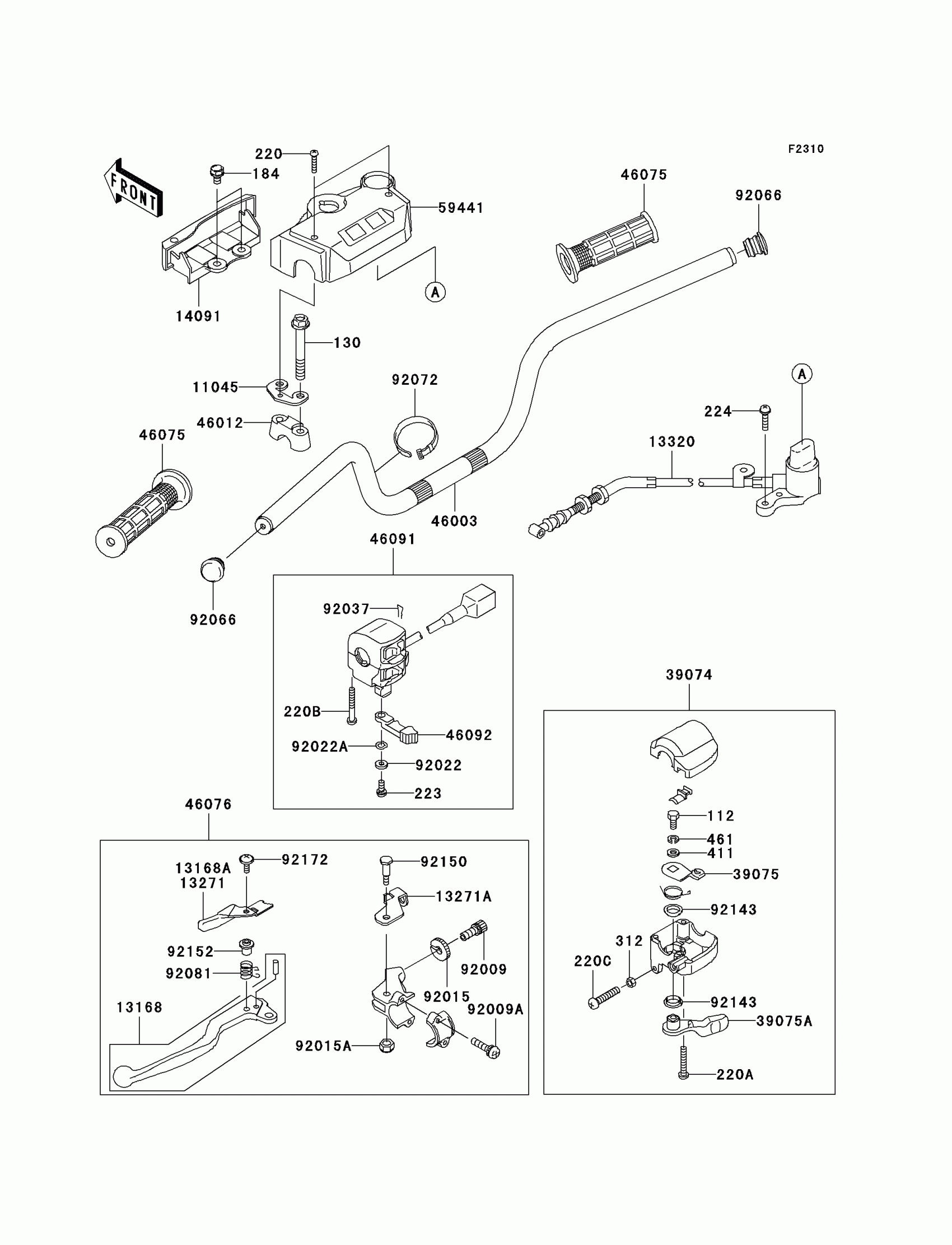

Kawasaki Bayou 300 4X4 (Canada Only) Handlebar Diagram

#

Description
Price

11045

BRACKET,HANDLE COVER,RH

11045-1925

$7.56

13168

LEVER,LH

13168-1672

$36.80

13271

PLATE,LEVER LOCK

13271-0011

$15.54

13271A

PLATE,LOCK

13271-1259

$16.64

13320

LEVER-ASSY,REVERSE

13320-1005

$132.59

14091

COVER,HANDLE

14091-1148

$18.14

39074

LEVER-ASSY-THROTTLE

39074-1055

$80.61

39075

LEVER-THROTTLE,ARM

39075-1054

$11.03

39075A

LEVER-THROTTLE

39075-1059

Unavailable

46003

HANDLE

46003-1570

$60.44

46012

HOLDER-HANDLE

46012-1168

$15.44

46075

GRIP

46075-1056

$20.92

46076

LEVER-ASSY-GRIP,LH

46076-1224

$55.99

46091

HOUSING-ASSY-CONTROL,LH

46091-1462

$238.91

46092

LEVER-GRIP,CHOKE

46092-1149

$4.29

59441

COVER-HANDLE

59441-1077

Unavailable

92009

SCREW,CABLE ADJUST,8MM

92009-1435

$12.40

92009A

SCREW,6X20

92009-1841

$5.61

92015

NUT,CABLE ADJUST LOCK,8MM

92015-1596

$6.75

92015A

NUT

92015-1829

$3.12

92022

WASHER,5MM

92022-1837

$2.31

92022A

WASHER,WAVE,5MM

92022-1838

$2.31

92037

CLAMP,CLIP

92037-1836

$4.68

92066

PLUG

92066-1550

$8.66

92072

BAND,L=149

92072-031

$3.81

92081

SPRING,LOCK RETURN

92081-1358

$4.80

92143

COLLAR

92143-1138

$3.15

92150

BOLT

92150-1420

Unavailable

92152

COLLAR

92152-1176

$3.85

92172

SCREW,5X20

92172-0078

$1.98

112

BOLT-UPSET

112D0614

$0.48

130

BOLT-FLANGED,8X60

130P0860

Unavailable

184

BOLT-UPSET-WP-SMALL

184J0814

Unavailable

220

SCREW-PAN-CROS,4X20

220C0420

Unavailable

220A

SCREW-PAN-CROS,5X30

220C0530

Unavailable

220B

SCREW-PAN-CROS,5X35

220C0535

$1.49

220C

SCREW-PAN-CROSS

220F0630

Unavailable

223

SCREW-PAN-WS-CROS,5X12

223C0512

$3.29

224

SCREW-PAN-WP-CROS,5X20

224B0520

Unavailable

312

NUT-HEX,6MM,BLACK

312C0600

Unavailable

411

WASHER-PLAIN,6MM

411E0600

$1.03

461

WASHER-SPRING

461L0600

$0.66
